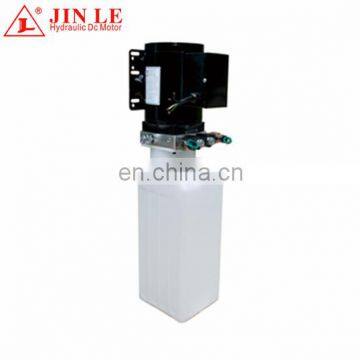

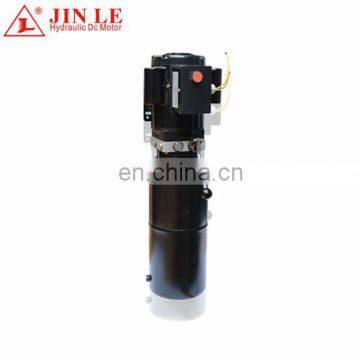

2.2kw Hydraulic Power Unit Auto Lift

General Description
Equipped with the zero leakage double-check solenoid valves, this power unit fulfils the complete separation of the two independent circuits, which are respectively for the main platform and subordinate platform of the double scissors lift. By increasing the number of the solenoid vavles, it is easy to get more independent circuits, which are used to control the corresponding cylinders.


Remark: Please go to page 38 or consult our sales engineer for the different pump displacement, motor power or tank capacity


Special notes

1. The duty of this power unit is S3, i.e., 30 seconds on and 270 seconds off.

2. Clean all the hydraulic parts concerned before mounting the power unit.

3. Viscosity of the hydraulic oil should be 15~68 cst, which should also be clean and free of impurities, N46 hydraulic oil is recommended.

4. This power unit should be mounted vertically.

5. Check the oil level in the tank after the initial running of the power unit.

6. Oil changing is required after the initial 100 operation hours, afterwards once every 3000 hours.

1,sample service: samples can provide preferential.

2,customized services: a variety of motors can be customized according to customer demand.

3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.

Q: Do you accept OEM manufacturing?

A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.

Q: Can we design our own package or print our own logo?

A: Yes! You could! Package will be acording to your requirements?

Q: Could we get th samples?

A: Yes! Definitly! The samples will be sent to you preferentially.
