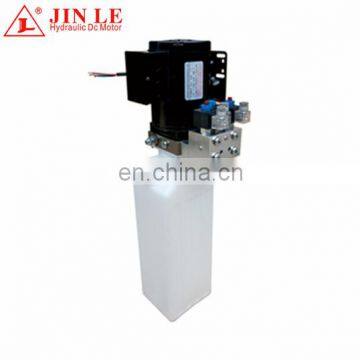

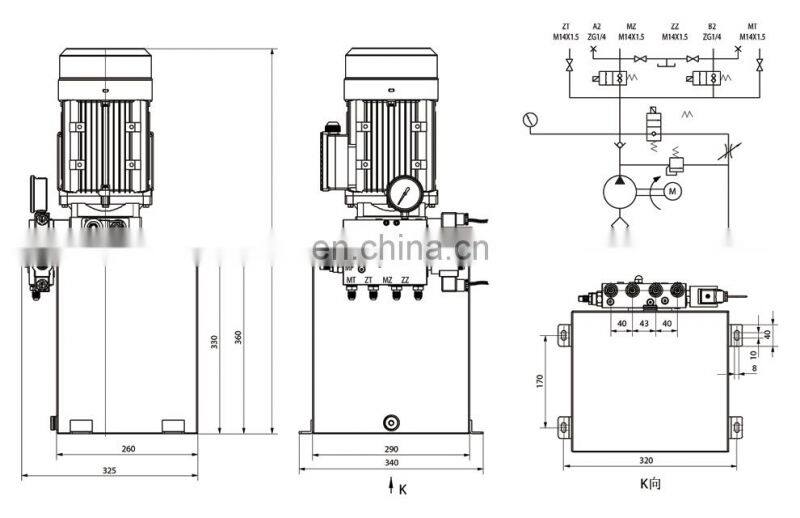

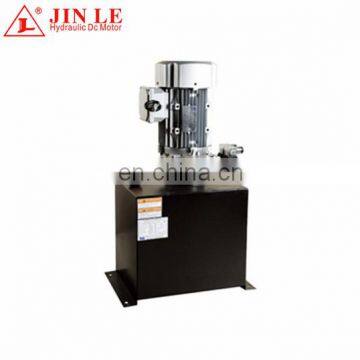

2.2KW hydraulic power unit pump for double-scissors lift
General Description
Equipped with the zero leakage double-check solenoid valves, this power unit fulfils the complete separation of the two independent circuits, which are respectively for the main platform and subordinate platform of the double scissors lift. By increasing the number of the solenoid vavles, it is easy to get more independent circuits, which are used to control the corresponding cylinders.
Model | Motor Volt | Motor power | Rated Speed | Displacement | System pressure | Tank Capacity |
JL15-HPU21 | 220V | 2.2KW | 2800rpm | 2.1ml/r | 25MPa | 25L |
JL15-HPU22 | 380V | 2.2KW | 2800rpm | 2.5ml/r | 25MPa | 25L |
Special notes
1. The duty of this power unit is S3, i.e., 30 seconds on and 270 seconds off.
2. Clean all the hydraulic parts concerned before mounting the power unit.
3. Viscosity of the hydraulic oil should be 15~68 cst, which should also be clean and free of impurities, N46 hydraulic oil is recommended.
4. This power unit should be mounted vertically.
5. Check the oil level in the tank after the initial running of the power unit.
6. Oil changing is required after the initial 100 operation hours, afterwards once every 3000 hours.
Features:
1. The hydraulic power units are offered for industrial, mining, water conservancy, agriculture, electric power, machine tool and construction applications.
2. Standard, compact and custom power units are available.
3. Electric control system (wire or wireless type) is optional.
4. Any kind and size of hydraulic cylinder to matching the system is optional.
5. Hydraulic power units consisting of pumps, reservoirs, relief valves, filters, sight gages, and filler breathers deliver reliable power for hydraulic systems.
Parameters:
| Place of origin | Wuxi, JIangsu,China |
| Brand | Jinle |
| Diameter | As per customers' requirements |
| Port of loading | Shanghai |
| Packing | As per customers' requirements |
| MOQ | 1 set |
| Payment term | T/T, L/C, West Union, Paypal |
| Delivery time | 7-30 days |
1,sample service: samples can provide preferential.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
1. Business Type
a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops
2. Certificates
CE, ISO9001 etc
3. How long could we get the goods?
a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders
4. Quality Control
a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
