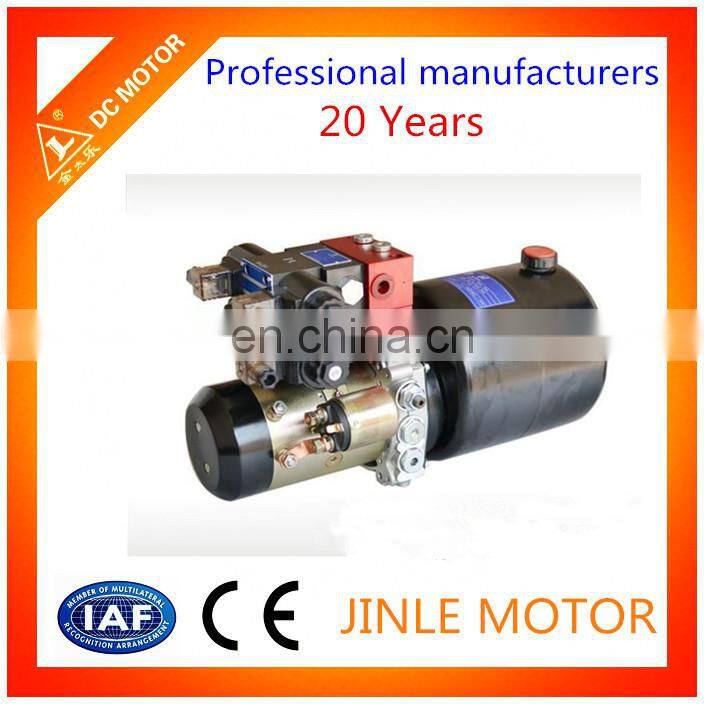

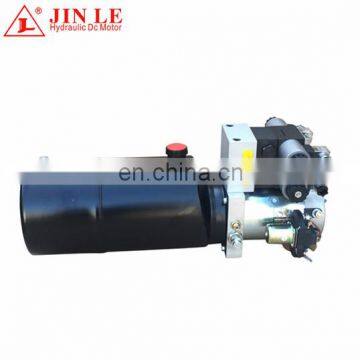

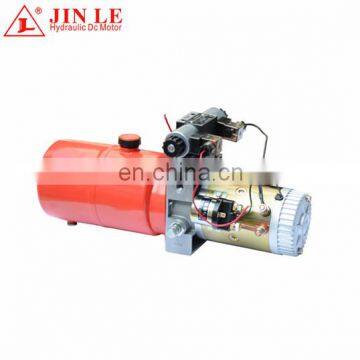

Customized 24V DC Hydraulic Power Unit Double Acting

Specification:

1) Type: JL5-1B2A161

2) Motor Voltage: 24v dc

3) Solenoid Valve Voltage: 24v dc

4) Power: 2KW

5) Displacement: 2.1ml/r

6) Pressure: 22MPa

7) Volume: 6L

8) Length: 558mm

9) Operating Mode: S3

Feature:

1) S3, uncontiuning  working

2) Please make sure no impurity stick to cylinder, oil tube and connections before stalling.

3) It should be stalled horizontally.

4) Hydraulic oil viscosity should be 15-68CST, clean and pure. N46 hydraulic oil is strongly recommended.

5) Please confirm that the amount of oil is adequate when first using.

6) Hydraulic oil should be changed  when up to 100 hours and changed every 3000 hours later.

Description:

1) Different pressure, flow rate, long dwell time, multi-cylinder synchronization and constant pressure can be custom made according to different requirement.

2) Power saving, low oil temperature, low noise, high efficiency and durability.

1,sample service: samples can be provided.

2,customized services: a variety of motors can be customized according to customer demand.

3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
