Home > Electrical & Electronics > Electric Motor > DC Motor > 24 Volt 800w Hydraulic Power Unit Pack With dc Motor
US$ 230 - 250
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
JINLE
Place of Origin:
Jiangsu, China
Type:
Hydraulic Power Units
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double Acting 12v Hydraulic Power UnitUS$ 150 - 200MOQ: 1 Piece -
220V AC Hydraulic Power Units For Double-scissors LiftUS$ 180 - 250MOQ: 1 Piece
-
220V AC Hydraulic Power Units For Double-scissors LiftUS$ 180 - 250MOQ: 1 Piece
-
24V 2KW/12V 1.5KW DC Hydraulic Power Pack for ForkliftUS$ 380 - 410MOQ: 1 Piece
-
220V, 380V Hydraulic Power Unit PackUS$ 380 - 410MOQ: 1 Piece
Brand Name
JINLE
Place of Origin
Jiangsu, China

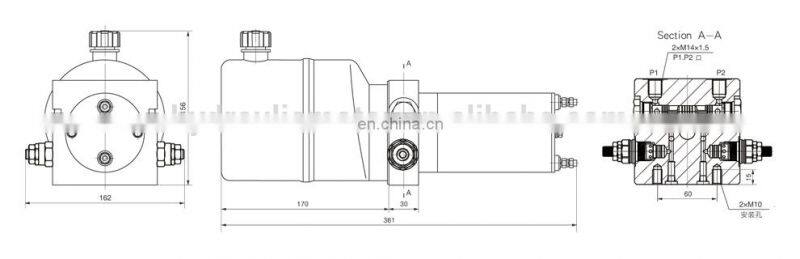

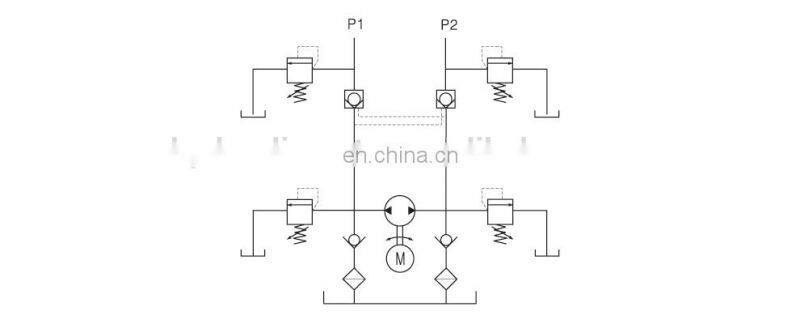

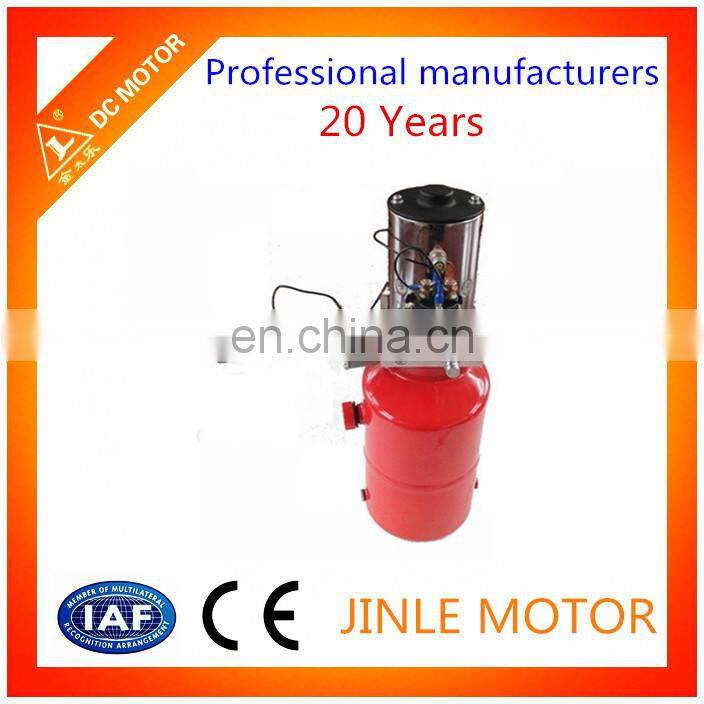

24 volt 800w hydraulic power unit pack with dc motor
Product Description
Specification:
1) Type: JL-EO.63S2T101/1
2) Motor Voltage: 24v dc
3) Volume: 1.4L
4) Power: 800W
5) Displacement: 0.63ml/r
6) Pressure: 17.5MPa
Description:
1) Different pressure, flow rate, long dwell time, multi-cylinder synchronization and constant pressure can be custom made according to different requirement.
2) Power saving, low oil temperature, low noise, high efficiency and durability.
| Name | Type | Voltage | Power(W) | Displacement(ml/r) | Pressure(MPa) | Volume(L) |
| Bi-directional Hydraulic Power Unit | JL-EO.5S1T101/1 | 12v | 800W | 0.5ml/r | 17.5MPa | 1.4L |
| JL-EO.63S2T101/1 | 24v | 0.63ml/r |
FAQ
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get th samples?
A: Yes! Definitly!
