12v hydraulic power unit pack for tipping trailer
- 10000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
Product Details
Brand Name: | JINLE | Place of Origin: | Jiangsu, China | Model Number: | JL5-1A1A161 |
Product Description

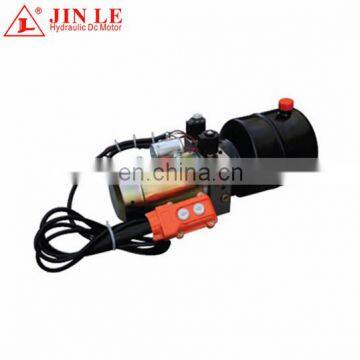

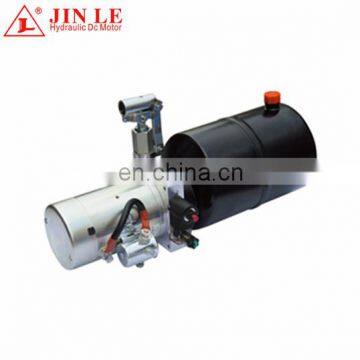

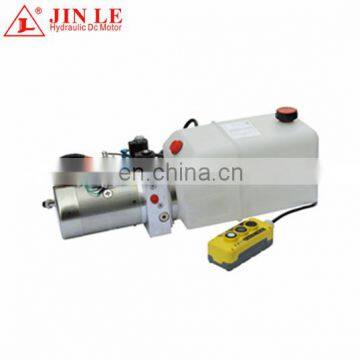

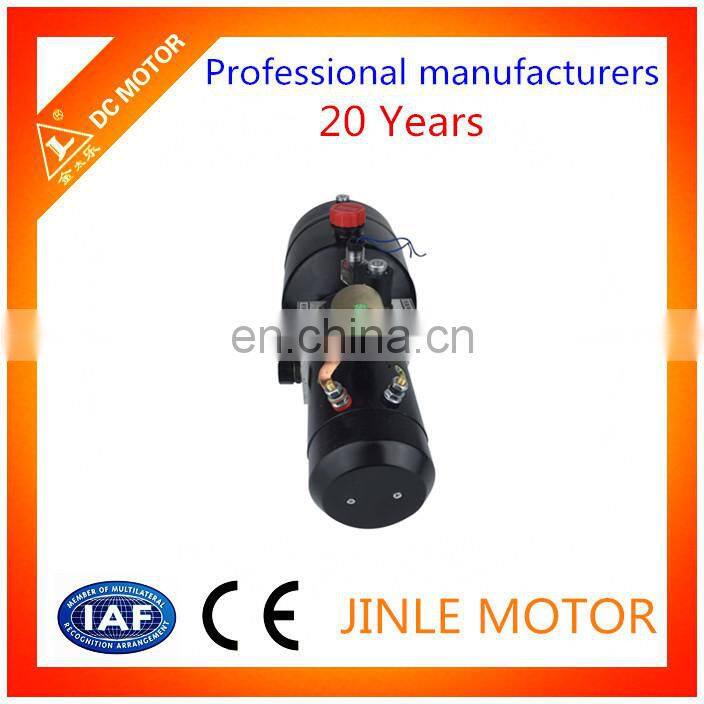

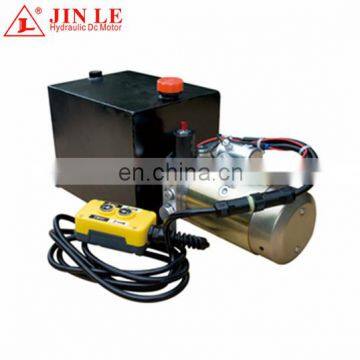

12v hydraulic power unit pack for tipping trailer
Specification:
1) Type: JL5-1A1A161
2) Motor Voltage: 12v dc
3) Solenoid Valve Voltage: 10v dc
4) Power: 2KW
5) Displacement: 2.1ml/r
6) Pressure: 22MPa
7) Volume: 4L
8) Length: 423mm
9) Operating Mode: S3
Feature:
1) S3, uncontiuning working
2) Please make sure no impurity stick to cylinder, oil tube and connections before stalling.
3) It should be stalled horizontally.
4) Hydraulic oil viscosity should be 15-68CST, clean and pure. N46 hydraulic oil is strongly recommended.
5) Please confirm that the amount of oil is adequate when first using.
6) Hydraulic oil should be changed when up to 100 hours and changed every 3000 hours later.
Description:
1) Different pressure, flow rate, long dwell time, multi-cylinder synchronization and constant pressure can be custom made according to different requirement.
2) Power saving, low oil temperature, low noise, high efficiency and durability.
Name | Type | Motor Voltage | Solenoid Valve Voltage | Power (KW) | Speed (RPM) | Displacement (ml/r) | Pressure (MPa) | Volume (L) | Length (mm) |
Hydraulic Power Unit for Tipping Trailer | JL5-1A1A161 | 12v dc | 10v dc | 2KW | 2500RPM | 2.1ml/r | 22MPa | 4L | 423mm |
JL5-1B1A161 | 6L | 558mm | |||||||
JL5-1C1A161 | 8L | 663mm | |||||||
JL5-1A2A161 | 12v dc | 24v dc | 4L | 423mm | |||||
JL5-1B2A161 | 6L | 558mm | |||||||
JL5-1C2A161 | 8L | 663mm |
1,sample service: samples can be provided.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get the samples?
A: Yes! Definitly! The samples will be sent to you.
