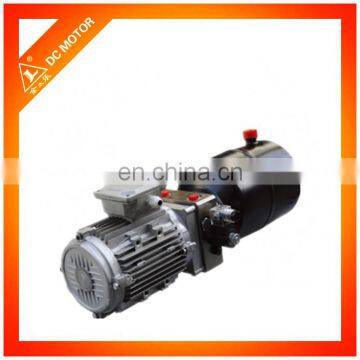

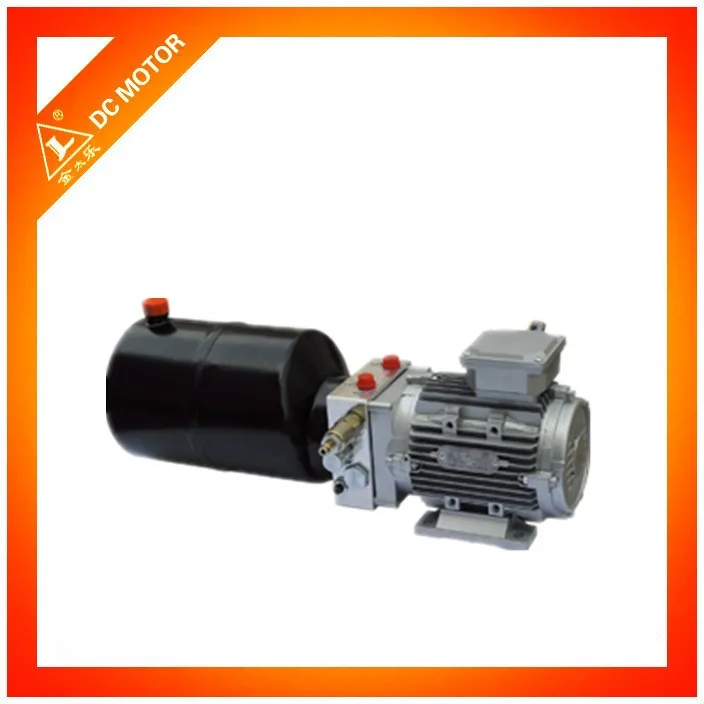

Hydraulic power units for dock leveler AC
motor of 380VAC JL-E2.1A4E81/1
Model | Motor Volt | Motor Power | Displacement | System pressure | Tank Capacity | L(mm) |
JL-E2.1A4E81/1 | 380V AC | 0.75 KW | 2.1ml/r | 16Mpa | 3.5L | 457 |
JL-E2.7B4E81/1 | 2.7ml/r | 14Mpa | 6L | 557 |
General Description:
This hydraulic power pack integrates gear pump, AC motor, multifuctional manifold, cartridge A normally open solenoid valve makes the ramp and lip float with the carriage during loading and unloading, which also offers an emergency stop function while falling.
SPECIAL NOTES:
1.The power unit is of S3 duty, which can only be worked intermittently, ie., 1minute on and 9 minutes off.
2.Clean all the hydraulic parts concerned before mounting the power unit.
3.Viscosity of the hydraulic oil shoud be 15~68 cst, which should also be clean and free of impurities.N46 hydraulic oil is recommended.
4.Check the oil level in the tank after the first start of the power unit.
5.Change the oil after the first 100 hours of running the power unit, then change the oil every 3000 hours.
REMARK:
1.Please feel free to contact me consult for the different pump displacement, motor power or tank capacity.
2.The manual override function is available on request.
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get samples?
A: Yes! Definitly! The samples will be sent to you preferentially.
Q: How much time about the mass production?
A: The lead time of mass production will depend on quantity, production and so on.
Q: Could I customize our products in your factory?
A: Customization is available. You can send me your specifications and drawings.
