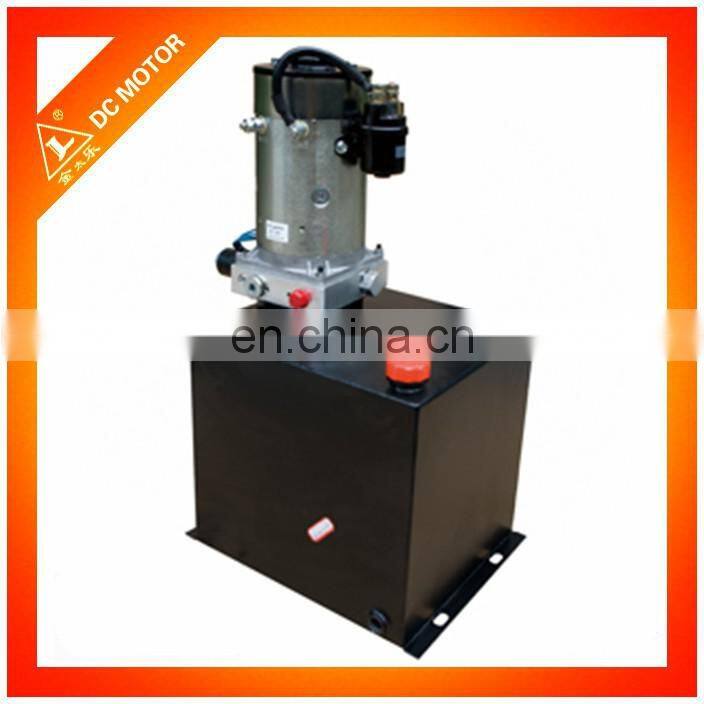

Fork Lift Power Units 12v 1.5kw 1.2ml/r JL-F1.2B1W2/WUDAN1

Fork Lift Power Units 12v 1.5kw 1.2ml/r

 JL-F1.2B1W2/WUDAN1

General Description:

This FORK LIFT POWER UNIT is equiped with a high pressure gear pump, a DC motor, a multi-functional manifold, valves and a tank, ect. This power unit features power up gravity down actions. Start the motor to lift the machine and the lowering movement is activated by the solenoid valve with the lowering speed controlled by the pressure compensated flow control valve.The products are widely used in the industry of logistic devices such as fork lift, mini lift table etc.

SPECIAL NOTES:

1.The duty of this power unit is S3, i.e., 30 seconds on and 270 seconds off.
2.Clean all the hydraulic parts concerned before mounting the power unit.
3.Viscosity of the hydraulic oil shoud be 15~68 cst, which should also be clean and free of impurities.N46 hydraulic oil is recommended.
4.Oil changing is required after the initial 100 operation hours, afterwards once every 3000 hours.
5.The power unit should be mounted horizontally.

REMARK:

1.Please feel free to contact me  consult for the different pump displacement, motor power or tank capacity.

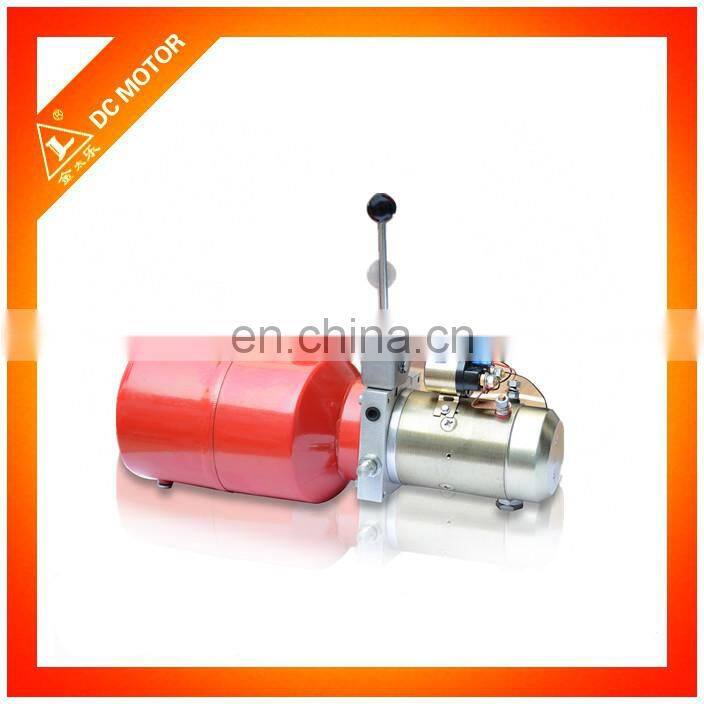

2.The manual override function is available on request.

12V 800W 3650 RPM

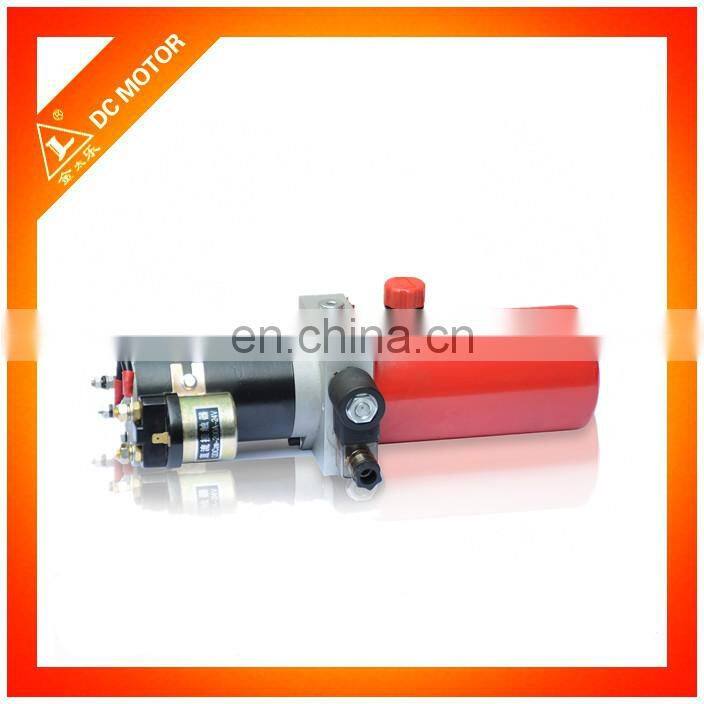

PALLET TRUCK POWER UNITS

1.12v 0.8kw 3650rpm 0.5cc/r

2.12v 0.8kw 3650rpm 0.75cc/r

3.24v 0.8kw 3650rpm 0.5cc/r

4.24v 0.8kw 3650rpm 0.75cc/r

MINI POWER UNITS FOR MEDICAL CARE EQUIPMENT

POWER UNITS FOR MANUAL ELECTRIC STACKER

1.12V 0.8KW 3650RPM 0.5CC/R

2.24V 0.8KW 3650RPM 0.5CC/R

3.12V 1.6KW 2500RPM 1.6CC/R

4.12V 2.1KW 3650RPM 2.1CC/R
