JLNLE Brand 220VAC 380VAC Double-scissors Lift Hydraulic Power Unit Pack

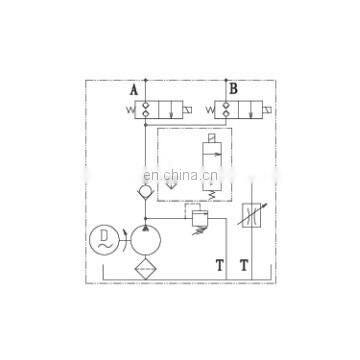

Equiped with a zero leakage double-check solenoid valves, this power unit fulfils the complete separation of the two independent circuits, which are respectively for the main platform and subordinate platform of the double scissors lift. By increasing the number of the solenoid valve, it is easy to get more independent circuits which are used to control the corresponding cylinders.
Model | Motor Info | Pump Displacement | Tank Capacity | Pressure | Mounting | Oil Port |
HPU-29GOEMEVDFOA | 220V 2.2kW 2850rpm 50Hz | 2.1cc/r
| 20L | 20MPa | Vertical | G1/4'' |
HPU-29GPEMEVDGOA | 220V 3.0KW 2850rpm 50Hz | 26MPa | ||||
HPU-29HOEMEVDFOA | 380V 2.2KW 2850rpm 50Hz | 22MPa | ||||
HPU-29HPEMEVDHOA | 380V 3.0KW 2850rpm 50Hz | 28MPa |
Special Notes:
1. The duty of this power unit is S3. ie: 30 seconds on and 270s off.
2. Clean all the hydraulic parts concemed before mounting the power unit.
3. Viscosity of the hydraulic oil should be 15-68 cst, which should also be clean and free of ompurities. N46 hydraulic oil is recommended.
4. This power unit should be mounted horizontal.
5. Check the oil level in the tank after the first start of the power unit.
6. Oil changing is required after the initial 100 operation hours afterwards once every 3000 hours.
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get samples?
A: Yes! Definitly! The samples will be sent to you preferentially.
Q: How much time about the mass production?
A: The lead time of mass production will depend on quantity, production and so on.
Q: Could I customize our products in your factory?
A: Customization is available. You can send me your specifications and drawings.
