24volt 20mpa semi-electric stacker truck mini
hydraulic power pack with hand valve

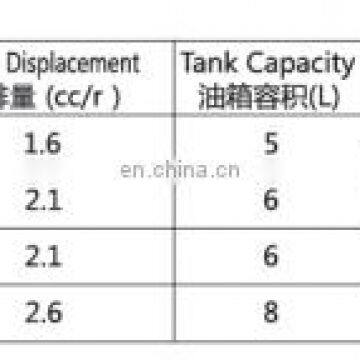

Type | HPU-10BEANHSAFJF |
Motor | 24V 2.2KW 2500RPM |
Pump displacement（cc/r） | 2.6 |
Tank capacity | 8 |
Pressure | 20 |
Mounting | LATERAL HORIZONAL |
Oil port | 3/8"NPT |

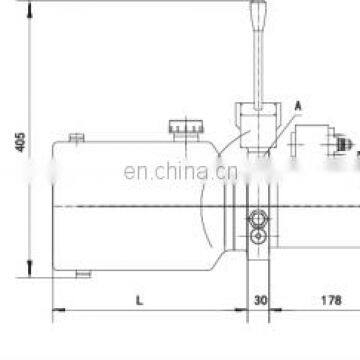

L(mm) | 370MM |
General Description:
This POWER UNITS FOR MANUAL ELECTRIC STACKER is designed exclusively for the forklift, consist of high pressure gear pump,DC motor,multifunctional manifold ,valves ,tank,etc.
The up and down movement are controlled by the level of the mannal release valve ,which is equipped with an electric switch for the motor start . The lowering speed is automatically adjusted by the pressure compensated flow control valve.
SPECIAL NOTES:
1. The duty of this power unit is S3,i .e.,30 seconds on and 270 seconds off.
2.Clean all the hydraulic parts concemed before mounting the power unit.
3. Viscosity of the hydraulic oil should be 15-68 cst,which should also be clean and free of impurities. N46 hydraulicoil is recom-mended.
4.This power units should be mounted horizontal.
5.Check the oil level in the tank after the first start of the power unit.
6.Oil changing is required after the initial 100 operation hours afterwards once every 3000 hours.
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get samples?
A: Yes! Definitly! The samples will be sent to you preferentially.
Q: How much time about the mass production?
A: The lead time of mass production will depend on quantity, production and so on.
Q: Could I customize our products in your factory?
A: Customization is available. You can send me your specifications and drawings.
