CHINA Cheap Electric Stacker 20MPa DC 24 Volt Hydraulic Power Pack Units for Electric Stacker

GENERAL DESCRIPTION:

This POWER UNITS FOR ELECTRIC STACKER is equiped with a high pressure gear pump, a DC motor, a multi-funtional manifold ,values and a tank,etc. This power units features power up gravity down actions. Start  the motor to lift the machine and the lowering movement is activated by the solenoid valve the lowering speed controlled by the pressure compensated flow control valve .The products are widely used in the industry of logistic devices such as fork lift ,mini lift table etc.

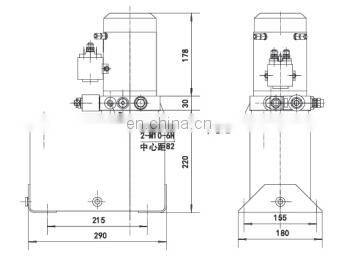

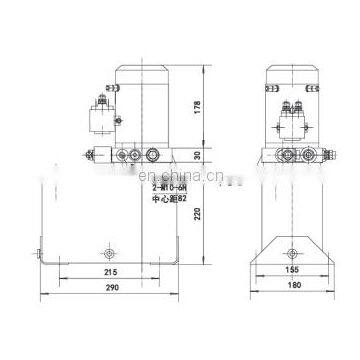

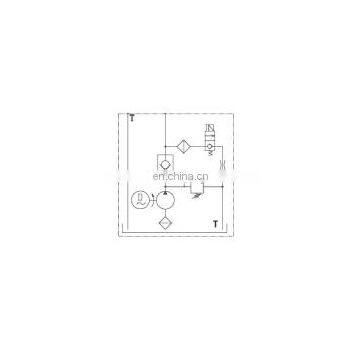

OUTLINE DIMENSION & HYDRAULIC CIRCUIT OPTIONAL :

SPECIAL NOTES:

1. The duty of this power unit is S3,i .e.,30 seconds on and 270 seconds off.

2.Clean all the hydraulic parts concemed before mounting the power unit.

3. Viscosity of the hydraulic oil should be 15-68 cst,which should also be clean and free of impurities. N46 hydraulicoil is recom-mended.

4.This power units should be mounted horizontal.

5.Check the oil level in the tank after the first start of the power unit.

6.Oil changing is required after the initial 100 operation hours afterwards once every 3000 hours.

APPLICATION:

           DC POWER UNITS                         AC POWER UNITS

1.Sample service: samples can provide preferential.

2.customized services: a variety of power units can be customized according to customer demand.

3. aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
