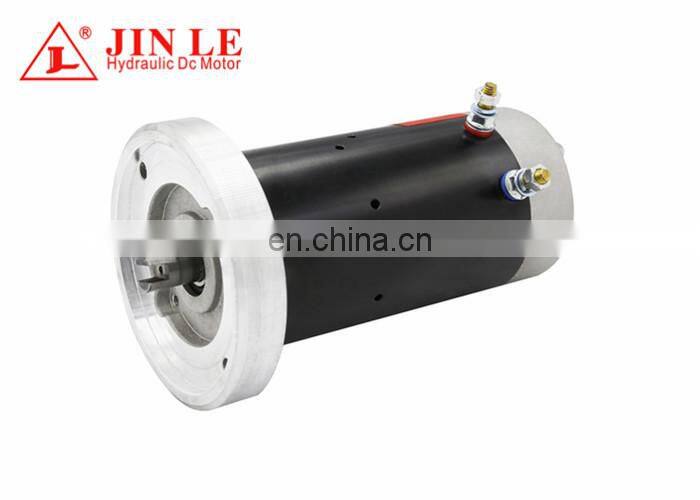

Magnet 1 HP 12V DC Motor
| Type | Voltage | Power | Speed | Rotation | O.D. | Torque | Duty | Weight |
| MA08XXN | 12V | 0.8KW | 3200RPM | BI-DIRECTIONAL | 80mm | 2N.m | S3 | 2.5kg |
Insulation Class: F
Protection Class: IP54
Features of Magnet 1 HP 12V DC Motor:
stable running , high efficiency , low noise
Customized production is available!
Supply for OEM Production!
100% copper wire for rotator and stator
Stable running, high efficiency, low noise
12V, 24V, 48V, 60V, etc. on your request
Output power ranges from 0.5 KW - 4.5 KW.
According to the different requirements of customers, our DC motors have been broadly used in the fork-lift, container van tail-board, van door system, jumping car, snow-sweeper, etc.
Motor’ type can be divided into 12V,24V voltage system.
Unload |
Speed |
5299 RPM |
Current |
26.970 A |
|
Max_Torque |
Torque |
3.350 N.m |
Current |
162.28 A |
|
Speed |
3460 RPM |
|
Efficiency |
62.85% |
|
Output Power |
1215.10 W |
|
Max_Efficiency |
Efficient |
71.11% |
Speed |
4278 RPM |
|
Torque |
1.320 N.m |
|
Current |
68.990 A |
|
Output Power |
592.20 W |
|
Max_Pout |
Efficiency |
62.85% |
Speed |
3460 RPM |
|
Torque |
3.350 N.m |
|
Current |
162.280 A |
|
Output Power |
1215.10 W |
1,sample service: samples can provide.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get the samples?
A: Yes! Definitly! The samples will be sent to you.
