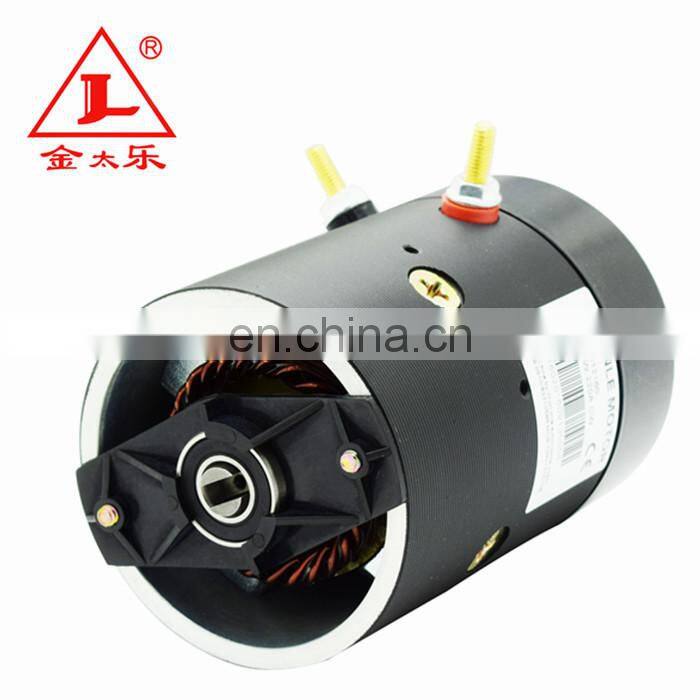

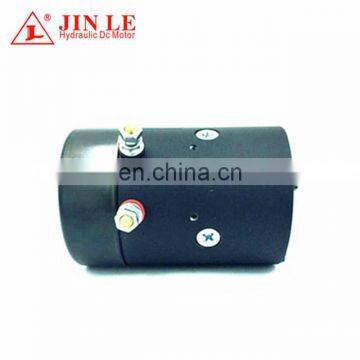

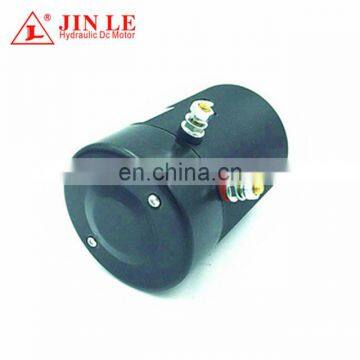

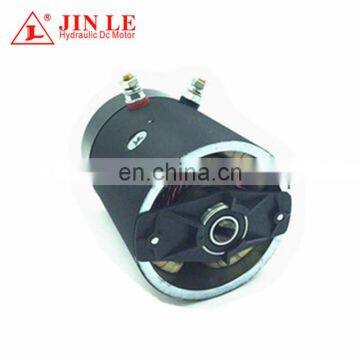

Brush 24 Volt DC Motor 3HP Hydraulic Elektro Motors
Features of Brush 24 Volt DC Motor 3HP Hydraulic Elektro Motors :
100% copper wire
stable running, high efficiency, low noise
good service after sale
12V, 24V, 48V, 60V etc. on your request
Customized production is available!
Supply for OEM Production!
nearly 20 years' manufacturing experience
Specification of Brush 24 Volt DC Motor 3HP Hydraulic Elektro Motors :
| Type | MD24160 |
| Voltage | 24V |
| Power | 2.0KW |
| Speed | 2700RPM |
| Rotation | CW |
| O.D. | 114mm |
| Operating Mode | S3 |
| Insulation Class | F |
| Protection Degree | IP54 |
| Weight | 7.5kg |
| Torque | 6N.m |
Curve for Brush 24 Volt DC Motor 3HP Hydraulic Elektro Motors :
Parameter for Brush 24 Volt DC Motor 3HP Hydraulic Elektro Motors :
| Unload | Speed | 7314 RPM |
| Current | 57.92 A | |
| Max_Torque | Torque | 6.02 N.m |
| Current | 211.93 A | |
| Speed | 2325 RPM | |
| Efficiency | 57.86% | |
| Output Power | 1465.6 W | |
| Max_Efficiency | Efficient | 67.04% |
| Speed | 5947 RPM | |
| Torque | 1.01 N.m | |
| Current | 74.14 A | |
| Output Power | 628.9 W | |
| Max_Pout | Efficiency | 57.86% |
| Speed | 2325 RPM | |
| Torque | 6.02N.m | |
| Current | 211.93 A | |
| Output Power | 1465.6 W |
Welcome to inquire about Brush 24 Volt DC Motor 3HP Hydraulic Elektro Motors .
Hot Products:
12V 1.7KW DC Motor 24V 3.5KW DC Motor 24V 0.8KW DC Motor 48V 2.0KW DC Motor
1,sample service: samples can be provided.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get the samples?
A: Yes! Definitly! The samples will be sent to you.
