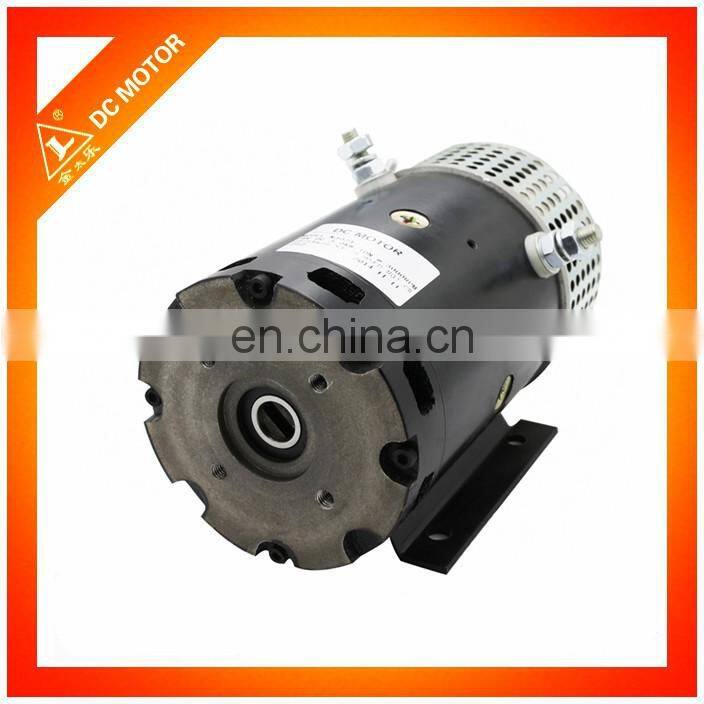

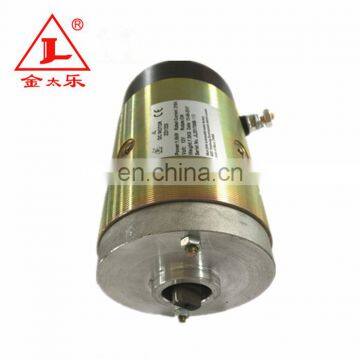

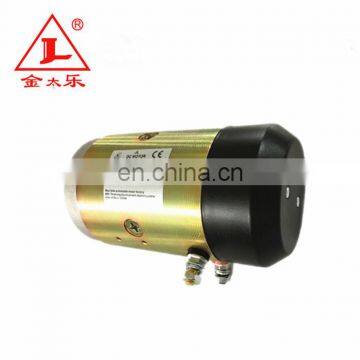

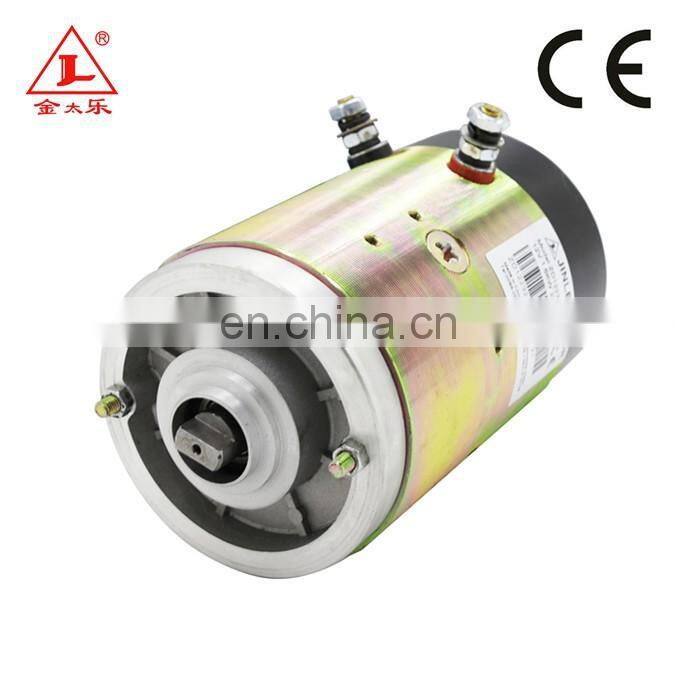

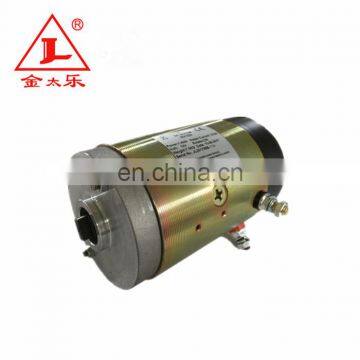

ZD1223 12V 1.6KW DC Motor With Flange
Specification of ZD1223 12V 1.6KW DC Motor With Flange:
1. Type: ZD1223
2. Voltage: 12V
3. Power: 1.6KW
4. Speed: 2350RPM
5. Rotation: CCW

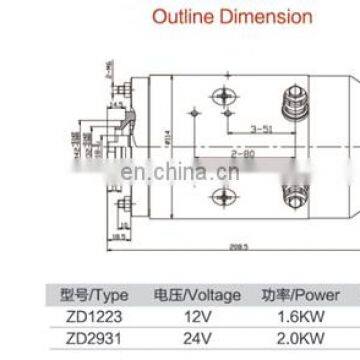

6. O.D. : 114mm/4.5'
7. Insulation: F
8. Protection Class: IP54
9. Operation Mode: S3
10. Color: Customized
Feature of ZD1223 12V 1.6KW DC Motor With Flange:
stable running
high efficiency
low noise
12V, 24V, 48V, etc. on your request
Customized production is available!
Customized color and package is accepted!
Supply for OEM Production!
nearly 20 years' manufacturing experience
We are OEM manufacturer of WAI Group!
| Parameter of ZD1223 12V 1.6KW DC Motor With Flange | |
| Unload | |
| Speed | 7314RPM |
| Current | 57.92A |
| Max_Torque | |
| Torque | 6.02N.m |
| Current | 211.93A |
| Speed | 2325RPM |
| Efficiency | 57.86% |
| Power Out | 1465.6W |
| Max_Efficiency | |
| Efficiency | 67.04% |
| Speed | 5947RPM |
| Torque | 1.01N.m |
| Current | 74.14A |
| Power Out | 628.9W |
| Max_Power Out | |
| Efficiency | 57.86% |
| Speed | 2325RPM |
| Torque | 6.02N.m |
| Current | 211.93A |
| Power Out | 1465.6W |
1,sample service: samples can be provided.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get the samples?
A: Yes! Definitly! The samples will be sent to you.
