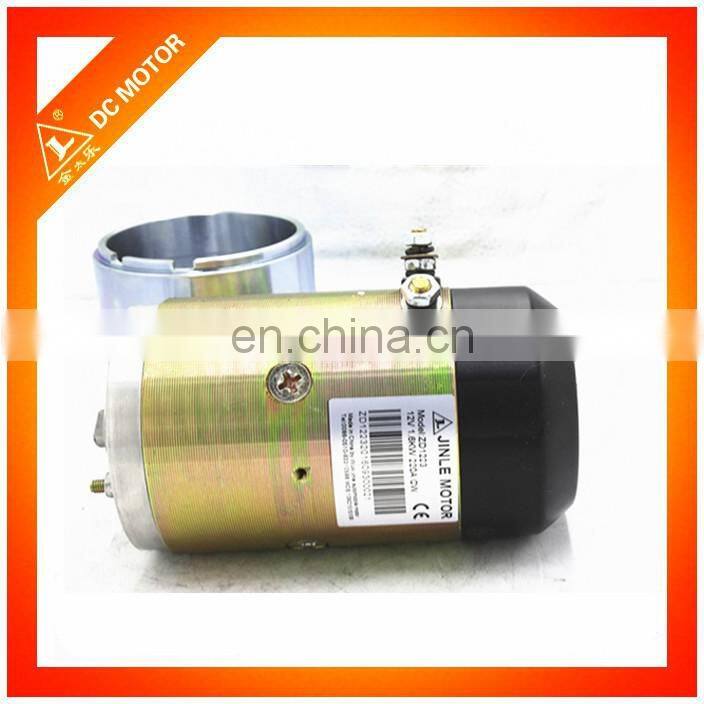

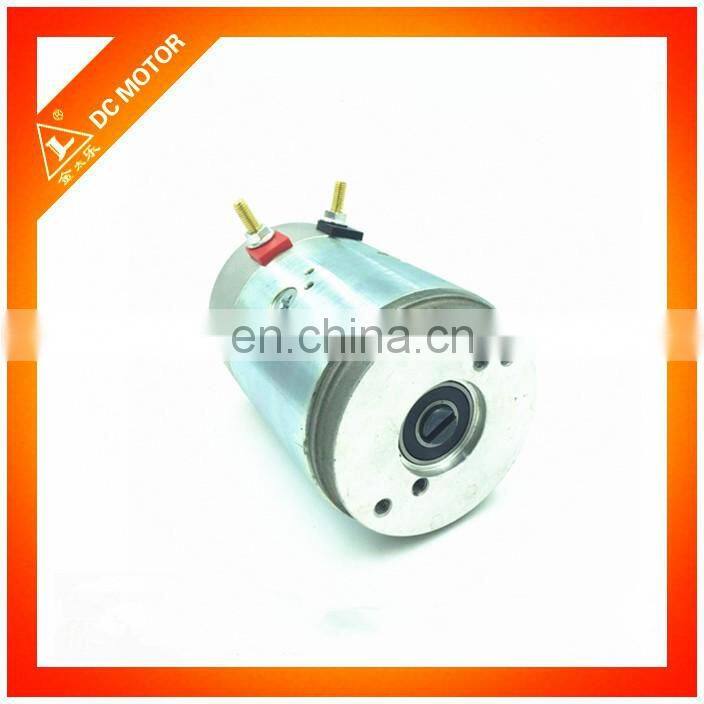

1.6KW 12 Volt DC Motor For Hydraulic Forklift
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | JINLE | Place of Origin | Jiangsu, China | |
| Model Number | ZD1165G/ZD1240 | |||
| Certification | CE | Torque | 6N.m | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Series Wound | |
| Efficiency | IE 4 | Protect Feature | Drip-proof | |
| Voltage(V) | 12V | Output Power | 1.6KW | |
| Continuous Current(A) | Current | Speed(RPM) | 2350RPM | |
| Commutation | Brush |
Product Description
Jinle 1.6KW 12 Volt DC Motor For Hydraulic Forklift
Features of Jinle 1.6KW 12 Volt DC Motor For Hydraulic Forklift:
100% copper wire
stable running, high efficiency, low noise
good service after sale
12V, 24V, 48V, 60V etc. on your request
Customized production is available!
Supply for OEM Production!
nearly 20 years' manufacturing experience

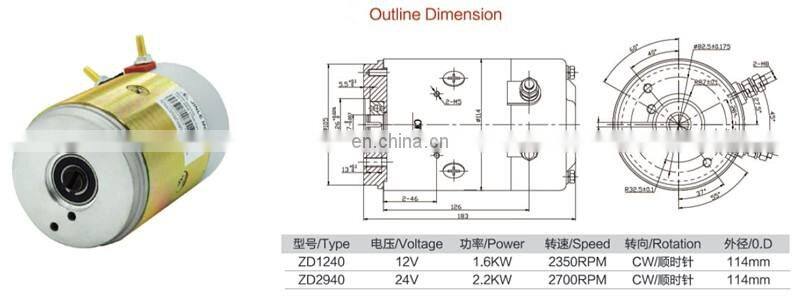

Specification of Jinle 1.6KW 24 Volt DC Motor For Hydraulic Forklift:
| Type | ZD1165G/ZD1240 |
| Voltage | 12V |
| Power | 1.6KW |
| Speed | 2350RPM |
| Rotation | CW |
| O.D. | 114mm |
| Operating Mode | S3 |
| Insulation Class | F |
| Protection Degree | IP54 |
| Weight | 7.5kg |
| Torque | 6N.m |
| Unload | |
| Speed | 7314RPM |
| Current | 57.92A |
| Max_Torque | |
| Torque | 6.00N.m |
| Current | 211.93A |
| Speed | 2325RPM |
| Efficiency | 57.86% |
| Power Out | 1465.6W |
| Max_Efficiency | |
| Efficiency | 67.04% |
| Speed | 5947RPM |
| Torque | 1.01N.m |
| Current | 74.14A |
| Power Out | 628.9W |
| Max_Power Out | |
| Efficiency | 57.86% |
| Speed | 2325RPM |
| Torque | 6.02N.m |
| Current | 211.93A |
| Power Out | 1465.6W |
Welcome to inquire about 1.6KW 24 Volt DC Motor For Hydraulic Forklift.
Hot Products
1,sample service: samples can be provided.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get the samples?
A: Yes! Definitly! The samples will be sent to you.
