Customized 12V 1500W Electric DC Motor
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | JINLE | Place of Origin | Jiangsu, China | |
| Model Number | W9144 | |||
| Certification | CE | Torque | 6N.m | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Series Wound | |
| Efficiency | IE 4 | Protect Feature | Drip-proof | |
| Voltage(V) | 12V | Output Power | 1.5KW | |
| Continuous Current(A) | Current | Speed(RPM) | 2150RPM | |
| Commutation | Brush |
Product Description

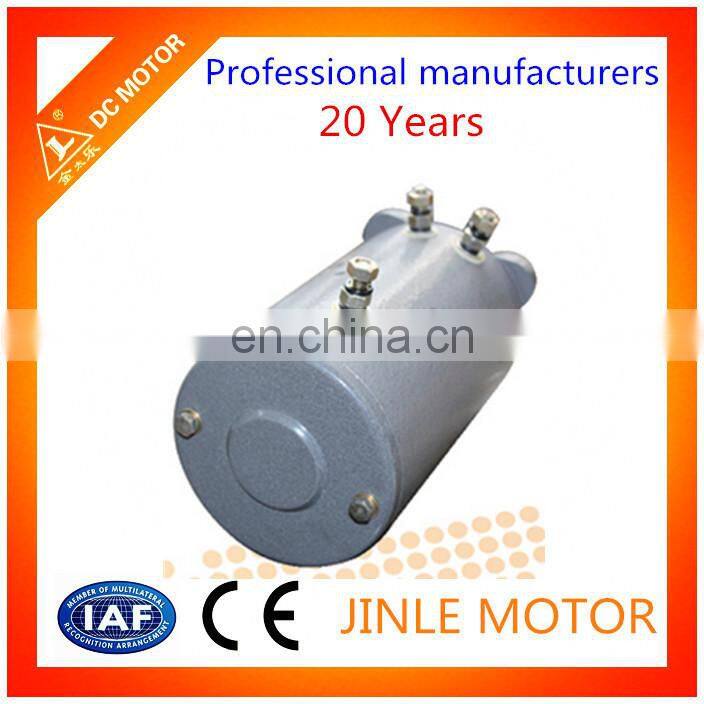

Customized 12V 1500W Electric DC motor
Features:
100% copper wire
stable running, high efficiency, low noise
good service after sale
12V, 24V, 48V, 60V etc. on your request
Customized production is available!
Supply for OEM Production!
nearly 20 years' manufacturing experience
Specification:
1) Type: W9144
2) Voltage: 12V
3) Power: 1.5KW
4) Speed: 2150PM
5) Rotation: BI-DIRECTIONAL
6) O.D. : 114mm
7) Operating mode: S3
8) Insulation Class: F
9) Protection Degree: IP 54
10) Torque: 6N.m
11) Weight: 7.5KG
3-POST winch motor
3/4'' diameter shaft
4.8 horsepower
LESTER 5687N-DBHD
WAI 82-6868-2
Technical Data
Type | Voltage | Power | Speed | Rotaion | O.D. |
W5692 | 12V | 1.6KW | 2500RPM | CW | 114mm |
W6599 | 12V | 1.7KW | 2720RPM | CW | 114mm |
W9789 | 12V | 1.6KW | 2500RPM | CW | 114mm |
ZD4201 | 48V | 2.0KW | 2700RPM | CW | 114mm |
ZD1223 | 12V | 2.0KW | 2800RPM | CW | 114mm |
ZD293 | 24V | 2.2KW | 3000RPM | CW | 114mm |
ZD2930 | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZD1221 | 12V | 2.0KW | 2900RPM | CW | 114mm |
ZD2931 | 24V | 2.0KW | 2600RPM | CW | 114mm |
ZD223A | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZDY211 | 24V | 0.8KW | 3650RPM | CW | 80mm |
ZDY212 | 24V | 0.5KW | 2800RPM | CW | 80mm |
ZDY112 | 12V | 0.5KW | 2300RPM | CW | 80mm |
ZDY113 | 12V | 0.8KW | 3500RPM | CW | 80mm |
ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm |
ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm |
ZD2373 | 24V | 3.0KW | 2850RPM | CW | 125mm |
XQD-3C | 24V | 3.5KW | 3100RPM | CW | 142mm |
Type | Voltage | Power | Speed | Rotaion | O.D. |
W8799 | 12V | 1.5KW | 2400RPM | CCW | 114mm |
W8935 | 12V | 1.5KW | 2460RPM | CCW | 114mm |
W8950 | 24V | 2KW | 2600RPM | CCW | 114mm |
W8999 | 12V | 1.6KW | 2500RPM | CCW | 114mm |
W9405 | 24V | 1.5KW | 2400RPM | CCW | 114mm |
ZD193A | 12V | 1.6KW | 2500RPM | CCW | 114mm |
ZD223A | 24V | 2.2KW | 2700RPM | CCW | 114mm |
ZD293A | 24V | 2.2KW | 3000RPM | CCW | 114mm |
Type | Voltage | Power | Speed | Rotaion | O.D. |
QZD2402 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
QZD2409 | 24V | 0.9KW | 2150RPM | BI-DIRECTIONAL | 126mm |
QZD2411 | 24V | 1.1KW | 2160RPM | BI-DIRECTIONAL | 127mm |
QZD2412 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
QZD2422 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
QZD2445 | 24V | 4.5KW | 1750RPM | BI-DIRECTIONAL | 180mm |
QZD4840 | 48V | 4.8KW | 1750RPM | BI-DIRECTIONAL | 218mm |
QZD4841 | 48V | 4.0KW | 2030RPM | BI-DIRECTIONAL | 170mm |
W8923 | 12V | 1.4KW | 2250RPM | BI-DIRECTIONAL | 114mm |
W8930B | 12V | 1.5KW | 2380RPM | BI-DIRECTIONAL | 114mm |
W8941 | 12V | 1.5KW | 2400RPM | BI-DIRECTIONAL | 114mm |
W9144 | 12V | 1.5KW | 2150RPM | BI-DIRECTIONAL | 114mm |
W7923 | 12V | 1.2KW | 1700RPM | BI-DIRECTIONAL | 114mm |
1,sample service: samples can provide preferential.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get th samples?
A: Yes! Definitly! The samples will be sent to you preferentially.
