Home > Electrical & Electronics > Electric Motor > DC Motor > 12V 1.5KW Hydraulic Pump Motor DC

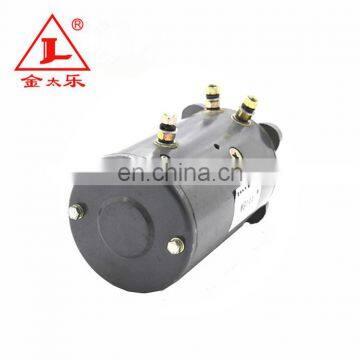

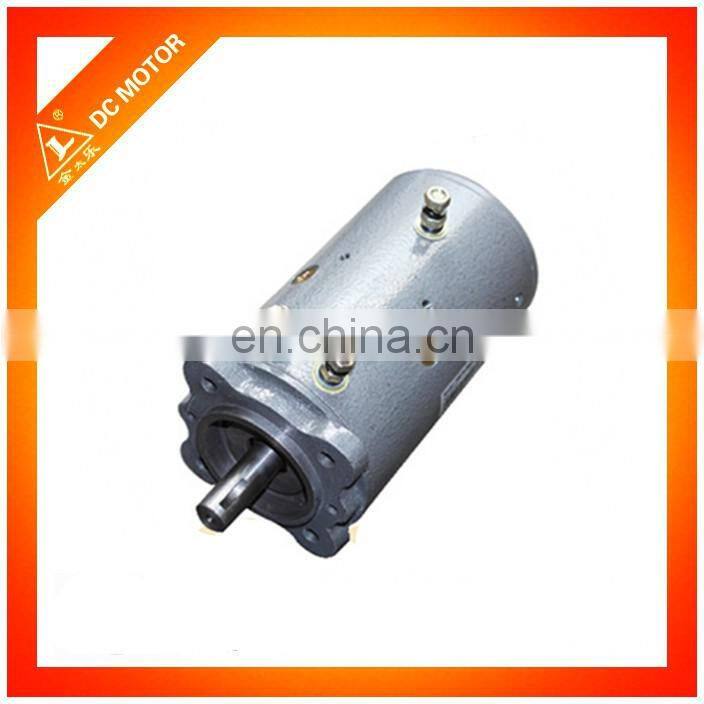

12V 1.5KW Hydraulic Pump Motor DC

Name: 12V 1.5KW Hydraulic Pump Motor DC
Brand: JINLE
SKU: 166313189
Availability: InStock

12V 1.5KW Hydraulic Pump Motor DC thumbnail-1

12V 1.5KW Hydraulic Pump Motor DC thumbnail-2

12V 1.5KW Hydraulic Pump Motor DC thumbnail-3

12V 1.5KW Hydraulic Pump Motor DC thumbnail-4

12V 1.5KW Hydraulic Pump Motor DC thumbnail-5

12V 1.5KW Hydraulic Pump Motor DC photo-1

12V 1.5KW Hydraulic Pump Motor DC photo-2

12V 1.5KW Hydraulic Pump Motor DC photo-3

12V 1.5KW Hydraulic Pump Motor DC photo-4

12V 1.5KW Hydraulic Pump Motor DC photo-5

US$ 37 - 40 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

JINLE

Place of Origin:

Jiangsu, China

Model Number:

W9144

Contact Supplier Request Quote Chat Now

Wuxi Jinle Automobile Motor Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name JINLE

Place of Origin Jiangsu, China

Model Number W9144

Certification CE

Torque 6N.m

Usage Boat, Car, Electric Bicycle, Fan, Home Appliance

Construction Series Wound

Efficiency IE 4

Protect Feature Drip-proof

Voltage(V) 12V

Output Power 1.5KW

Continuous Current(A) Current

Speed(RPM) 2150RPM

Commutation Brush

12V 1.5KW Hydraulic Pump Motor DC

Product Description

Features of 12V 1.5KW Hydraulic Pump Motor DC:

100% copper wire

stable running, high efficiency, low noise

good service after sale

12V, 24V, 48V, 60V etc. on your request

Customized production is available!

Supply for OEM Production!

nearly 20 years' manufacturing experience

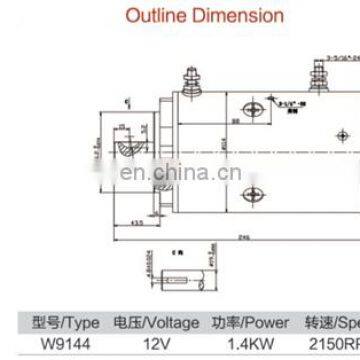

Specification of 12V 1.5KW Hydraulic Pump Motor DC:

1) Type: W9144

2) Voltage: 12V

3) Power: 1.5KW

4) Speed: 2150PM

5) Rotation: BI-DIRECTIONAL

6) O.D. : 114mm

7) Operating mode: S3

8) Insulation Class: F

9) Protection Degree: IP 54

10) Torque: 6N.m

11) Weight: 7.5KG

3-POST winch motor

3/4'' diameter shaft

4.8 horsepower

LESTER 5687N-DBHD

WAI 82-6868-2

Welcome to inquire about 12V 1.5KW Hydraulic Pump Motor DC.

Technical Data

Type	Voltage	Power	Speed	Rotaion	O.D.
W5692	12V	1.6KW	2500RPM	CW	114mm
W6599	12V	1.7KW	2720RPM	CW	114mm
W9789	12V	1.6KW	2500RPM	CW	114mm
ZD4201	48V	2.0KW	2700RPM	CW	114mm
ZD1223	12V	2.0KW	2800RPM	CW	114mm
ZD293	24V	2.2KW	3000RPM	CW	114mm
ZD2930	24V	2.2KW	2700RPM	CW	114mm
ZD1221	12V	2.0KW	2900RPM	CW	114mm
ZD2931	24V	2.0KW	2600RPM	CW	114mm
ZD223A	24V	2.2KW	2700RPM	CW	114mm
ZDY211	24V	0.8KW	3650RPM	CW	80mm
ZDY212	24V	0.5KW	2800RPM	CW	80mm
ZDY112	12V	0.5KW	2300RPM	CW	80mm
ZDY113	12V	0.8KW	3500RPM	CW	80mm
ZD2973A	24V	3.0KW	3100RPM	CW	127mm
ZD2973A	24V	3.0KW	3100RPM	CW	127mm
ZD2373	24V	3.0KW	2850RPM	CW	125mm
XQD-3C	24V	3.5KW	3100RPM	CW	142mm

Type	Voltage	Power	Speed	Rotaion	O.D.
W8799	12V	1.5KW	2400RPM	CCW	114mm
W8935	12V	1.5KW	2460RPM	CCW	114mm
W8950	24V	2KW	2600RPM	CCW	114mm
W8999	12V	1.6KW	2500RPM	CCW	114mm
W9405	24V	1.5KW	2400RPM	CCW	114mm
ZD193A	12V	1.6KW	2500RPM	CCW	114mm
ZD223A	24V	2.2KW	2700RPM	CCW	114mm
ZD293A	24V	2.2KW	3000RPM	CCW	114mm

Type	Voltage	Power	Speed	Rotaion	O.D.
QZD2402	24V	2.2KW	1750RPM	BI-DIRECTIONAL	164mm
QZD2409	24V	0.9KW	2150RPM	BI-DIRECTIONAL	126mm
QZD2411	24V	1.1KW	2160RPM	BI-DIRECTIONAL	127mm
QZD2412	24V	2.2KW	1750RPM	BI-DIRECTIONAL	164mm
QZD2422	24V	2.2KW	1750RPM	BI-DIRECTIONAL	164mm
QZD2445	24V	4.5KW	1750RPM	BI-DIRECTIONAL	180mm
QZD4840	48V	4.8KW	1750RPM	BI-DIRECTIONAL	218mm
QZD4841	48V	4.0KW	2030RPM	BI-DIRECTIONAL	170mm
W8923	12V	1.4KW	2250RPM	BI-DIRECTIONAL	114mm
W8930B	12V	1.5KW	2380RPM	BI-DIRECTIONAL	114mm
W8941	12V	1.5KW	2400RPM	BI-DIRECTIONAL	114mm
W9144	12V	1.5KW	2150RPM	BI-DIRECTIONAL	114mm
W7923	12V	1.2KW	1700RPM	BI-DIRECTIONAL	114mm

Packing

Our Services

1,sample service: samples can be provided.

2,customized services: a variety of motors can be customized according to customer demand.

3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.

FAQ

Q: Do you accept OEM manufacturing?

A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.

Q: Can we design our own package or print our own logo?

A: Yes! You could! Package will be acording to your requirements?

Q: Could we get the samples?

A: Yes! Definitly! The samples will be sent to you.
