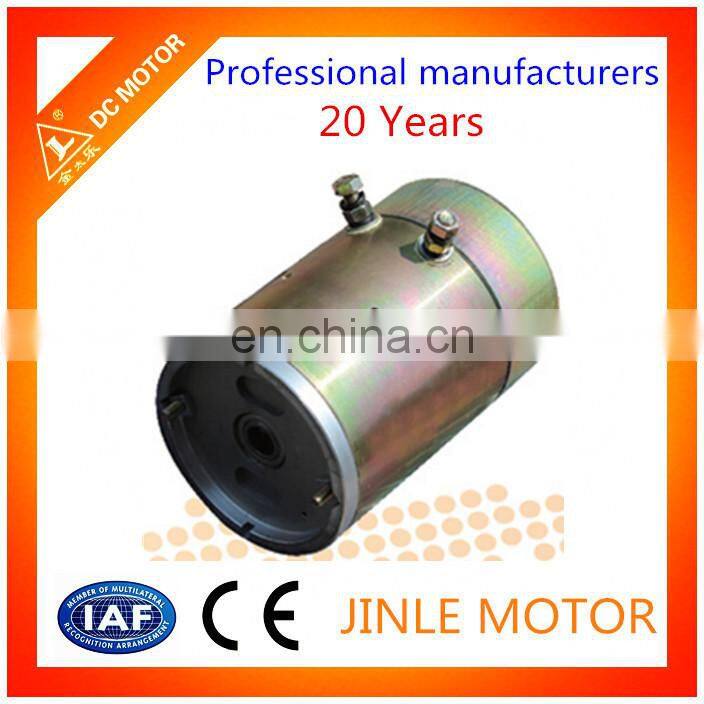

W5692 12V DC Motor Specifications for Hydraulic Pump
Features:
2 post plow motor
double ball bearing
4.5 Inch Motor
Insulated ground
Used on Meyer E-57, E-57H, E-60H, and other applications
100% copper wire
good service after sale
Customized production is available!
Supply for OEM Production!
nearly 20 years' manufacturing experience
Specification:
1) Type: W5692
2) Voltage: 12V
3) Power: 1.6KW
4) Speed: 2500PM
5) Rotation: CW
6) O.D. : 114mm
7) Operating mode: S3
8) Insulation Class: F
9) Protection Degree: IP 54
10) Torque: 6N.m
Replaces: W5690, W-5698,15841
Application: fenner fluid powerpump
Lester 10578
PIC: 160-848A
Technical Data
Type |
Voltage |
Power |
Speed |
Rotaion |
O.D. |
W5692 |
12V |
1.6KW |
2500RPM |
CW |
114mm |
W6599 |
12V |
1.7KW |
2720RPM |
CW |
114mm |
W9789 |
12V |
1.6KW |
2500RPM |
CW |
114mm |
ZD4201 |
48V |
2.0KW |
2700RPM |
CW |
114mm |
ZD1223 |
12V |
2.0KW |
2800RPM |
CW |
114mm |
ZD293 |
24V |
2.2KW |
3000RPM |
CW |
114mm |
ZD2930 |
24V |
2.2KW |
2700RPM |
CW |
114mm |
ZD1221 |
12V |
2.0KW |
2900RPM |
CW |
114mm |
ZD2931 |
24V |
2.0KW |
2600RPM |
CW |
114mm |
ZD223A |
24V |
2.2KW |
2700RPM |
CW |
114mm |
ZDY211 |
24V |
0.8KW |
3650RPM |
CW |
80mm |
ZDY212 |
24V |
0.5KW |
2800RPM |
CW |
80mm |
ZDY112 |
12V |
0.5KW |
2300RPM |
CW |
80mm |
ZDY113 |
12V |
0.8KW |
3500RPM |
CW |
80mm |
ZD2973A |
24V |
3.0KW |
3100RPM |
CW |
127mm |
ZD2973 |
24V |
3.0KW |
3100RPM |
CW |
127mm |
ZD2373 |
24V |
3.0KW |
2850RPM |
CW |
125mm |
XQD-3C |
24V |
3.5KW |
3100RPM |
CW |
142mm |
Type |
Voltage |
Power |
Speed |
Rotaion |
O.D. |
W8799 |
12V |
1.5KW |
2400RPM |
CCW |
114mm |
W8935 |
12V |
1.5KW |
2460RPM |
CCW |
114mm |
W8950 |
24V |
2KW |
2600RPM |
CCW |
114mm |
W8999 |
12V |
1.6KW |
2500RPM |
CCW |
114mm |
W9405 |
24V |
1.5KW |
2400RPM |
CCW |
114mm |
ZD193A |
12V |
1.6KW |
2500RPM |
CCW |
114mm |
ZD223A |
24V |
2.2KW |
2700RPM |
CCW |
114mm |
ZD293A |
24V |
2.2KW |
3000RPM |
CCW |
114mm |
Type |
Voltage |
Power |
Speed |
Rotaion |
O.D. |
QZD2402 |
24V |
2.2KW |
1750RPM |
BI-DIRECTIONAL |
164mm |
QZD2409 |
24V |
0.9KW |
2150RPM |
BI-DIRECTIONAL |
126mm |
QZD2411 |
24V |
1.1KW |
2160RPM |
BI-DIRECTIONAL |
127mm |
QZD2412 |
24V |
2.2KW |
1750RPM |
BI-DIRECTIONAL |
164mm |
QZD2422 |
24V |
2.2KW |
1750RPM |
BI-DIRECTIONAL |
164mm |
QZD2445 |
24V |
4.5KW |
1750RPM |
BI-DIRECTIONAL |
180mm |
QZD4840 |
48V |
4.8KW |
1750RPM |
BI-DIRECTIONAL |
218mm |
QZD4841 |
48V |
4.0KW |
2030RPM |
BI-DIRECTIONAL |
170mm |
W8923 |
12V |
1.4KW |
2250RPM |
BI-DIRECTIONAL |
114mm |
W8930B |
12V |
1.5KW |
2380RPM |
BI-DIRECTIONAL |
114mm |
W8941 |
12V |
1.5KW |
2400RPM |
BI-DIRECTIONAL |
114mm |
W9144 |
12V |
1.5KW |
2150RPM |
BI-DIRECTIONAL |
114mm |
W7923 |
12V |
1.2KW |
1700RPM |
BI-DIRECTIONAL |
114mm |
1,sample service: samples can provide preferential.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get th samples?
A: Yes! Definitly! The samples will be sent to you preferentially.
