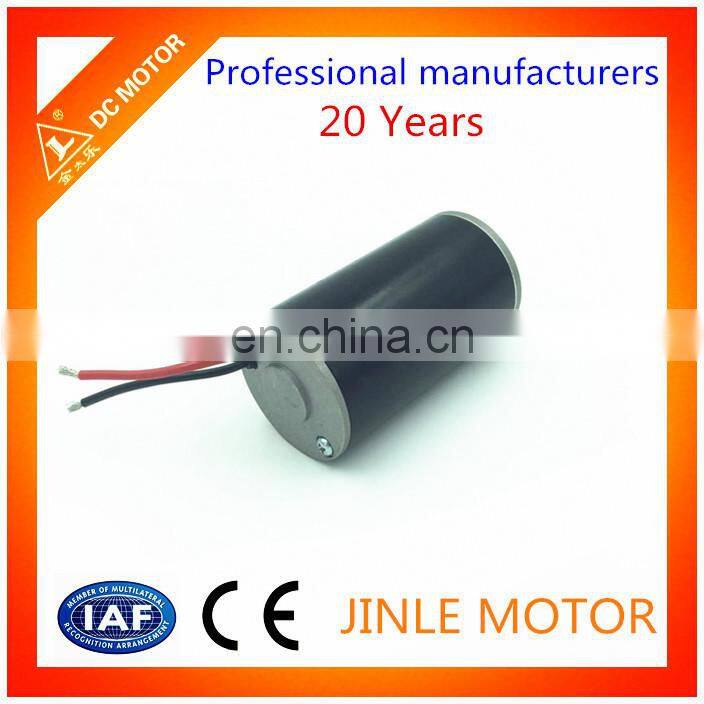

Electric DC Motor 12V 200W S1

Wuxi Jinle Automobile Motor Factory
Electric DC Motor 12V 200W S1 thumbnail-1
Electric DC Motor 12V 200W S1 thumbnail-2
Electric DC Motor 12V 200W S1 thumbnail-3
Electric DC Motor 12V 200W S1 thumbnail-4
Electric DC Motor 12V 200W S1 thumbnail-5
Electric DC Motor 12V 200W S1 thumbnail-6
Electric DC Motor 12V 200W S1 thumbnail-7
Electric DC Motor 12V 200W S1 photo-1
Electric DC Motor 12V 200W S1 photo-2
Electric DC Motor 12V 200W S1 photo-3
Electric DC Motor 12V 200W S1 photo-4
Electric DC Motor 12V 200W S1 photo-5
Electric DC Motor 12V 200W S1 photo-6
Electric DC Motor 12V 200W S1 photo-7
US$ 25 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
JINLE
Place of Origin:
Jiangsu, China
Model Number:
N2463
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name JINLE
Place of Origin Jiangsu, China
Model Number N2463
Certification CE
Torque 0.5N.m
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction Series Wound
Efficiency IE 4
Protect Feature Drip-proof
Voltage(V) 24V
Output Power 200W
Continuous Current(A) Current
Speed(RPM) 3000rpm
Commutation Brush

Electric DC Motor 12V 200W S1

Product Description

Features of Electric DC Motor 12V 200W S1:

100% copper wire

stable running, high efficiency, low noise

good service after sale

12V, 24V, 48V, 60V etc.  on your request

Customized production is available!

Supply for OEM Production!

nearly 20 years' manufacturing experience

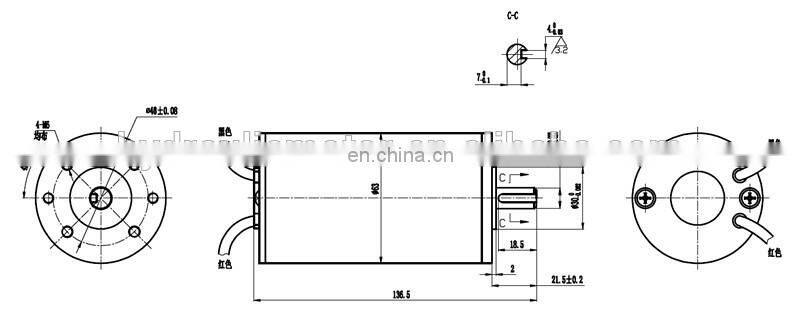

Specification of Electric DC Motor 12V 200W S1:

1) Type: N2463

2) Voltage: 24V

3) Power: 200W

4) Speed: 3000PM

5) Rotation: BI-DIRECTIONAL

6) O.D. : 63mm

7) Operating mode: S1

8) Insulation Class: F

9) Protection Degree: IP 54

(10)Weight: 1KG

Electric DC Motor 12V 200W S1Electric DC Motor 12V 200W S1

 Welcome to inquire about Electric DC Motor 12V 200W S1.



 Technical Data

Type

Voltage

Power

Speed

Rotaion

O.D.

W5692

12V

1.6KW

2500RPM

CW

114mm

W6599

12V

1.7KW

2720RPM

CW

114mm

W9789

12V

1.6KW

2500RPM

CW

114mm

ZD4201

48V

2.0KW

2700RPM

CW

114mm

ZD1223

12V

2.0KW

2800RPM

CW

114mm

ZD293

24V

2.2KW

3000RPM

CW

114mm

ZD2930

24V

2.2KW

2700RPM

CW

114mm

ZD1221

12V

2.0KW

2900RPM

CW

114mm

ZD2931

24V

2.0KW

2600RPM

CW

114mm

ZD223A

24V

2.2KW

2700RPM

CW

114mm

ZDY211

24V

0.8KW

3650RPM

CW

80mm

ZDY212

24V

0.5KW

2800RPM

CW

80mm

ZDY112

12V

0.5KW

2300RPM

CW

80mm

ZDY113

12V

0.8KW

3500RPM

CW

80mm

ZD2973A

24V

3.0KW

3100RPM

CW

127mm

ZD2973

24V

3.0KW

3100RPM

CW

127mm

ZD2373

24V

3.0KW

2850RPM

CW

125mm

XQD-3C

24V

3.5KW

3100RPM

CW

142mm



Type

Voltage

Power

Speed

Rotaion

O.D.

W8799

12V

1.5KW

2400RPM

CCW

114mm

W8935

12V

1.5KW

2460RPM

CCW

114mm

W8950

24V

2KW

2600RPM

CCW

114mm

W8999

12V

1.6KW

2500RPM

CCW

114mm

W9405

24V

1.5KW

2400RPM

CCW

114mm

ZD193A

12V

1.6KW

2500RPM

CCW

114mm

ZD223A

24V

2.2KW

2700RPM

CCW

114mm

ZD293A

24V

2.2KW

3000RPM

CCW

114mm



Type

Voltage

Power

Speed

Rotaion

O.D.

QZD2402

24V

2.2KW

1750RPM

BI-DIRECTIONAL

164mm

QZD2409

24V

0.9KW

2150RPM

BI-DIRECTIONAL

126mm

QZD2411

24V

1.1KW

2160RPM

BI-DIRECTIONAL

127mm

QZD2412

24V

2.2KW

1750RPM

BI-DIRECTIONAL

164mm

QZD2422

24V

2.2KW

1750RPM

BI-DIRECTIONAL

164mm

QZD2445

24V

4.5KW

1750RPM

BI-DIRECTIONAL

180mm

QZD4840

48V

4.8KW

1750RPM

BI-DIRECTIONAL

218mm

QZD4841

48V

4.0KW

2030RPM

BI-DIRECTIONAL

170mm

W8923

12V

1.4KW

2250RPM

BI-DIRECTIONAL

114mm

W8930B

12V

1.5KW

2380RPM

BI-DIRECTIONAL

114mm

W8941

12V

1.5KW

2400RPM

BI-DIRECTIONAL

114mm

W9144

12V

1.5KW

2150RPM

BI-DIRECTIONAL

114mm

W7923

12V

1.2KW

1700RPM

BI-DIRECTIONAL

114mm

Packaging & Shipping

Electric DC Motor 12V 200W S1Electric DC Motor 12V 200W S1

Our Services

1,sample service: samples can be provided.

2,customized services: a variety of motors can be customized according to customer demand.

3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.

FAQ

Q: Do you accept OEM manufacturing?

A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.



Q: Can we design our own package or print our own logo?

A: Yes! You could! Package will be acording to your requirements?



Q: Could we get the samples?

A: Yes! Definitly! The samples will be sent to you.

Certifications

Electric DC Motor 12V 200W S1

contact

Electric DC Motor 12V 200W S1


Electric DC Motor 12V 200W S1
