JINLE 24V Hydraulic dc Motor With Brush

Wuxi Jinle Automobile Motor Factory
JINLE 24V Hydraulic dc Motor With Brush thumbnail-1
JINLE 24V Hydraulic dc Motor With Brush thumbnail-2
JINLE 24V Hydraulic dc Motor With Brush thumbnail-3
JINLE 24V Hydraulic dc Motor With Brush thumbnail-4
JINLE 24V Hydraulic dc Motor With Brush thumbnail-5
JINLE 24V Hydraulic dc Motor With Brush photo-1
JINLE 24V Hydraulic dc Motor With Brush photo-2

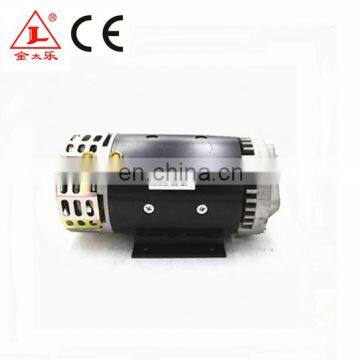

JINLE 24V Hydraulic dc Motor With Brush photo-3
JINLE 24V Hydraulic dc Motor With Brush photo-4
JINLE 24V Hydraulic dc Motor With Brush photo-5
US$ 210 - 220 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
JINLE
Place of Origin:
Jiangsu, China
Model Number:
XQD-3C
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name JINLE
Place of Origin Jiangsu, China
Model Number XQD-3C
Certification CE
Torque 10n.m
Usage Boat, Car, Electric Bicycle, Home Appliance
Construction Series Wound
Efficiency IE 4
Protect Feature Drip-proof
Voltage(V) 24V
Output Power 3.5KW
Continuous Current(A) Current
Speed(RPM) 3100RPM
Commutation Brush

JINLE 24V Hydraulic DC Motor with Brush

Product Description

Features:

stable running

high efficiency

low noise

12V, 24V, 48V, etc.  on your request

Customized production is available!

Supply for OEM Production!

nearly 20 years' manufacturing experience



Specification:

1) Type: XQD-3C

2) Voltage: 24V

3) Power: 3.5KW

4) Speed: 3100PM

5) Rotation: CW

6) O.D. : 142mm

7) Operating mode: S2

8) Insulation Class: F

9) Protection Degree: IP 54

10) Torque: 10N.m

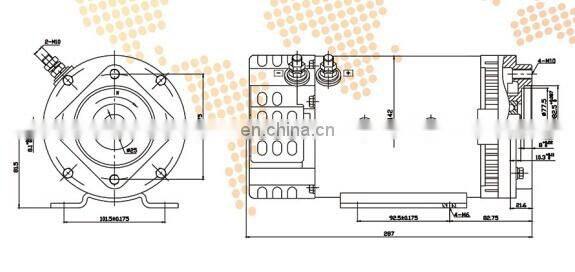

JINLE 24V hydraulic dc motor with brushJINLE 24V hydraulic dc motor with brush

 Technical Data:

Type

Voltage

Power

Speed

Rotaion

O.D.

W5692

12V

1.6KW

2500RPM

CW

114mm

W6599

12V

1.7KW

2720RPM

CW

114mm

W9789

12V

1.6KW

2500RPM

CW

114mm

ZD4201

48V

2.0KW

2700RPM

CW

114mm

ZD1223

12V

2.0KW

2800RPM

CW

114mm

ZD293

24V

2.2KW

3000RPM

CW

114mm

ZD2930

24V

2.2KW

2700RPM

CW

114mm

ZD1221

12V

2.0KW

2900RPM

CW

114mm

ZD2931

24V

2.0KW

2600RPM

CW

114mm

ZD223A

24V

2.2KW

2700RPM

CW

114mm

ZDY211

24V

0.8KW

3650RPM

CW

80mm

ZDY212

24V

0.5KW

2800RPM

CW

80mm

ZDY112

12V

0.5KW

2300RPM

CW

80mm

ZDY113

12V

0.8KW

3500RPM

CW

80mm

ZD2973A

24V

3.0KW

3100RPM

CW

127mm

ZD2973A

24V

3.0KW

3100RPM

CW

127mm

ZD2373

24V

3.0KW

2850RPM

CW

125mm

XQD-3C

24V

3.5KW

3100RPM

CW

142mm
