High Quality ce Certificated 60v dc Motor

High Quality ce Certificated 60v dc Motor thumbnail-1
High Quality ce Certificated 60v dc Motor thumbnail-2
High Quality ce Certificated 60v dc Motor thumbnail-3
High Quality ce Certificated 60v dc Motor thumbnail-4
High Quality ce Certificated 60v dc Motor thumbnail-5
High Quality ce Certificated 60v dc Motor thumbnail-6
High Quality ce Certificated 60v dc Motor thumbnail-7
High Quality ce Certificated 60v dc Motor photo-1
High Quality ce Certificated 60v dc Motor photo-2
High Quality ce Certificated 60v dc Motor photo-3
High Quality ce Certificated 60v dc Motor photo-4
High Quality ce Certificated 60v dc Motor photo-5
High Quality ce Certificated 60v dc Motor photo-6
High Quality ce Certificated 60v dc Motor photo-7
US$ 35 - 48 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Jinle
Place of Origin:
Jiangsu, China
Model Number:
ZD6202
Contact Supplier Request Quote Chat Now
Wuxi Jinle Automobile Motor Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Jinle
Place of Origin Jiangsu, China
Model Number ZD6202
Type Micro Motor
Certification CE
Torque 6N.m
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction Series Wound
Efficiency Other
Continuous Current(A) 120A
Speed(RPM) 2600RPM
Commutation Brush
Product Description

High Quality ce certificated 60v dc motor

High Quality ce certificated 60v dc motor

 High Quality ce certificated 60v dc motorHigh Quality ce certificated 60v dc motor

ce certificated 60v dc motor



1.Specification of ce certificated 60v dc motor :



1.type: ZD6202

2.voltage: 60v

3.power: 2kw

4.Speed:2600rpm

5.Rotation: CW

6.O.D:114MM

Insulation class: H
Protection class: Ip54



Type  Voltage  Power  Speed  Rotation  O.D
ZD1230  12V 1.6KW 2350RPM  CW  114MM
ZD2420  24V 2.2KW 2700RPM  CW  114MM
ZD6202  60V 2.0KW 2600RPM  CW  114MM
ZD7202  24V 2.0KW 2700RPM  CW  114MM

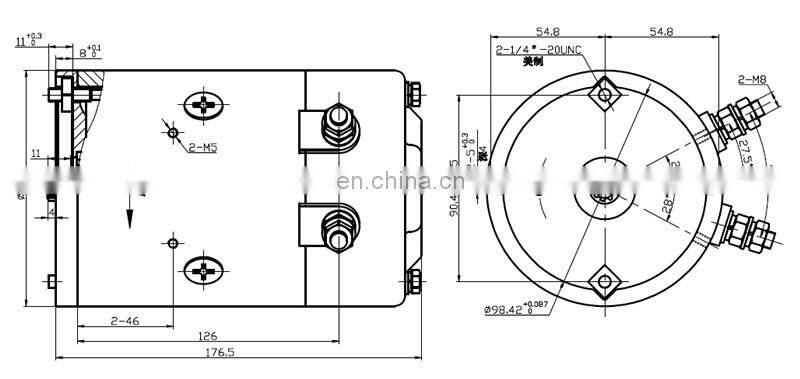

2.Drawings of ce certificated 60v dc motor :

 High Quality ce certificated 60v dc motor

 High Quality ce certificated 60v dc motor



3.parameters of ce certificated 60v dc motor :



Unload :
Speed(n)                                =3373(rpm)
Current(l)                               =7.947(A)
Max_Torque
Torque(M)                             =2.700(N.m)
Current(I)                               =22.620(A)
Speed(n)                                 =2098(RPM)
Eff                                              =43.66%
Output Power(P2)               =592.60(W)
Max_Efficiency:
Eff                                             =44.89%
Speed(n)                                =2221(RPM)
Torque(M)                             =2.340(N.m)
Current(I)                               =20.340(A)
Output Power(P2)              =545.10(W)
Max_Pout:
Eff                                             =43.66%
Speed(n)                                =2098(RPM)
Torque(M)                             =2.700(N.m)
Current(I)                               =22.620(A)
Output Power(P2)              =592.60(W)



4.Features of ce certificated 60v dc motor :



This ce certificated 60v dc motor have following features:

1.low noise,stable running

2.easy brush replacement

3.OEM service available

4.efficient and long continuous running time

5. Customization available

6.robust construction for long and reliable service life

7.100% copper wire

8.12V, 24V, 36V, 48V,60V,72V as per customers' option

9.Factory established in 1996 with nearly 20 years' manufacturing experience



5.We provide you OEM or ODM service:



If you want similar products as ce certificated 60v dc motor ,customization is available.Send me parameters, we will custom for you.

  1. good quality service;

  2. fast delivery service;

  3. safety package service;

  4. fast sample valves preparing service;

  5. good after sale service;

  6. 24 hour online service;



 High Quality ce certificated 60v dc motorHigh Quality ce certificated 60v dc motor

High Quality ce certificated 60v dc motor

High Quality ce certificated 60v dc motor

High Quality ce certificated 60v dc motor

High Quality ce certificated 60v dc motor

Q: Do you accept OEM manufacturing?

A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.



Q: Can we design our own package or print our own logo?

A: Yes! You could! Package will be acording to your requirements?



Q: Could we get the samples?

A: Yes! Definitly! The samples will be sent to you.

High Quality ce certificated 60v dc motor
