Home > Products > Hydraulic dc motors > 72volt 2kw Hydraulic dc Motor for Manual Electric Stacker Power Units
72volt 2kw Hydraulic dc Motor for Manual Electric Stacker Power Units
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Brand Name | Jinle | Place of Origin | Jiangsu, China | |
| Model Number | ZD7202 | Type | Micro Motor | |
| Certification | CE | Torque | 6N.m | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Series Wound | |
| Efficiency | Other | |||
| Continuous Current(A) | 120A | Speed(RPM) | 2600RPM | |
| Commutation | Brush |
Product Description
72volt 2kw hydraulic dc motor for manual electric stacker power units
Type | ZD7202 |
Voltage | 72V |
Power | 2KW |
Speed | 2600RPM |
Rotation | CW |

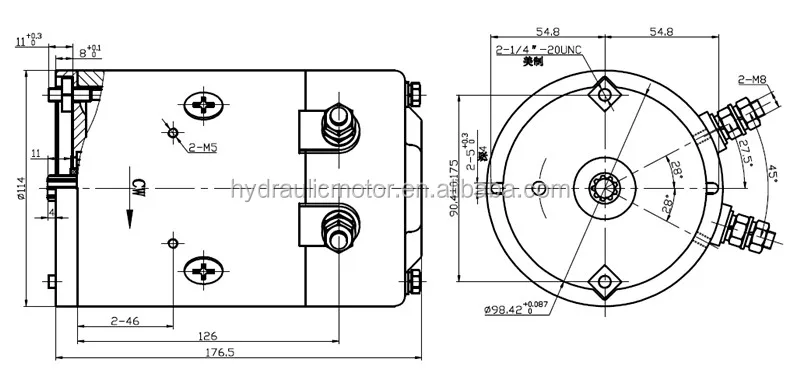

o.d | 114MM |
Operating mode | S3 |
Effiency | IE2 |
Weight | 7.5KG |
Insulation | F |
Protection Class | IP54 |
2.Features 72volt 2kw hydraulic dc motor for manual electric stacker power units
This 72volt 2kw hydraulic dc motor for manual electric stacker power units have following features:
(1)stable running, high efficiency, low noise
(2)good service after sale
(3)12V, 24V, 48V, 60V etc. on your request
(4)Customized production is available!
(5)Supply for OEM Production!
(6)nearly 20 years' manufacturing experience
3.We provide you OEM or ODM service 72volt 2kw hydraulic dc motor for manual electric stacker power units
(1) good quality service;HOT selling hydraulic dc motor 12 volt 1600w ZD193
(2) fast delivery service;(3) safety package service;HOT selling hydraulic dc motor 12 volt 1600w ZD193
(4)fast sample valves preparing service;
(5) good after sale service;HOT selling hydraulic dc motor 12 volt 1600w ZD193
(6)24 hour online service;
4.ParametersSupplementary materia 72volt 2kw hydraulic dc motor for manual electric stacker power units
Current(l) =7.947(A)
Max_Torque
Torque(M) =2.700(N.m)
Current(I) =22.620(A)
Speed(n) =2098(RPM)
Eff =43.66%
Output Power(P2) =592.60(W)
Max_Efficiency:
Eff =44.89%
Speed(n) =2221(RPM)
Torque(M) =2.340(N.m)
Current(I) =20.340(A)
Output Power(P2) =545.10(W)
Max_Pout:
Eff =43.66%
Speed(n) =2098(RPM)
Torque(M) =2.700(N.m)
Current(I) =22.620(A)
Output Power(P2) =592.60(W)
1. Business Type
72volt 2kw hydraulic dc motor for manual electric stacker power units
a. We are a factory, located in Wuxi City, Jiangsu Province, near Shanghai and Nanjing
b. Factory cover an area of 6000 square meters
c. Employees: over 80 in office & workshops
2. Certificates
72volt 2kw hydraulic dc motor for manual electric stacker power units
CE, ISO9001:2000 etc.
3. How long could we get the goods?24v 500w hydraulic manget motor with carbon brush
72volt 2kw hydraulic dc motor for manual electric stacker power units
a. 10-20 days for mass production based on your quantity
b. 5~10 days for Sampe orders
4. We have strict test system in every link of material selection, production and final product, packing according to ISO9001 management.
72volt 2kw hydraulic dc motor for manual electric stacker power units
a. 100% inspection before packing
b. Spot inspection before shipment
