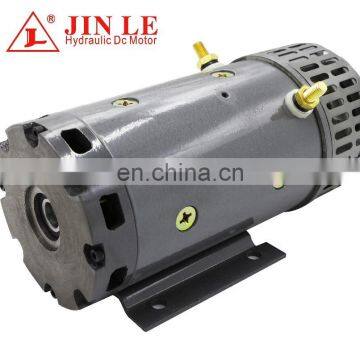

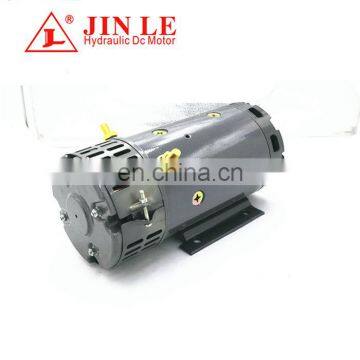

ZD2973 DC MOTOR 24V 4000W With S2 Duty

Wuxi Jinle Automobile Motor Factory
ZD2973 DC MOTOR 24V 4000W With S2 Duty thumbnail-1
ZD2973 DC MOTOR 24V 4000W With S2 Duty thumbnail-2
ZD2973 DC MOTOR 24V 4000W With S2 Duty thumbnail-3
ZD2973 DC MOTOR 24V 4000W With S2 Duty photo-1
ZD2973 DC MOTOR 24V 4000W With S2 Duty photo-2
ZD2973 DC MOTOR 24V 4000W With S2 Duty photo-3
US$ 100 - 130 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Jinle
Place of Origin:
Jiangsu, China
Model Number:
ZD2973
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Jinle
Place of Origin Jiangsu, China
Model Number ZD2973
Type Micro Motor
Certification CE
Torque 10NM
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction Series Wound
Efficiency IE 4
Protect Feature Drip-proof
Voltage(V) 24V
Output Power 4KW
Continuous Current(A) 120A
Speed(RPM) 3100RPM
Commutation Brush



ZD2973 DC MOTOR 24V 4000W With S2 Duty

 We will attend HANNOVER MESSE in 2017 in German, BOOTH No A30-19 . From April 24th-28th.

Welcome your visit

Product Description

Specification:

1. Type: ZD2973

2. Voltage: 24V

3. Power: 4KW

4. Speed: 3100RPM

5. Rotation: CW

6. O.D. : 127mm

7. Insulation: F

8. Protection Class: IP54

9. Operation Mode: S2

10. Color: Customized





ZD2973 DC MOTOR 24V 4000W With S2 DutyZD2973 DC MOTOR 24V 4000W With S2 Duty

ZD2973 DC MOTOR 24V 4000W With S2 Duty

 ZD2973 DC MOTOR 24V 4000W With S2 Duty









125912V50W500RPMCW56mm0.5N.mS2
N246324V200W3000RPMBI-DIRECTIONAL63mm1N.mS1
ZDY125612V200W3000RPMBI-DIRECTIONAL56mm1N.mS3
ZDY21124V0.8KW3650RPMCW80mm2N.mS3
ZDY21224V0.5KW2800RPMCW80mm2N.mS3
ZDY11212V0.5KW2300RPMCW80mm2N.mS3
ZDY11312V0.8KW3500RPMCW80mm2N.mS3
ZDY11812V1.2KW3000RPMCW80mm2N.mS3
ZDY21824V1.2KW3000RPMCW80mm2N.mS3
ZDY41848V800W3000RPMCW80mm2N.mS3
ZDY61860V800W3000RPMCW80mm2N.mS3
MA08XXN12V0.8KW3200RPMBI-DIRECTIONAL80mm2N.mS3
MB08XXN24V0.8KW3000RPMBI-DIRECTIONAL80mm2N.mS3
M108XXN12V0.8KW3200RPMBI-DIRECTIONAL80mm2N.mS3
M208XXN24V0.8KW3000RPMBI-DIRECTIONAL80mm2N.mS3
ZDY211S24V0.8KW3100RPMCCW80mm2N.mS3
ZDY113S12V0.8KW3200RPMCCW80mm2N.mS3







ZDY2480024V800W3200RPMCCW80mm2N.mS3
W569212V1.6KW2500RPMCW114mm6N.mS3
W659912V1.7KW2720RPMCW114mm6N.mS3
W978912V1.6KW2500RPMCW114mm6N.mS3
ZD420148V2.0KW2700RPMCW114mm6N.mS3
ZD4201A48V2.0KW2700RPMCCW114mm6N.mS3
ZD122312V2.0KW2800RPMCW114mm6N.mS3
ZD29324V2.2KW3000RPMCW114mm6N.mS3
ZD293024V2.2KW2700RPMCW114mm6N.mS3
ZD122112V2.0KW2900RPMCW114mm6N.mS3
ZD290024V2.2KW2800RPMCW114mm6N.mS3
ZD293124V2.0KW2600RPMCW114mm6N.mS3
ZD223A24V2.2KW2700RPMCW114mm6N.mS3
ZD223AF24V2.2KW2600RPMCCW114mm6N.mS3
W879912V1.5KW2400RPMCCW114mm6N.mS3
W893512V1.5KW2460RPMCCW114mm6N.mS3
W895024V2KW2600RPMCCW114mm6N.mS3
W899912V1.6KW2500RPMCCW114mm6N.mS3
W940524V1.5KW2400RPMCCW114mm6N.mS3
ZD193A12V1.6KW2500RPMCCW114mm6N.mS3
ZD293A24V2.2KW3000RPMCCW114mm6N.mS3
W892312V1.4KW2250RPMBI-DIRECTIONAL114mm6N.mS3
W8930B12V1.5KW2380RPMBI-DIRECTIONAL114mm6N.mS3
W894112V1.5KW2400RPMBI-DIRECTIONAL114mm6N.mS3
W914412V1.5KW2150RPMBI-DIRECTIONAL114mm6N.mS3
W792312V1.2KW1700RPMBI-DIRECTIONAL114mm6N.mS3
N161212V1.6KW2350RPMCW114mm6N.mS3
N202424V2.2KW2700RPMCW114mm6N.mS3
ZD123012V1.6KW2350RPMCW114mm6N.mS3
ZD242024V2.2KW2700RPMCW114mm6N.mS3
ZD620260V2.0KW2600RPMCW114mm6N.mS3
ZD720272V2KW2600RPMCW114mm6N.mS3
MD1216012V1.6KW2700RPMCW114mm6N.mS3
MD2416024V2.0KW2700RPMCW114mm6N.mS3
ZD124112V1.6KW2350RPMCW114mm6N.mS3
ZD294124V2.2KW2700RPMCW114mm6N.mS3
5636312V1.6KW2350RPMCW114mm6N.mS3
N1612C12V1.6KW2350RPMCW114mm6N.mS3
N2024C24V2.2KW2700RPMCW114mm6N.mS3
W8901P12V1.5KW2220RPMCW114mm6N.mS3
ZD124012V1.6KW2350RPMCW114mm6N.mS3
ZD294024V2.2KW2700RPMCW114mm6N.mS3
ZD120012V1.5KW2500RPMCW114mm6N.mS3
ZD120112V1.6KW2500RPMCW114mm6N.mS3
ZD1225012V2.2KW2800RPMCW114mm6N.mS3
ZD2425024V2.5KW3000RPMCW114mm6N.mS3
