KP16-12 DC Motor 12V 1.6KW Hydraulic

Wuxi Jinle Automobile Motor Factory
KP16-12 DC Motor 12V 1.6KW Hydraulic thumbnail-1
KP16-12 DC Motor 12V 1.6KW Hydraulic thumbnail-2
KP16-12 DC Motor 12V 1.6KW Hydraulic thumbnail-3
KP16-12 DC Motor 12V 1.6KW Hydraulic photo-1
KP16-12 DC Motor 12V 1.6KW Hydraulic photo-2
KP16-12 DC Motor 12V 1.6KW Hydraulic photo-3
US$ 35 - 40 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Jinle
Place of Origin:
Jiangsu, China
Model Number:
ZD193
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Jinle
Place of Origin Jiangsu, China
Model Number ZD193
Type Micro Motor
Certification CE
Torque 6NM
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction Series Wound
Efficiency IE 4
Protect Feature Drip-proof
Voltage(V) 12V
Output Power 1.6KW
Continuous Current(A) 120A
Speed(RPM) 2600RPM
Commutation Brush

KP16-12 DC Motor 12V 1.6KW Hydraulic



 We will attend HANNOVER MESSE in 2017 in German, BOOTH No A30-19 . From April 24th-28th.

Welcome your visit!



Product Description





Features of 1.6KW 12V DC Electric Motor:

100% copper wire

stable running, high efficiency, low noise

good service after sale

12V, 24V, 48V, 60V etc.  on your request

Customized production is available!

Supply for OEM Production!

nearly 20 years' manufacturing experience

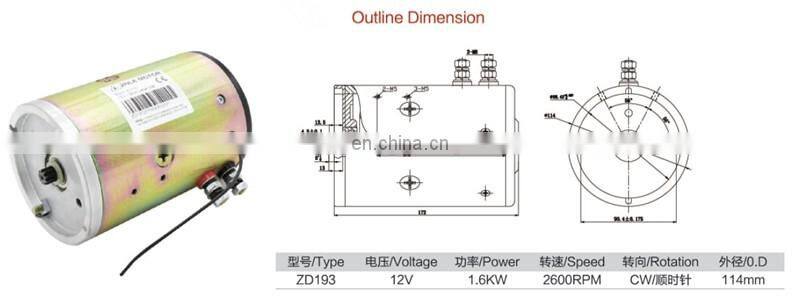

Specification of 1.6KW 12V DC Electric Motor:

TypeZD193
Voltage12V
Power1.6KW
Speed2600RPM
RotationCW
O.D.114mm
Operating ModeS3
Insulation ClassF
Protection DegreeIP54
Weight7.5kg
Torque6N.m

 KP16-12 DC Motor 12V 1.6KW HydraulicKP16-12 DC Motor 12V 1.6KW HydraulicKP16-12 DC Motor 12V 1.6KW Hydraulic
















Our Services



1) Low noise
2) Easy brush replacement
3) OEM service avaliable
4) Efficient and long continuous running time

5) Customization available

6) Robust construction for long and reliable service life
7) 100% copper wire

8) 12V, 24V, 36V, 48V,60V,72V as per customers' option

9) Factory established in 1996 with nearly 20 years' manufacturing experience







Certifications















Company Information



Our factory was established in 1996,  professional in forklift motors, hydraulic power unit motors.



We have nearly 20 years' manufacturing experience with a strong team of 30 engineers for development and research. The motors' annual output has been more than 200,000 sets.



So far, we are the only designated OEM hydraulic power unit motor supplier in China for US WAI Company, OEM forklift motor supplier for Korea SOOSUNG. Also, we cooperated Korea KOPACK and HELI in China.



 We have been attentively persisting in manufacturing motors for 20 years.

 KP16-12 DC Motor 12V 1.6KW Hydraulic



 Other models you maybe interested in:

You can click on the picture then have a detailed description:

      Permanent Magnet Motors                                                              Direct drive motors:

   KP16-12 DC Motor 12V 1.6KW Hydraulic                    KP16-12 DC Motor 12V 1.6KW Hydraulic



 pallet truck hydraulic power units :                                          vechicle tail gate power unit

KP16-12 DC Motor 12V 1.6KW Hydraulic                KP16-12 DC Motor 12V 1.6KW Hydraulic









FAQ



1. Business Type

a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops



2. Certificates

CE, ISO9001 etc



3. How long could we get the goods?

a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders



4. Quality Control

a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment

 KP16-12 DC Motor 12V 1.6KW Hydraulic
