Home > Products > Hydraulic dc motors > ZD1240 12V 1.6KW DC Motor With Customization Service
ZD1240 12V 1.6KW DC Motor With Customization Service
- 1000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
-
ZD2940 Hydraulic 24Volt 2.2KW DC Motor for electric tailgate of truck
-
ZD223A DC Motor Hydraulic For Lift and Hydraulic Power Unit
-
ZD293A Jinle Automobile Motor Factory 24V 2.2KW DC Motor
-
ZD1201 Hydraulic DC Motor 12V 1.6KW With CW Rotation
-
ZD24250 Hydraulic 24V 2.5KW DC Motor With CW Rotation
-
1HP 12V dc motor hydraulic with permanent magnet
Product Details
| Brand Name: | Jinle | Place of Origin: | Jiangsu, China | Model Number: | ZD1240 |
| Certification: | CE | Torque: | 6NM | ||
| Usage: | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction: | Series Wound | Efficiency: | IE 4 |
| Protect Feature: | Drip-proof | Voltage(V): | 12V | Output Power: | 1.6KW |
| Continuous Current(A): | 120A | Speed(RPM): | 2350RPM | Commutation: | Brush |
Product Description

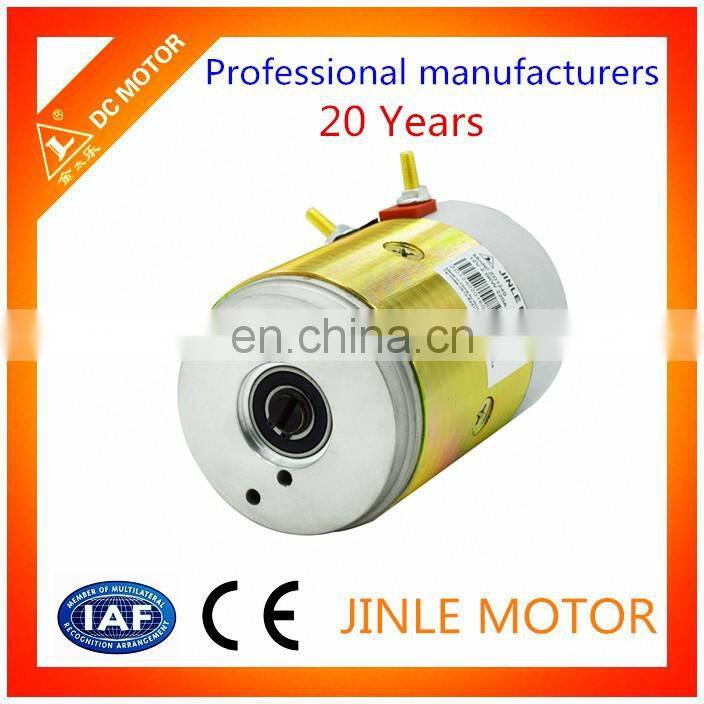

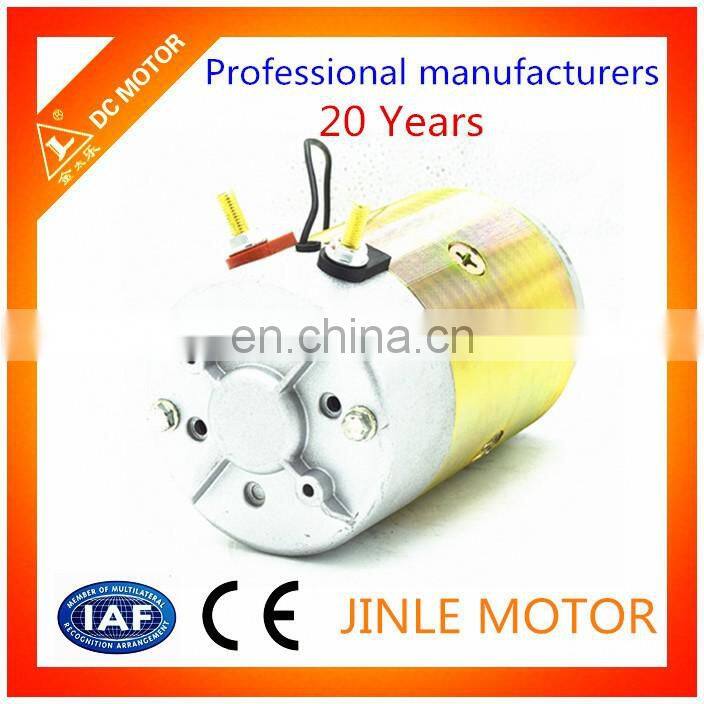

ZD1240 12V 1.6KW DC Motor With Customization Service
We will attend HANNOVER MESSE in 2017 in German, BOOTH No HALL020,A30-19 . From April 24th-28th.
Welcome your visit!
Specification:
1. Type: ZD1240
2. Voltage: 12V
3. Power: 1.6KW
4. Speed: 2350RPM
5. Rotation: CCW

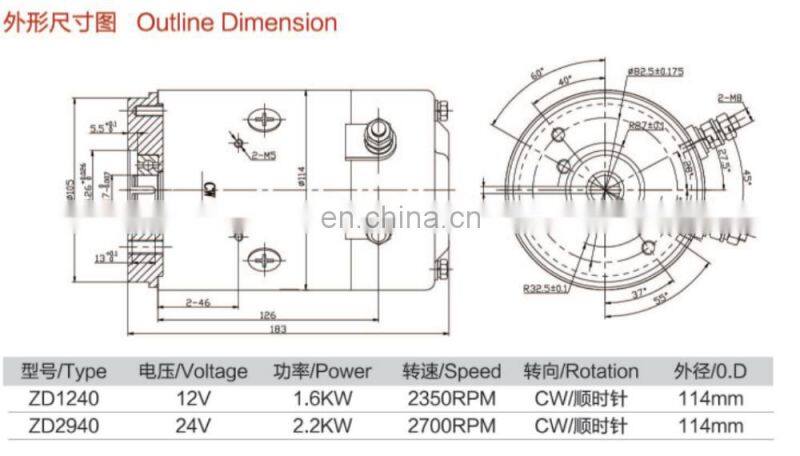

6. O.D. : 114mm/4.5'
7. Insulation: F
8. Protection Class: IP54
9. Operation Mode: S3
10. Color: Customized
Feature:
stable running
high efficiency
low noise
12V, 24V, 48V, etc. on your request
Customized production is available!
Customized color and package is accepted!
Supply for OEM Production!
nearly 20 years' manufacturing experience
We are OEM manufacturer of WAI Group!
| 1259 | 12V | 50W | 500RPM | CW | 56mm | 0.5N.m | S2 |
| N2463 | 24V | 200W | 3000RPM | BI-DIRECTIONAL | 63mm | 1N.m | S1 |
| ZDY1256 | 12V | 200W | 3000RPM | BI-DIRECTIONAL | 56mm | 1N.m | S3 |
| ZDY211 | 24V | 0.8KW | 3650RPM | CW | 80mm | 2N.m | S3 |
| ZDY212 | 24V | 0.5KW | 2800RPM | CW | 80mm | 2N.m | S3 |
| ZDY112 | 12V | 0.5KW | 2300RPM | CW | 80mm | 2N.m | S3 |
| ZDY113 | 12V | 0.8KW | 3500RPM | CW | 80mm | 2N.m | S3 |
| ZDY118 | 12V | 1.2KW | 3000RPM | CW | 80mm | 2N.m | S3 |
| ZDY218 | 24V | 1.2KW | 3000RPM | CW | 80mm | 2N.m | S3 |
| ZDY418 | 48V | 800W | 3000RPM | CW | 80mm | 2N.m | S3 |
| ZDY618 | 60V | 800W | 3000RPM | CW | 80mm | 2N.m | S3 |
| MA08XXN | 12V | 0.8KW | 3200RPM | BI-DIRECTIONAL | 80mm | 2N.m | S3 |
| MB08XXN | 24V | 0.8KW | 3000RPM | BI-DIRECTIONAL | 80mm | 2N.m | S3 |
| M108XXN | 12V | 0.8KW | 3200RPM | BI-DIRECTIONAL | 80mm | 2N.m | S3 |
| M208XXN | 24V | 0.8KW | 3000RPM | BI-DIRECTIONAL | 80mm | 2N.m | S3 |
| ZDY211S | 24V | 0.8KW | 3100RPM | CCW | 80mm | 2N.m | S3 |
| ZDY113S | 12V | 0.8KW | 3200RPM | CCW | 80mm | 2N.m | S3 |
| ZDY24800 | 24V | 800W | 3200RPM | CCW | 80mm | 2N.m | S3 |
| W5692 | 12V | 1.6KW | 2500RPM | CW | 114mm | 6N.m | S3 |
| W6599 | 12V | 1.7KW | 2720RPM | CW | 114mm | 6N.m | S3 |
| W9789 | 12V | 1.6KW | 2500RPM | CW | 114mm | 6N.m | S3 |
| ZD4201 | 48V | 2.0KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| ZD4201A | 48V | 2.0KW | 2700RPM | CCW | 114mm | 6N.m | S3 |
| ZD1223 | 12V | 2.0KW | 2800RPM | CW | 114mm | 6N.m | S3 |
| ZD293 | 24V | 2.2KW | 3000RPM | CW | 114mm | 6N.m | S3 |
| ZD2930 | 24V | 2.2KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| ZD1221 | 12V | 2.0KW | 2900RPM | CW | 114mm | 6N.m | S3 |
| ZD2900 | 24V | 2.2KW | 2800RPM | CW | 114mm | 6N.m | S3 |
| ZD2931 | 24V | 2.0KW | 2600RPM | CW | 114mm | 6N.m | S3 |
| ZD223A | 24V | 2.2KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| ZD223AF | 24V | 2.2KW | 2600RPM | CCW | 114mm | 6N.m | S3 |
| W8799 | 12V | 1.5KW | 2400RPM | CCW | 114mm | 6N.m | S3 |
| W8935 | 12V | 1.5KW | 2460RPM | CCW | 114mm | 6N.m | S3 |
| W8950 | 24V | 2KW | 2600RPM | CCW | 114mm | 6N.m | S3 |
| W8999 | 12V | 1.6KW | 2500RPM | CCW | 114mm | 6N.m | S3 |
| W9405 | 24V | 1.5KW | 2400RPM | CCW | 114mm | 6N.m | S3 |
| ZD193A | 12V | 1.6KW | 2500RPM | CCW | 114mm | 6N.m | S3 |
| ZD293A | 24V | 2.2KW | 3000RPM | CCW | 114mm | 6N.m | S3 |
| W8923 | 12V | 1.4KW | 2250RPM | BI-DIRECTIONAL | 114mm | 6N.m | S3 |
| W8930B | 12V | 1.5KW | 2380RPM | BI-DIRECTIONAL | 114mm | 6N.m | S3 |
| W8941 | 12V | 1.5KW | 2400RPM | BI-DIRECTIONAL | 114mm | 6N.m | S3 |
| W9144 | 12V | 1.5KW | 2150RPM | BI-DIRECTIONAL | 114mm | 6N.m | S3 |
| W7923 | 12V | 1.2KW | 1700RPM | BI-DIRECTIONAL | 114mm | 6N.m | S3 |
| N1612 | 12V | 1.6KW | 2350RPM | CW | 114mm | 6N.m | S3 |
| N2024 | 24V | 2.2KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| ZD1230 | 12V | 1.6KW | 2350RPM | CW | 114mm | 6N.m | S3 |
| ZD2420 | 24V | 2.2KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| ZD6202 | 60V | 2.0KW | 2600RPM | CW | 114mm | 6N.m | S3 |
| ZD7202 | 72V | 2KW | 2600RPM | CW | 114mm | 6N.m | S3 |
| MD12160 | 12V | 1.6KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| MD24160 | 24V | 2.0KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| ZD1241 | 12V | 1.6KW | 2350RPM | CW | 114mm | 6N.m | S3 |
| ZD2941 | 24V | 2.2KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| 56363 | 12V | 1.6KW | 2350RPM | CW | 114mm | 6N.m | S3 |
| N1612C | 12V | 1.6KW | 2350RPM | CW | 114mm | 6N.m | S3 |
| N2024C | 24V | 2.2KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| W8901P | 12V | 1.5KW | 2220RPM | CW | 114mm | 6N.m | S3 |
| ZD1240 | 12V | 1.6KW | 2350RPM | CW | 114mm | 6N.m | S3 |
| ZD2940 | 24V | 2.2KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| ZD1200 | 12V | 1.5KW | 2500RPM | CW | 114mm | 6N.m | S3 |
| ZD1201 | 12V | 1.6KW | 2500RPM | CW | 114mm | 6N.m | S3 |
| ZD12250 | 12V | 2.2KW | 2800RPM | CW | 114mm | 6N.m | S3 |
| ZD24250 | 24V | 2.5KW | 3000RPM | CW | 114mm | 6N.m | S3 |
Other models you maybe interested in:
You can click on the picture then have a detailed description:
Permanent Magnet Motors Direct drive motors:
pallet truck hydraulic power units : vechicle tail gate power unit
1. Business Type
a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops
2. Certificates
CE, ISO9001 etc
3. How long could we get the goods?
a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders
4. Quality Control
a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
