Home > Electrical & Electronics > Electric Motor > DC Motor > DC Motor for Tailgate 12Volt Hydraulic W5692
US$ 37 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Jinle
Place of Origin:
Jiangsu, China
Model Number:
W5692
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Jinle Forklift dc Motor 12V 24V 1600wUS$ 37 - 45MOQ: 1 Piece -
ZDY113 Model Permanent Magnet Motor 80mm O.D 800WUS$ 25 - 35MOQ: 1 Piece
-
JINLE Permanent Magnet Motor 24v 500w PMDCUS$ 35 - 40MOQ: 1 Piece
-
ZD2420 24VDC Hydraulic MotorUS$ 37 - 45MOQ: 1 Piece
-
Electric Car DC Motor 60V 2.0KW 2000WUS$ 38 - 45MOQ: 1 Piece
Brand Name
Jinle
Place of Origin
Jiangsu, China
Model Number
W5692
Type
Micro Motor
Certification
CE
Torque
6NM
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance, Car, Boat
Construction
Series Wound
Efficiency
IE 4
Protect Feature
Drip-proof
Output Power
1.6KW
Continuous Current(A)
120A
Speed(RPM)
2450RPM
Commutation
Brush
DC motor for Tailgate 12Volt Hydraulic W5692
Product Description
Features:
2 post plow motor
double ball bearing
4.5 Inch Motor
Insulated ground
Used on Meyer E-57, E-57H, E-60H, and other applications
100% copper wire
good service after sale
Customized production is available!
Supply for OEM Production!
nearly 20 years' manufacturing experience

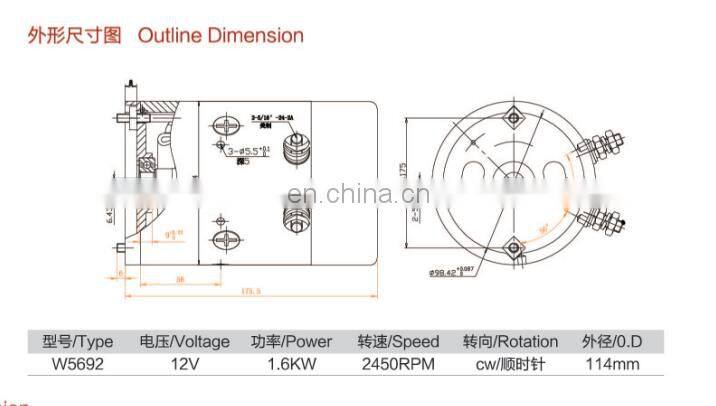

Specification:
1) Type: W5692
2) Voltage: 12V
3) Power: 1.6KW
4) Speed: 2500PM
5) Rotation: CW
6) O.D. : 114mm
7) Operating mode: S3
8) Insulation Class: F
9) Protection Degree: IP 54
10) Torque: 6N.m
Replaces: W5690, W-5698,15841
Application: fenner fluid powerpump
Lester 10578
PIC: 160-848A
