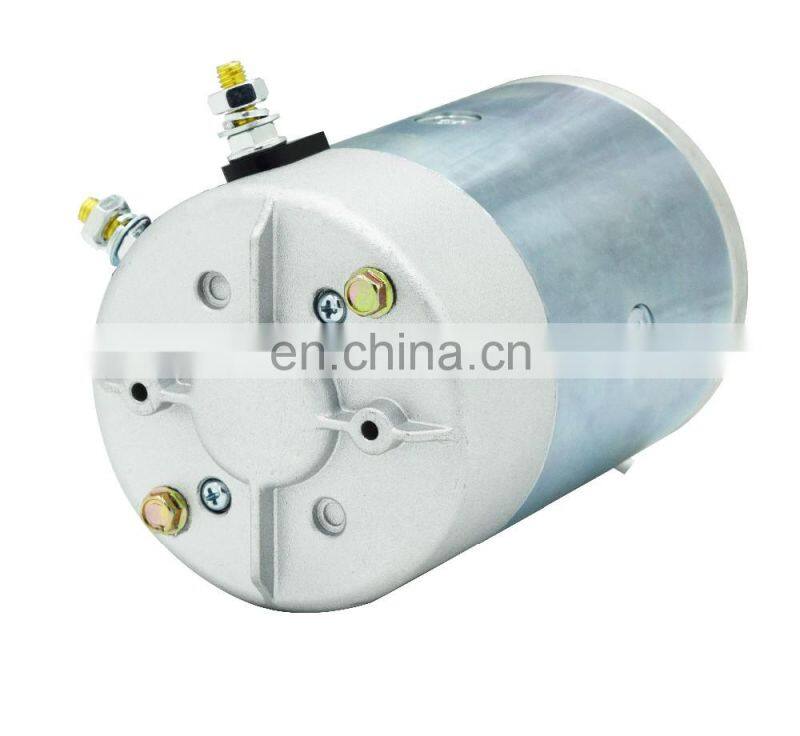

ZD2420 24VDC Hydraulic Motor

ZD2420 24VDC Hydraulic Motor thumbnail-1
ZD2420 24VDC Hydraulic Motor thumbnail-2
ZD2420 24VDC Hydraulic Motor thumbnail-3
ZD2420 24VDC Hydraulic Motor thumbnail-4
ZD2420 24VDC Hydraulic Motor thumbnail-5
ZD2420 24VDC Hydraulic Motor thumbnail-6
ZD2420 24VDC Hydraulic Motor photo-1
ZD2420 24VDC Hydraulic Motor photo-2

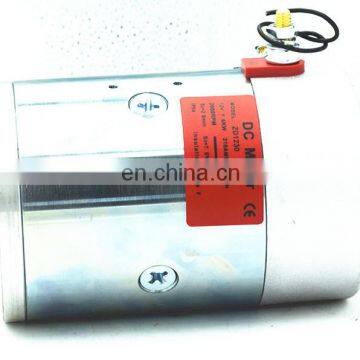

ZD2420 24VDC Hydraulic Motor photo-3

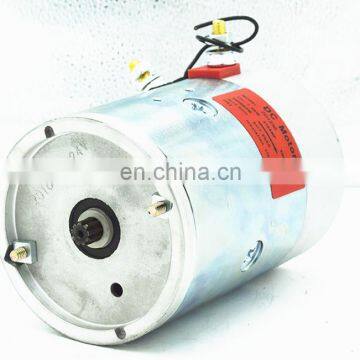

ZD2420 24VDC Hydraulic Motor photo-4
ZD2420 24VDC Hydraulic Motor photo-5
ZD2420 24VDC Hydraulic Motor photo-6
US$ 37 - 45 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Jinle
Place of Origin:
Jiangsu, China
Model Number:
ZD2420
Contact Supplier Request Quote Chat Now
Wuxi Jinle Automobile Motor Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Jinle
Place of Origin Jiangsu, China
Model Number ZD2420
Type Micro Motor
Certification CE
Torque 6NM
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction Series Wound
Efficiency IE 4
Protect Feature Drip-proof
Voltage(V) 24v
Output Power 2.2kw, 2.2KW
Continuous Current(A) 120A
Speed(RPM) 2700RPM
Commutation Brush

ZD2420 24VDC Hydraulic Motor





Product Description

Specifications





1. Type: ZD2420

2. Voltage: 24V

3. Power: 2.2KW

4. Speed: 2700RPM

5. Rotation: CW

6. O.D. : 114mm/4.5'

7. Insulation: F

8. Protection Class: IP54

9. Operation Mode: S3

10. Color: Customized


  ZD2420 24VDC Hydraulic Motor

 ZD2420 24VDC Hydraulic Motor

ZD2420 24VDC Hydraulic Motor



 OHTER TYPES

Type Voltage Power Speed Rotaion O.D.
W5692 12V 1.6KW 2500RPM CW 114mm
W6599 12V 1.7KW 2720RPM CW 114mm
W9789 12V 1.6KW 2500RPM CW 114mm
ZD4201 48V 2.0KW 2700RPM CW 114mm
ZD1223 12V 2.0KW 2800RPM CW 114mm
ZD293 24V 2.2KW 3000RPM CW 114mm
ZD2930 24V 2.2KW 2700RPM CW 114mm
ZD1221 12V 2.0KW 2900RPM CW 114mm
ZD2931 24V 2.0KW 2600RPM CW 114mm
ZD223A 24V 2.2KW 2700RPM CW 114mm
ZDY211 24V 0.8KW 3650RPM CW 80mm
ZDY212 24V 0.5KW 2800RPM CW 80mm
ZDY112 12V 0.5KW 2300RPM CW 80mm
ZDY113 12V 0.8KW 3500RPM CW 80mm
ZD2973A 24V 3.0KW 3100RPM CW 127mm
ZD2973A 24V 3.0KW 3100RPM CW 127mm
ZD2373 24V 3.0KW 2850RPM CW 125mm
XQD-3C 24V 3.5KW 3100RPM CW 142mm
Type Voltage Power Speed Rotaion O.D.
W8799 12V 1.5KW 2400RPM CCW 114mm
W8935 12V 1.5KW 2460RPM CCW 114mm
W8950 24V 2KW 2600RPM CCW 114mm
W8999 12V 1.6KW 2500RPM CCW 114mm
W9405 24V 1.5KW 2400RPM CCW 114mm
ZD193A 12V 1.6KW 2500RPM CCW 114mm
ZD223A 24V 2.2KW 2700RPM CCW 114mm
ZD293A 24V 2.2KW 3000RPM CCW 114mm
Type Voltage Power Speed Rotaion O.D.
QZD2402 24V 2.2KW 1750RPM BI-DIRECTIONAL 164mm
QZD2409 24V 0.9KW 2150RPM BI-DIRECTIONAL 126mm
QZD2411 24V 1.1KW 2160RPM BI-DIRECTIONAL 127mm
QZD2412 24V 2.2KW 1750RPM BI-DIRECTIONAL 164mm
QZD2422 24V 2.2KW 1750RPM BI-DIRECTIONAL 164mm
QZD2445 24V 4.5KW 1750RPM BI-DIRECTIONAL 180mm
QZD4840 48V 4.8KW 1750RPM BI-DIRECTIONAL 218mm
QZD4841 48V 4.0KW 2030RPM BI-DIRECTIONAL 170mm
W8923 12V 1.4KW 2250RPM BI-DIRECTIONAL 114mm
W8930B 12V 1.5KW 2380RPM BI-DIRECTIONAL 114mm
W8941 12V 1.5KW 2400RPM BI-DIRECTIONAL 114mm
W9144 12V 1.5KW 2150RPM BI-DIRECTIONAL 114mm
W7923 12V 1.2KW 1700RPM BI-DIRECTIONAL 114mm



Packaging & Shipping

 ZD2420 24VDC Hydraulic Motor





Our Services



1) Low noise
2) Easy brush replacement
3) OEM service avaliable
4) Efficient and long continuous running time

5) Customization available

6) Robust construction for long and reliable service life
7) 100% copper wire

8) 12V, 24V, 36V, 48V,60V,72V as per customers' option

9) Factory established in 1996 with nearly 20 years' manufacturing experience





Certifications









Company Information

 Our factory was established in 1996,  professional in forklift motors, hydraulic power unit motors.



We have nearly 20 years' manufacturing experience with a strong team of 30 engineers for development and research. The motors' annual output has been more than 200,000 sets.



So far, we are the only designated OEM hydraulic power unit motor supplier in China for US WAI Company, OEM forklift motor supplier for Korea SOOSUNG. Also, we cooperated Korea KOPACK and HELI in China.





FAQ



1. Business Type

a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops



2. Certificates

CE, ISO9001 etc



3. How long could we get the goods?

a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders



4. Quality Control

a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
