Home > Products > Hydraulic dc motors > Drive Motor DC QZD2411 24V 1100W

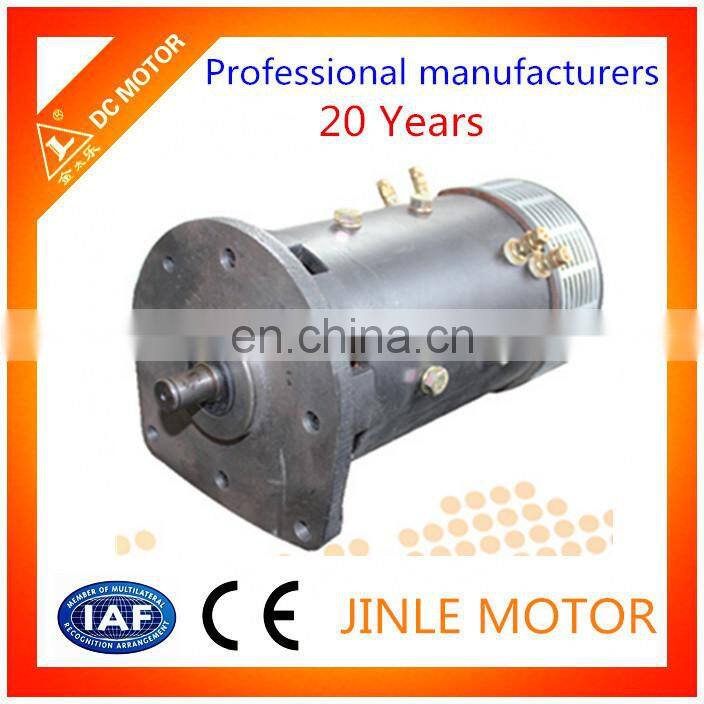

Drive Motor DC QZD2411 24V 1100W
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Brand Name | Jinle | Place of Origin | Jiangsu, China | |
| Model Number | QZD2411 | Type | Micro Motor | |
| Certification | CE | Torque | 6NM | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Shunt Wound | |
| Efficiency | IE 4 | Protect Feature | Drip-proof | |
| Voltage(V) | 24v | Output Power | 1.1kw | |
| Continuous Current(A) | 120A | Speed(RPM) | 1750RPM | |
| Commutation | Brush |
Product Description
Drive Motor DC QZD2411 24V 1100W
We will attend HANNOVER MESSE in 2017 in German, BOOTH No HALL020,A30-19 . From April 24th-28th.
Welcome your visit!
QZD2411:
Voltage: 24v
Power; 1.1kw
Speed: 2160RPM
Rotation: BI-DIRECTIONAL
O.D.: 127mm
duty :s1
| Type | Voltage | Power | Speed | Rotaion | O.D. |
| W5692 | 12V | 1.6KW | 2500RPM | CW | 114mm |
| W6599 | 12V | 1.7KW | 2720RPM | CW | 114mm |
| W9789 | 12V | 1.6KW | 2500RPM | CW | 114mm |
| ZD4201 | 48V | 2.0KW | 2700RPM | CW | 114mm |
| ZD1223 | 12V | 2.0KW | 2800RPM | CW | 114mm |
| ZD293 | 24V | 2.2KW | 3000RPM | CW | 114mm |
| ZD2930 | 24V | 2.2KW | 2700RPM | CW | 114mm |
| ZD1221 | 12V | 2.0KW | 2900RPM | CW | 114mm |
| ZD2931 | 24V | 2.0KW | 2600RPM | CW | 114mm |
| ZD223A | 24V | 2.2KW | 2700RPM | CW | 114mm |
| ZDY211 | 24V | 0.8KW | 3650RPM | CW | 80mm |
| ZDY212 | 24V | 0.5KW | 2800RPM | CW | 80mm |
| ZDY112 | 12V | 0.5KW | 2300RPM | CW | 80mm |
| ZDY113 | 12V | 0.8KW | 3500RPM | CW | 80mm |
| ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm |
| ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm |
| ZD2373 | 24V | 3.0KW | 2850RPM | CW | 125mm |
| XQD-3C | 24V | 3.5KW | 3100RPM | CW | 142mm |
| Type | Voltage | Power | Speed | Rotaion | O.D. |
| W8799 | 12V | 1.5KW | 2400RPM | CCW | 114mm |
| W8935 | 12V | 1.5KW | 2460RPM | CCW | 114mm |
| W8950 | 24V | 2KW | 2600RPM | CCW | 114mm |
| W8999 | 12V | 1.6KW | 2500RPM | CCW | 114mm |
| W9405 | 24V | 1.5KW | 2400RPM | CCW | 114mm |
| ZD193A | 12V | 1.6KW | 2500RPM | CCW | 114mm |
| ZD223A | 24V | 2.2KW | 2700RPM | CCW | 114mm |
| ZD293A | 24V | 2.2KW | 3000RPM | CCW | 114mm |
| Type | Voltage | Power | Speed | Rotaion | O.D. |
| QZD2402 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
| QZD2409 | 24V | 0.9KW | 2150RPM | BI-DIRECTIONAL | 126mm |
| QZD2411 | 24V | 1.1KW | 2160RPM | BI-DIRECTIONAL | 127mm |
| QZD2412 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
| QZD2422 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
| QZD2445 | 24V | 4.5KW | 1750RPM | BI-DIRECTIONAL | 180mm |
| QZD4840 | 48V | 4.8KW | 1750RPM | BI-DIRECTIONAL | 218mm |
| QZD4841 | 48V | 4.0KW | 2030RPM | BI-DIRECTIONAL | 170mm |
| W8923 | 12V | 1.4KW | 2250RPM | BI-DIRECTIONAL | 114mm |
| W8930B | 12V | 1.5KW | 2380RPM | BI-DIRECTIONAL | 114mm |
| W8941 | 12V | 1.5KW | 2400RPM | BI-DIRECTIONAL | 114mm |
| W9144 | 12V | 1.5KW | 2150RPM | BI-DIRECTIONAL | 114mm |
| W7923 | 12V | 1.2KW | 1700RPM | BI-DIRECTIONAL | 114mm |
1) Low noise
2) Easy brush replacement
3) OEM service avaliable
4) Efficient and long continuous running time
5) Customization available
6) Robust construction for long and reliable service life
7) 100% copper wire
8) 12V, 24V, 36V, 48V,60V,72V as per customers' option
9) Factory established in 1996 with nearly 20 years' manufacturing experience
1. Business Type
a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops
2. Certificates
CE, ISO9001 etc
3. How long could we get the goods?
a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders
4. Quality Control
a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
