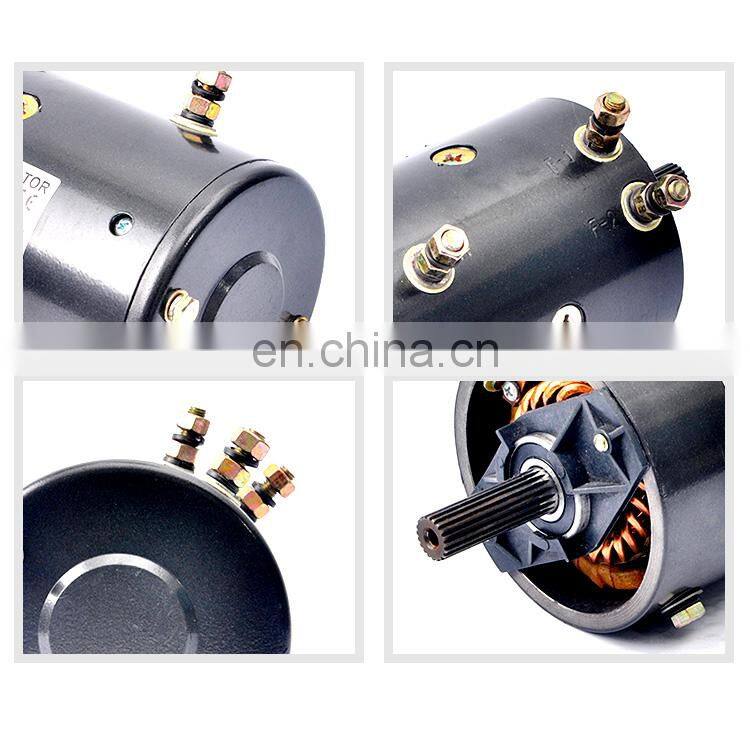

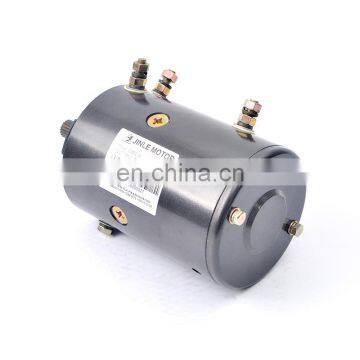

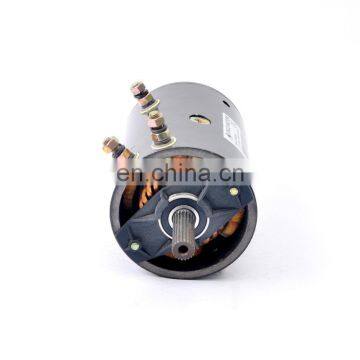

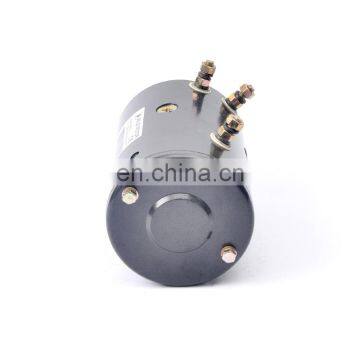

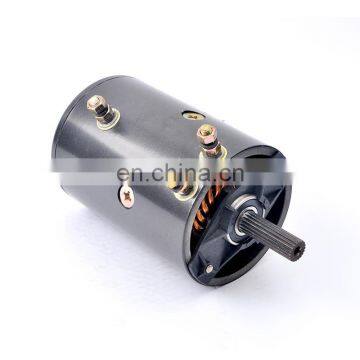

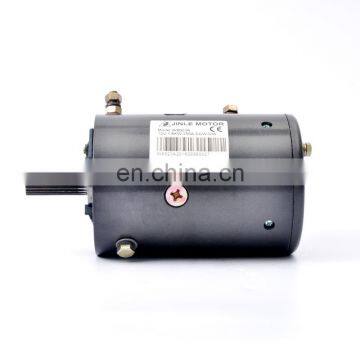

Home > Electrical & Electronics > Electric Motor > DC Motor > 12V 1.5kw Hydraulic Pump Motor for Electric Vehicle
US$ 35 - 45
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Jinle
Place of Origin:
Jiangsu, China
Model Number:
W8941
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic DC Motor 24V For Forklift LiftingUS$ 38 - 45MOQ: 1 Piece -
Hydraulic DC Motor 24V For Forklift LiftingUS$ 38 - 45MOQ: 1 Piece
-
Hydraulic DC Motor ZD2973A 24V O.D127mmUS$ 115 - 120MOQ: 1 Piece
-
1.7KW 12vot Hydraulic DC Motor Used In ForkliftUS$ 45 - 50MOQ: 1 Piece
-
48V 2KW DC Motor For Forklift HydraulicUS$ 60 - 65MOQ: 1 Piece
Brand Name
Jinle
Place of Origin
Jiangsu, China
Model Number
W8941
Certification
CE
Torque
6NM
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction
Shunt Wound
Efficiency
IE 4
Protect Feature
Drip-proof
Continuous Current(A)
120A
Speed(RPM)
2400RPM
Commutation
Brush
Product Description
12 volt dc motor
Type | W8941 |
Voltage | 12Volt |
Power | 1.5KW |
Speed | 2400RPM |
Rotation | BI-DIRECTIONAL |
O.D. | 114mm |
Operating Mode | S3 |
Effiency | IE2 |
Weight | 7.5KG |
Insulation | F |
Protection Class | IP54 |
| Type | Voltage | Power | Speed | Rotaion | O.D. |
| W5692 | 12V | 1.6KW | 2500RPM | CW | 114mm |
| W6599 | 12V | 1.7KW | 2720RPM | CW | 114mm |
| W9789 | 12V | 1.6KW | 2500RPM | CW | 114mm |
| ZD4201 | 48V | 2.0KW | 2700RPM | CW | 114mm |
| ZD1223 | 12V | 2.0KW | 2800RPM | CW | 114mm |
| ZD293 | 24V | 2.2KW | 3000RPM | CW | 114mm |
| ZD2930 | 24V | 2.2KW | 2700RPM | CW | 114mm |
| ZD1221 | 12V | 2.0KW | 2900RPM | CW | 114mm |
| ZD2931 | 24V | 2.0KW | 2600RPM | CW | 114mm |
| ZD223A | 24V | 2.2KW | 2700RPM | CW | 114mm |
| ZDY211 | 24V | 0.8KW | 3650RPM | CW | 80mm |
| ZDY212 | 24V | 0.5KW | 2800RPM | CW | 80mm |
| ZDY112 | 12V | 0.5KW | 2300RPM | CW | 80mm |
| ZDY113 | 12V | 0.8KW | 3500RPM | CW | 80mm |
| ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm |
| ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm |
| ZD2373 | 24V | 3.0KW | 2850RPM | CW | 125mm |
| XQD-3C | 24V | 3.5KW | 3100RPM | CW | 142mm |
| Type | Voltage | Power | Speed | Rotaion | O.D. |
| W8799 | 12V | 1.5KW | 2400RPM | CCW | 114mm |
| W8935 | 12V | 1.5KW | 2460RPM | CCW | 114mm |
| W8950 | 24V | 2KW | 2600RPM | CCW | 114mm |
| W8999 | 12V | 1.6KW | 2500RPM | CCW | 114mm |
| W9405 | 24V | 1.5KW | 2400RPM | CCW | 114mm |
| ZD193A | 12V | 1.6KW | 2500RPM | CCW | 114mm |
| ZD223A | 24V | 2.2KW | 2700RPM | CCW | 114mm |
| ZD293A | 24V | 2.2KW | 3000RPM | CCW | 114mm |
| Type | Voltage | Power | Speed | Rotaion | O.D. |
| QZD2402 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
| QZD2409 | 24V | 0.9KW | 2150RPM | BI-DIRECTIONAL | 126mm |
| QZD2411 | 24V | 1.1KW | 2160RPM | BI-DIRECTIONAL | 127mm |
| QZD2412 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
| QZD2422 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
| QZD2445 | 24V | 4.5KW | 1750RPM | BI-DIRECTIONAL | 180mm |
| QZD4840 | 48V | 4.8KW | 1750RPM | BI-DIRECTIONAL | 218mm |
| QZD4841 | 48V | 4.0KW | 2030RPM | BI-DIRECTIONAL | 170mm |
| W8923 | 12V | 1.4KW | 2250RPM | BI-DIRECTIONAL | 114mm |
| W8930B | 12V | 1.5KW | 2380RPM | BI-DIRECTIONAL | 114mm |
| W8941 | 12V | 1.5KW | 2400RPM | BI-DIRECTIONAL | 114mm |
| W9144 | 12V | 1.5KW | 2150RPM | BI-DIRECTIONAL | 114mm |
| W7923 | 12V | 1.2KW | 1700RPM | BI-DIRECTIONAL | 114mm |
FAQ
1. Business Type
a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops
2. Certificates
CE, ISO9001 etc
3. How long could we get the goods?
a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders
4. Quality Control
a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
