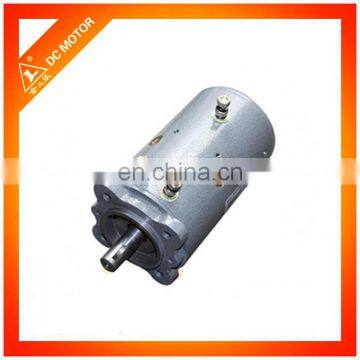

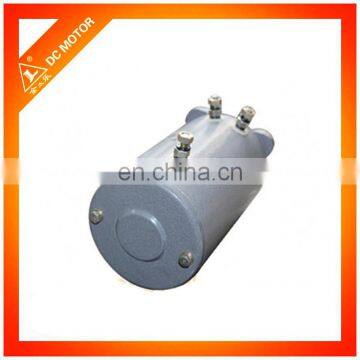

CE Certified Hydraulic dc Motor W9144

Wuxi Jinle Automobile Motor Factory
CE Certified Hydraulic dc Motor W9144 thumbnail-1
CE Certified Hydraulic dc Motor W9144 thumbnail-2
CE Certified Hydraulic dc Motor W9144 thumbnail-3
CE Certified Hydraulic dc Motor W9144 thumbnail-4
CE Certified Hydraulic dc Motor W9144 photo-1
CE Certified Hydraulic dc Motor W9144 photo-2
CE Certified Hydraulic dc Motor W9144 photo-3
CE Certified Hydraulic dc Motor W9144 photo-4
US$ 38 - 45 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Jinle
Place of Origin:
Jiangsu, China
Model Number:
W9144
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Jinle
Place of Origin Jiangsu, China
Model Number W9144
Type Micro Motor
Certification CE
Torque 6NM
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction Series Wound
Efficiency IE 4
Protect Feature Drip-proof
Voltage(V) 12v
Output Power 1.5kw
Continuous Current(A) 120A
Speed(RPM) 2150RPM
Commutation Brush

CE certified hydraulic dc  motor W9144

We will attend HANNOVER MESSE in 2017 in German,  BOOTH No  HALL020,A30-19 . From April 24th-28th.



Welcome your visit!



Product Description

Specification  of CE certified hydraulic dc  motor W9144

dc motor hydraulic

1) Type: W9144

2) Voltage: 12V

3) Power: 1.5KW

4) Speed: 2150PM

5) Rotation: BI-DIRECTIONAL

6) O.D. : 114mm

7) Operating mode: S3

8) Insulation Class: F

9) Protection Degree: IP 54

10) Torque: 6N.m

11) Weight: 7.5KG

3-POST winch motor

3/4'' diameter shaft

4.8 horsepower



LESTER 5687N-DBHD

WAI  82-6868-2



Features of  CE certified hydraulic dc  motor W9144

100% copper wire

stable running, high efficiency, low noise

good service after sale

12V, 24V, 48V, 60V etc.  on your request

Customized production is available!

Supply for OEM Production!

nearly 20 years' manufacturing experience

 CE certified hydraulic dc motor W9144



CE certified hydraulic dc motor W9144

CE certified hydraulic dc motor W9144

 OHTER TYPES



Our Services



1) Low noise
2) Easy brush replacement
3) OEM service avaliable
4) Efficient and long continuous running time

5) Customization available

6) Robust construction for long and reliable service life
7) 100% copper wire

8) 12V, 24V, 36V, 48V,60V,72V as per customers' option

9) Factory established in 1996 with nearly 20 years' manufacturing experience





Certifications













TypeVoltagePowerSpeedRotaionO.D.Torque Duty
W569212V1.6KW2500RPMCW114mm6N.mS3
W659912V1.7KW2720RPMCW114mm6N.mS3
W978912V1.6KW2500RPMCW114mm6N.mS3
ZD420148V2.0KW2700RPMCW114mm6N.mS3
ZD122312V2.0KW2800RPMCW114mm6N.mS3
ZD29324V2.2KW3000RPMCW114mm6N.mS3
ZD293024V2.2KW2700RPMCW114mm6N.mS3
ZD122112V2.0KW2900RPMCW114mm6N.mS3
ZD293124V2.0KW2600RPMCW114mm6N.mS3
ZD223A24V2.2KW2700RPMCW114mm6N.mS3
ZDY21124V0.8KW3650RPMCW80mm2N.mS3
ZDY21224V0.5KW2800RPMCW80mm2N.mS3
ZDY11212V0.5KW2300RPMCW80mm2N.mS3
ZDY11312V0.8KW3500RPMCW80mm2N.mS3
ZD2973A24V3.0KW3100RPMCW127mm10N.mS2
ZD237324V3.0KW2850RPMCW125mm10N.mS2
XQD-3C24V3.5KW3100RPMCW142mm10N.mS2
W879912V1.5KW2400RPMCCW114mm6N.mS3
W893512V1.5KW2460RPMCCW114mm6N.mS3
W895024V2KW2600RPMCCW114mm6N.mS3
W899912V1.6KW2500RPMCCW114mm6N.mS3
W940524V1.5KW2400RPMCCW114mm6N.mS3
ZD193A12V1.6KW2500RPMCCW114mm6N.mS3
ZD293A24V2.2KW3000RPMCCW114mm6N.mS3
QZD240924V900W2150RPMBI-DIRECTIONAL126mm10N.mS1
QZD241124V1.1KW2160RPMBI-DIRECTIONAL127mm10N.mS1
QZD484148V4.0KW2030RPMBI-DIRECTIONAL170mm17N.mS1
W892312V1.4KW2250RPMBI-DIRECTIONAL114mm6N.mS3
W8930B12V1.5KW2380RPMBI-DIRECTIONAL114mm6N.mS3
W894112V1.5KW2400RPMBI-DIRECTIONAL114mm6N.mS3
W914412V1.5KW2150RPMBI-DIRECTIONAL114mm6N.mS3
W792312V1.2KW1700RPMBI-DIRECTIONAL114mm6N.mS3
125912V50W500RPMCW56mm0.5N.mS2
N246324V200W3000RPMBI-DIRECTIONAL63mm1N.mS2
ZDY11812V1.2KW3000RPMCW80mm2N.mS3
ZDY21824V1.2KW3000RPMCW80mm2N.mS3
ZDY41848V1.2KW3000RPMCW80mm2N.mS3
MA08XXN12V0.8KW3200RPMBI-DIRECTIONAL80mm2N.mS3
MB08XXN24V0.8KW3000RPMBI-DIRECTIONAL80mm2N.mS3
ZDY211S24V0.8KW3100RPMCCW80mm2N.mS3
N161212V1.6KW2350RPMCW114mm6N.mS3
N202424V2.2KW2700RPMCW114mm6N.mS3
ZD123012V1.6KW2350RPMCW114mm6N.mS3
ZD242024V2.2KW2700RPMCW114mm6N.mS3
ZD620260V2.0KW2600RPMCW114mm6N.mS3
ZD720272V2KW2600RPMCW114mm6N.mS3
MD1216012V1.6KW2700RPMCW114mm6N.mS3
ZD124112V1.6KW2350RPMCW114mm6N.mS3
ZD294124V2.2KW2700RPMCW114mm6N.mS3
N302424V3.0KW3000RPMCW127mm10N.mS2

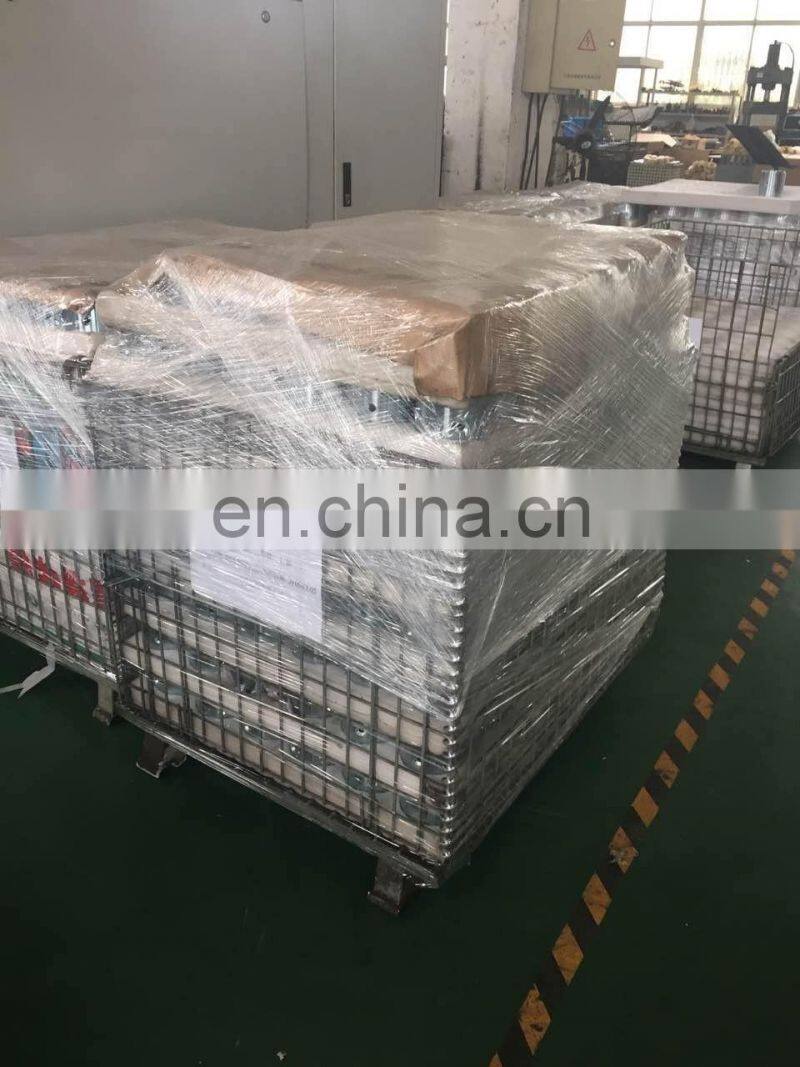

Packaging & Shipping

CE certified hydraulic dc motor W9144











Company Information

 Our factory was established in 1996,  professional in forklift motors, hydraulic power unit motors.



We have nearly 20 years' manufacturing experience with a strong team of 30 engineers for development and research. The motors' annual output has been more than 200,000 sets.



So far, we are the only designated OEM hydraulic power unit motor supplier in China for US WAI Company, OEM forklift motor supplier for Korea SOOSUNG. Also, we cooperated Korea KOPACK and HELI in China.





FAQ



1. Business Type

a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops



2. Certificates

CE, ISO9001 etc



3. How long could we get the goods?

a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders



4. Quality Control

a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment













  Some of other models:





CE certified hydraulic dc motor W9144     CE certified hydraulic dc motor W9144

CE certified hydraulic dc motor W9144     CE certified hydraulic dc motor W9144
