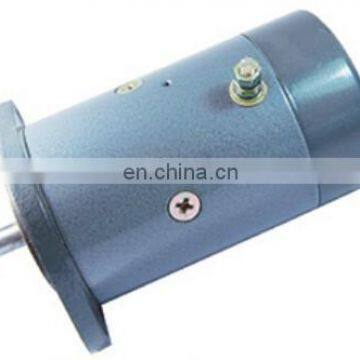

12V CW Rotation Hydraulic dc Motor for Hydraulic Pump
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Brand Name | Jinle | Place of Origin | Jiangsu, China | |
| Model Number | w6599 | |||
| Certification | CE | Torque | 6NM | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Shunt Wound | |
| Efficiency | IE 4 | Protect Feature | Drip-proof | |
| Voltage(V) | 12v | Output Power | 1.7kw | |
| Continuous Current(A) | 120A | Speed(RPM) | 2720RPM | |
| Commutation | Brush |
Product Description
12V CW rotation 12v hydraulic dc motor
| Type | Voltage | Power | Speed | Rotation | O.D. | Torque | Duty | Weight |
| W6599 | 12V | 1.5-2.5KW | 2720RPM | CW | 114mm | 6N.m | S3 | 7.5kg |
Insulation Class: F
Protection Class: IP54
Features:
100% copper wire
stable running, high efficiency, low noise
good service after sale
12V, 24V, 48V, 60V etc. on your request
Customized production is available!
Supply for OEM Production!
nearly 20 years' manufacturing experience
According to the different requirements of customers, our DC motors have been broadly used in the fork-lift, container van tail-board, van door system, jumping car, snow-sweeper, etc.
Motor’ type can be divided into 12V,24V voltage system.
Output power ranges from 0.5 KW-4.5 KW.
Outside diameter covers 3 inch, 4.5 inch ,5 inch.
