BMP302M High Efficient 0.5 hp - 1 hp Dewatering Pump, Surface Pump for Drawing Water
US$ 99 - 99
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
Mcmaster
Place of Origin:
Jiangsu, China
Model Number:
BMP302M
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BMP206 Stainless Steel 7.5 hp 60 hp Multi-Stage Electric Vertical Centrifugal Water PumpsUS$ 2,492 - 2,492MOQ: 10 Pieces -
750 Watt Solar Water Pump, Agriculture Submersible Deep Well Solar Pump BMP5044US$ 157 - 157MOQ: 1 Set
-
Portable High Head Submersible 80m Deep Well Solar Powered Water Pump For Irrigation BMP5043US$ 157 - 157MOQ: 1 Set
-
McMaster BMP5042 Hot Sale 1hp 5hp 10hp 20hp Solar Powered Submersible System Well Water PumpUS$ 157 - 157MOQ: 1 Set
-
2020 Hot Sale Water Supply 3 Inch dc Solar 48V Submersible Deep Well Pump Borehole Pump BMP5041US$ 157 - 157MOQ: 1 Set
Brand Name
Mcmaster
Place of Origin
Jiangsu, China
Model Number
BMP302M
Usage
Water
Theory
Centrifugal Pump
Structure
Single-stage Pump
Pressure
High Pressure
| Application Limits |
| Suction head up to 8m |
| Liquid temperature up to +40℃ |
| Ambient temperature up to +40℃ |
| Max. Working pressure: 6bar |
| Voltage fluctuation should not exceed 10% of rated value. |
| pH: 6.5 to 8.5 |
| Basic Configuration |
| Pump body:cast iron, stainless steel |
| Impellers: brass |
| Shaft: 45 # Steel |
| Mechanical sealing: ceramic I graphite I NBR rubber |
| Motor: two asynchronous motors, copper coils, built in thermal protection, all closed fan-cooled, continuous operation |
| Protection: IP44 |
| Insulation class: B |
| Features |
| Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water. |
| Widely used in garden irrigation, vegetable greenhouse water supply breeding industry water supply and drainage, various corollary equipment, etc. |

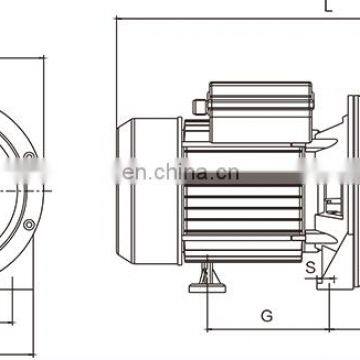

| Model | DN1 | DN2 | Dim.(mm) | |||||||||||
| inch | A | B | C | D | E | F | G | L | S | H1 | H2 | H3 | ||
| BMP302-60(110V-60Hz) | 1 | 1 | 100 | 120 | 121 | 16 | 45 | 64 | 80 | 258 | 7 | 63 | 75 | 150 |
| BMP302-60(220V-60Hz) | 1 | 1 | 100 | 120 | 121 | 16 | 45 | 64 | 80 | 258 | 7 | 63 | 75 | 150 |
| BMP302-60(110V/220V-60Hz) | 1 | 1 | 100 | 120 | 121 | 16 | 45 | 64 | 80 | 258 | 7 | 63 | 75 | 150 |
| BMP302-60C(110V-60Hz) | 1 | 1 | 100 | 120 | 121 | 16 | 45 | 64 | 80 | 258 | 7 | 63 | 75 | 150 |
| BMP302-60L(110V-60Hz) | 1 | 1 | 93 | 115 | 115 | 15 | 35.5 | 63 | 58 | 222 | 7 | 60 | 68 | 148 |
| BMP302-60L(220-60Hz) | 1 | 1 | 93 | 115 | 115 | 15 | 35.5 | 63 | 58 | 222 | 7 | 60 | 68 | 148 |
| BMP302-60K(110-60Hz) | 1 | 1 | 93 | 115 | 115 | 15 | 35.5 | 63 | 58 | 222 | 7 | 60 | 68 | 148 |
| BMP302-60K(220-60Hz) | 1 | 1 | 93 | 115 | 115 | 15 | 35.5 | 63 | 58 | 222 | 7 | 60 | 68 | 148 |
| BMP302-60K(110V/220V-60Hz) | 1 | 1 | 93 | 115 | 115 | 15 | 35.5 | 63 | 58 | 222 | 7 | 60 | 68 | 157 |
| BMP302-70(110V-60Hz) | 1 | 1 | 112 | 137 | 137 | 18 | 49.5 | 78.5 | 88 | 294 | 7 | 72 | 85 | 181 |
| BMP302-70(220V-60Hz) | 1 | 1 | 112 | 137 | 137 | 18 | 49.5 | 78.5 | 88 | 294 | 7 | 72 | 85 | 181 |
| BMP302-80(110V-60Hz) | 1 | 1 | 112 | 137 | 137 | 18 | 49.5 | 78.5 | 88 | 294 | 7 | 72 | 85 | 181 |
| BMP302-80(220V-60Hz) | 1 | 1 | 112 | 137 | 137 | 18 | 49.5 | 78.5 | 88 | 294 | 7 | 72 | 85 | 181 |
| BMP302-80(110V/220V-60Hz) | 1 | 1 | 112 | 137 | 137 | 18 | 49.5 | 78.5 | 88 | 294 | 7 | 72 | 85 | 181 |
| BMP302-85G(220V/380V-60Hz) | 1 | 1 | 112 | 138 | 138 | 12 | 21.5 | 73.5 | 90 | 259 | 8 | 71 | 82 | |
| No. | Component | No. | Component | No. | Component |
| 1 | O-ring | 10 | Cable Control Cover | 19 | Coupling |
| 2 | Air Faucet | 11 | Waterproof Ring | 20 | Motor Case |
| 3 | Washer | 12 | Bearing | 21 | Cable Sleeve |
| 4 | O-ring | 13 | End Cover | 22 | Cable |
| 5 | Stator | 14 | Fan | 23 | Rotor |
| 6 | Motor Housing | 15 | Pump Body | 24 | Wave Spring |
| 7 | Terminal Board | 16 | Impeller | 25 | Fan Cover |
| 8 | Capacitor | 17 | Shaft Circlip | ||
| 9 | Terminal Block Cover | 18 | Mechanical Seal |
