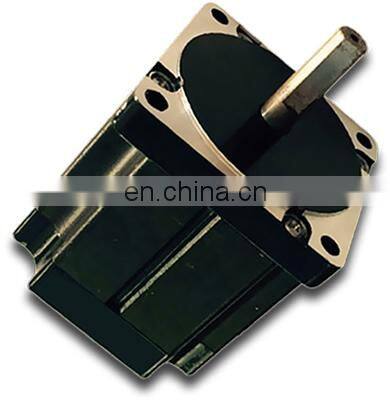

Product:brushless dc electric motor 3000rpm 24v bldc motor
Product Application: medical equipment, logistics transmission, mechanical equipment, solar tracking device etc.
SPECIFICATIONS |
Model | Voltage (VDC) | No Load | Rated Load | Toque (N.m) | Cogging Toque (N.m) | Moment of Inertia (Kg.cm2) | Torque Constant (N.m/A) | Length (mm) | ||
Current (A) | Speed (r/min) | Current (A) | Speed (r/min) | |||||||
BMM720 | 24 | 0.74 | 3488 | 4.48 | 3000 | 0.25 | 0.03 | 0.287 | 0.067 | 55 |

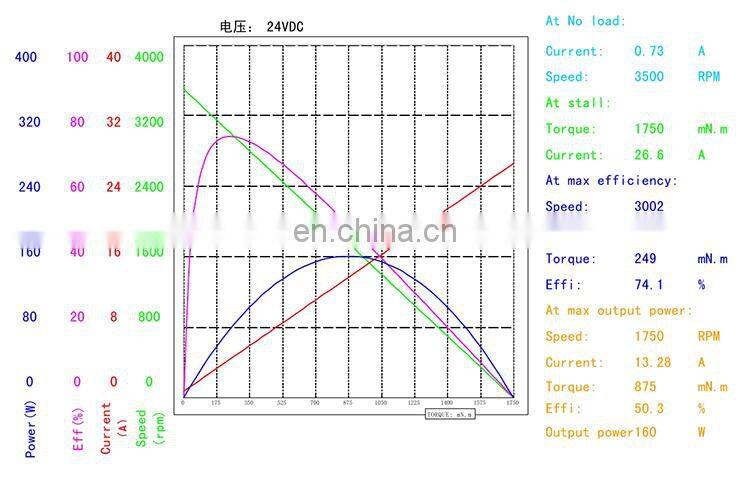

PERFORMANCE CURVE |

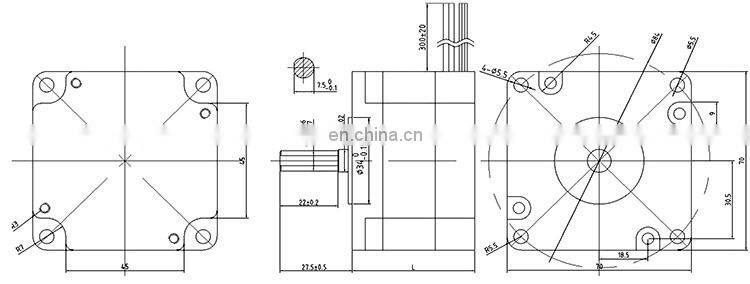

OUTLINE DRAWING |
SIMILAR PRODUCT |
Similar Power | | |
| |||
| MM741 | BMM747 |
|
|
|
|
Similar Speed | | | | | | |
| BMM704 | BMM705 | BMM706 | BMM707 | BMM708 | BMM725 |
| | | | | | |
| MM731 | BMM738 | BMM739 | BMM740 | BMM745 | BMM776 |
Similar Torque |
|
|
| |||
| BMM706 |
|
|
|
|
|
Each motor is packed in a foam box, 3pcs in a carton and 45 cartons in a pallet. If you have any special needs, please let us know, we can design packaging according to your request.
