Product Details
| Brand Name | McMaster | Place of Origin | Jiangsu, China | |
| Model Number | BMM722 | Type | Micro Motor | |
| Certification | CCC, ROHS | Torque | 0.8 N.m | |
| Usage | Boat, Car, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 2 | Protect Feature | Totally Enclosed | |
| Continuous Current(A) | 6 A | Speed(RPM) | 2500 rpm | |
| Commutation | Brushless |
Product Description
OUR PRODUCTS |
Product:brushless motor high rpm 48v 200 watt dc motor bldc motor
Product Application: medical equipment, logistics transmission, mechanical equipment, solar tracking device etc.
SPECIFICATIONS |
Model | Voltage (VDC) | No Load | Rated Load | Toque (N.m) | Cogging Toque (N.m) | Moment of Inertia (Kg.cm2) | Torque Constant (N.m/A) | Length (mm) | ||
Current (A) | Speed (r/min) | Current (A) | Speed (r/min) | |||||||
BMM722 | 48 | 0.98 | 2941 | 5.74 | 2500 | 0.8 | 0.06 | 0.94 | 0.168 | 70 |

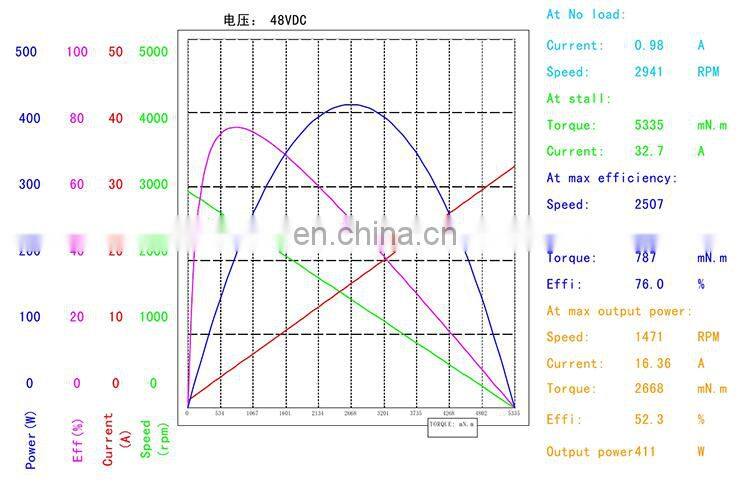

SPECIFICATIONS |

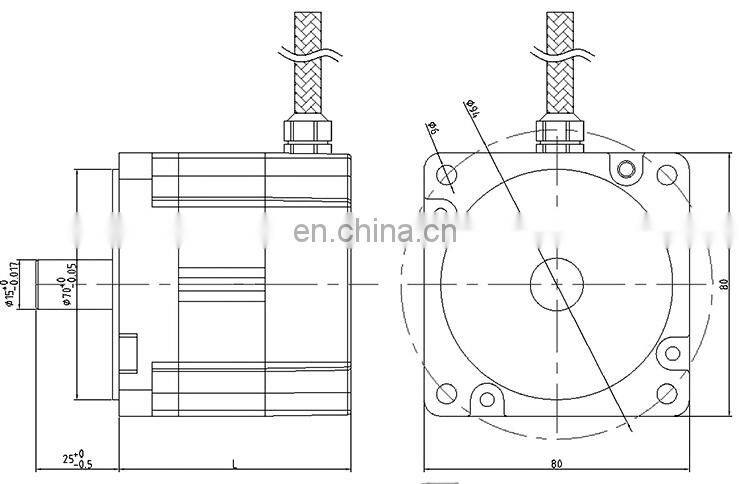

OUTLINE DRAWING |
SIMILAR PRODUCT |
Similar Power | | | ||||
| BMM747 | BMM754 |
|
|
|
|
Similar Speed | | | | | ||
| BMM703 | BMM711 | BMM713 | BMM717 | BMM754 |
|
Similar Torque | | | ||||
| BMM739 | BMM745 |
|
|
|
|
Each motor is packed in a foam box, 3pcs in a carton and 45 cartons in a pallet. If you have any special needs, please let us know, we can design packaging according to your request.
McMaster Electrics Co., Ltd is a professional company specializing in electrical and mechanical products, providing expert solutions and technical support. Our products include electrical motors, gear and gearboxes, transmissions and drive solution, HVAC fan/blower, controllers, pumps and relative components. We have been a reliable business partner for our North American and European customers since 2001. We provide high quality electrical motor, gearbox, fan/blower, controller, pump, ect. We also provide expert solutions and technical support to help your projects to be more competitive and successful. We have Headquarter and sales/service office in US, technical support/service company in China, Joint Ventures in Changzhou area and long term strategic manufacturing partners all over China. Contact us for your inquiry and you will have a pleasant and satisfied experience working with us in return.
1. Q: Can you provide detailed technical data and drawing?
A: Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to you for your evaluation and confirm.
2. Q: Can I visit your factory before we place an order?
A: Yes, you are welcome to visit our factory. We are very pleased if we have the chance to know more about each other.
3. Q: How to control the products quality in your company?
A: With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of our products is well controlled and consistent.
