OUR PRODUCTS |
Product:brushless dc electric motor 24v bldc motor
Product Application: medical equipment, Air cleaner etc.
SPECIFICATIONS |
VOLTAGE (VDC) | NO LOAD | RATED LOAD | TORQUE (Nm) | Cogging Torque (Nm) | Moment of Inertia (Kg.cm2) | Torque Constant (N.m/A) | Power (W) | LENGTH (mm) | |||
CURRENT (A) | SPEED (r/min) | CURRENT (A) | SPEED (r/min) | ||||||||
BMM732 | 24 | 0.12 | 4801 | 0.61 | 4000 | 0.025 | 0.005 | 0.027 | 0.051 | 10 | 33 |

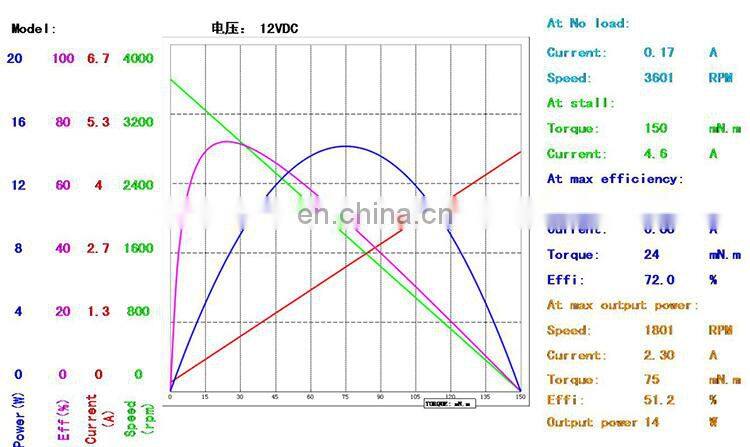

PERFORMANCE CURVE |

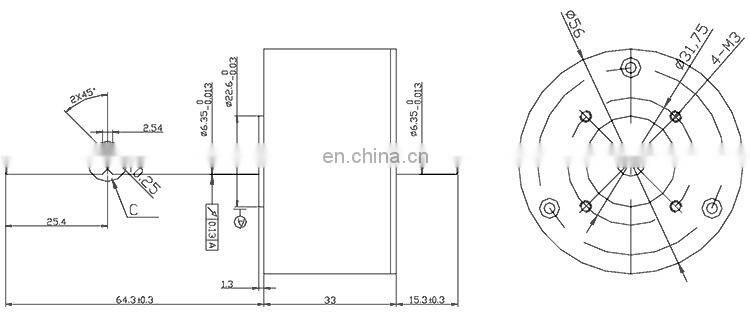

OUTLINE DRAWING |
SIMILAR PRODUCT |
Similar Power | | | | | | |
| BMM705 | BMM727 | BMM728 | MM731 | BMM733 | BMM770 |
Similar Speed | | | | |||
| BMM704 | BMM706 | BMM715 | BMM716 | BMM717 | BMM727 |
| | | ||||
| BMM734 | BMM735 | MM741 | BMM742 | BMM743 | BMM747 |
| ||||||
| BMM754 | BMM755 |
|
|
|
|
Similar Torque | ||||||
| BMM705 | BMM727 | BMM728 | MM731 | BMM733 | BMM770 |
Each motor is packed in a foam box, 3pcs in a carton and 45 cartons in a pallet. If you have any special needs, please let us know, we can design packaging according to your request.
McMaster Electrics Co., Ltd is a professional company specializing in electrical and mechanical products, providing expert solutions and technical support. Our products include electrical motors, gear and gearboxes, transmissions and drive solution, HVAC fan/blower, controllers, pumps and relative components. We have been a reliable business partner for our North American and European customers since 2001. We provide high quality electrical motor, gearbox, fan/blower, controller, pump, ect. We also provide expert solutions and technical support to help your projects to be more competitive and successful. We have Headquarter and sales/service office in US, technical support/service company in China, Joint Ventures in Changzhou area and long term strategic manufacturing partners all over China. Contact us for your inquiry and you will have a pleasant and satisfied experience working with us in return.
1. Q: Can you provide detailed technical data and drawing?
A: Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to you for your evaluation and confirm.
2. Q: Can I visit your factory before we place an order?
A: Yes, you are welcome to visit our factory. We are very pleased if we have the chance to know more about each other.
3. Q: How to control the products quality in your company?
A: With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of our products is well controlled and consistent.
a dc motor all about dc motor buy dc electric motor dc brushless motor dc engine dc motor near me electric dc motor electric fan motor electric motor wholesale motor 12v motor fan motors electrical robot motor
brushless dc electric motor 24v bldc motor
