Customized High Torque Bldc Motor 12v 24v 48v 200w Brushless dc Motor MM753

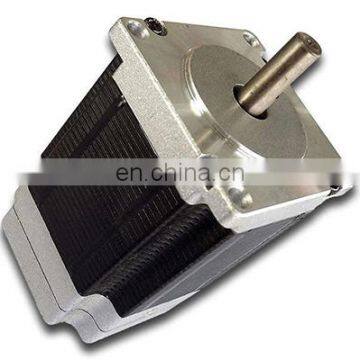

Customized High Torque Bldc Motor 12v 24v 48v 200w Brushless dc Motor MM753 photo-1
US$ 25 - 50 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
McMaster
Place of Origin:
Jiangsu, China
Model Number:
MM753
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Brand Name McMaster
Place of Origin Jiangsu, China
Model Number MM753
Certification CCC, ROHS
Torque 0.5 N.m
Usage Boat, Car, Fan, Home Appliance
Construction Permanent Magnet
Efficiency IE 2
Protect Feature Drip-proof
Continuous Current(A) 6 A
Speed(RPM) 4000 rpm
Commutation Brushless
Product Description

Customized high torque bldc motor 12v 24v 48v 200w brushless dc motor MM753Customized high torque bldc motor 12v 24v 48v 200w brushless dc motor MM753

Product: Customized high torque bldc motor 12v 24v 48v 200w brushless dc motor MM753

Customized high torque bldc motor 12v 24v 48v 200w brushless dc motor MM753

DC  Motor 48V    High Speed Low Torque Brushless motor    BLDC 48V

Product Application: medical equipment, logistics transmission, mechanical equipment, solar tracking device  etc.





Customized high torque bldc motor 12v 24v 48v 200w brushless dc motor MM753





Customized high torque bldc motor 12v 24v 48v 200w brushless dc motor MM753

Model

Voltage

(VDC)

No Load

Rated Load

Toque

(N.m)

Cogging Toque

(N.m)

Moment of Inertia

(Kg.cm2)

Torque Constant

(N.m/A)

Length

(mm)

Current

(A)

Speed

(r/min)

Current

(A)

Speed

(r/min)

MM753

48

0.99

5000

5.82

4000

0.5

0.02

0.94

0.104

70

Customized high torque bldc motor 12v 24v 48v 200w brushless dc motor MM753

Customized high torque bldc motor 12v 24v 48v 200w brushless dc motor MM753



Customized high torque bldc motor 12v 24v 48v 200w brushless dc motor MM753

Customized high torque bldc motor 12v 24v 48v 200w brushless dc motor MM753

Customized high torque bldc motor 12v 24v 48v 200w brushless dc motor MM753

DC  Motor 48V    High Speed Low Torque Brushless motor    BLDC 48V

For more information, you can visit our website

Packaging & Shipping

Customized high torque bldc motor 12v 24v 48v 200w brushless dc motor MM753

Each motor is packed in a foam box, 3pcs in a carton and 45 cartons in a pallet. If you have any special needs, please let us know, we can design packaging according to your request.

Customized high torque bldc motor 12v 24v 48v 200w brushless dc motor MM753

Our Services

Customized high torque bldc motor 12v 24v 48v 200w brushless dc motor MM753

Company Information

Customized high torque bldc motor 12v 24v 48v 200w brushless dc motor MM753

McMaster Electrics Co., Ltd is a professional company specializing in electrical and mechanical products, providing expert solutions and technical support. Our products include electrical motors, gear and gearboxes, transmissions and drive solution, HVAC fan/blower, controllers, pumps and relative components. We have been a reliable business partner for our North American and European customers since 2001. We provide high quality electrical motor, gearbox, fan/blower, controller, pump, ect. We also provide expert solutions and technical support to help your projects to be more competitive and successful. We have Headquarter and sales/service office in US, technical support/service company in China, Joint Ventures in Changzhou area and long term strategic manufacturing partners all over China. Contact us for your inquiry and you will have a pleasant and satisfied experience working with us in return.









Customized high torque bldc motor 12v 24v 48v 200w brushless dc motor MM753

DC  Motor 48V    High Speed Low Torque Brushless motor    BLDC 48V

For more information, you can visit our website
