Home > Electrical & Electronics > Electric Motor > DC Motor > OD 45 mm 24v High Speed Permanent Magnet Electric dc Motor 1500 Rpm 2500 Rpm BMM365

OD 45 mm 24v High Speed Permanent Magnet Electric dc Motor 1500 Rpm 2500 Rpm BMM365

OD 45 mm 24v High Speed Permanent Magnet Electric dc Motor 1500 Rpm 2500 Rpm BMM365 photo-1
US$ 30 - 47 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
McMaster
Place of Origin:
Jiangsu, China
Model Number:
BMM365
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Brand Name McMaster
Place of Origin Jiangsu, China
Model Number BMM365
Type Micro Motor
Certification CCC, ROHS
Torque 0.1 N.m
Usage Boat, Car, Home Appliance
Construction Permanent Magnet
Efficiency IE 2
Protect Feature Totally Enclosed
Continuous Current(A) 1.5 A - 2 A
Speed(RPM) 2000 rpm - 3000 rpm
Commutation Brushless
Product Description

OD 45 mm 24v high speed permanent magnet electric dc motor 1500 rpm 2500 rpm BMM365



OUR PRODUCTS



OD 45 mm 24v high speed permanent magnet electric dc motor 1500 rpm 2500 rpm BMM365

Product: OD 45 mm 24v high speed permanent magnet electric dc motor 24v 1500 rpm 2500 rpm 2800 rpm 3000 rpm

Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.





OD 45 mm 24v high speed permanent magnet electric dc motor 1500 rpm 2500 rpm BMM365



SPECIFICATIONS





VOLTAGE

(VDC)

NO LOAD

RATED LOAD

TORQUE

(Nm)

Power

(W)

O.D.

(mm)

LENGTH

(mm)

CURRENT

(A)

SPEED

(r/min)

CURRENT

(A)

SPEED

(r/min)

BMM365-1

28

0.3

3200

1.4

2800

0.08

23

45

74

BMM365-2

24

0.3

3600

1.8

3000

0.1

31

45

79

BMM365-3

24

0.2

2200

1.4

1700

0.1

18

45

79

BMM365-4

28

0.25

3000

1.6

2500

0.1

26

45

79

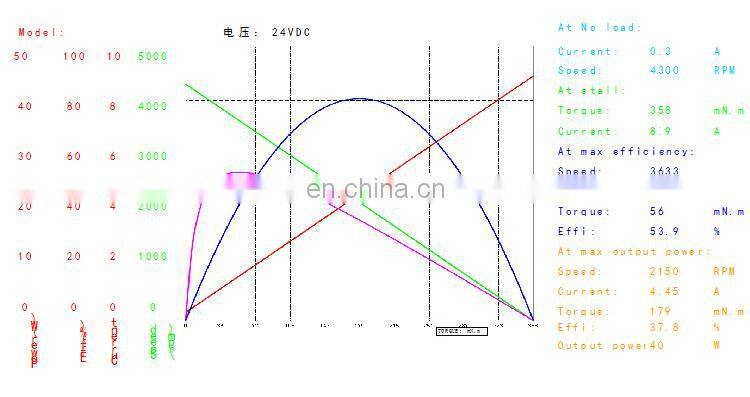

PERFORMANCE CURVE

OD 45 mm 24v high speed permanent magnet electric dc motor 1500 rpm 2500 rpm BMM365

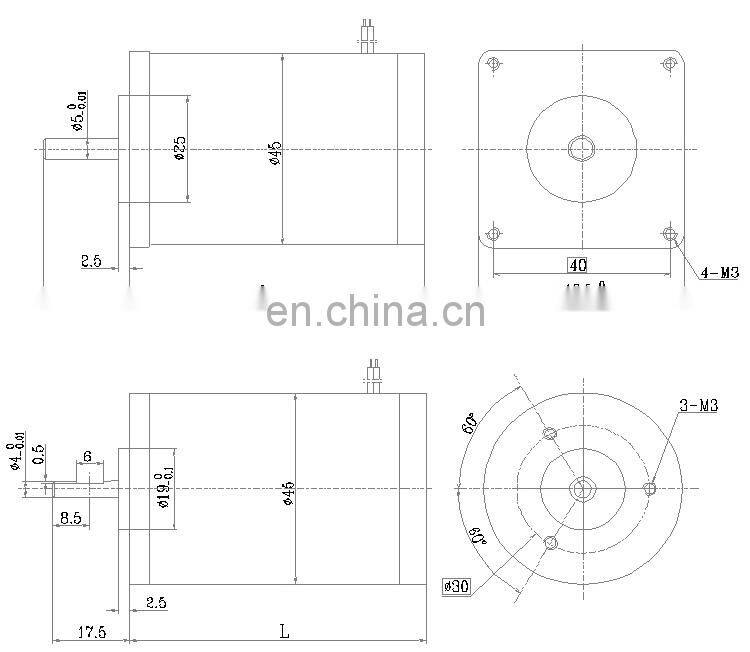

OUTLINE DRAWING

OD 45 mm 24v high speed permanent magnet electric dc motor 1500 rpm 2500 rpm BMM365

SIMILAR PRODUCT



Similar Power







BMM304

BMM309

BMM368

BMM372





Similar Torque









BMM309

BMM357

BMM372







Similar OD













BMM362











For more information, you can visit our website

Packaging & Shipping

Each motor is packed in a foam box, 3pcs in a carton and 45 cartons in a pallet. If you have any special needs, please let us know, we can design packaging according to your request.

OD 45 mm 24v high speed permanent magnet electric dc motor 1500 rpm 2500 rpm BMM365

Our Services

OD 45 mm 24v high speed permanent magnet electric dc motor 1500 rpm 2500 rpm BMM365

Company Information

OD 45 mm 24v high speed permanent magnet electric dc motor 1500 rpm 2500 rpm BMM365

McMaster Electrics Co., Ltd is a professional company specializing in electrical and mechanical products, providing expert solutions and technical support. Our products include electrical motors, gear and gearboxes, transmissions and drive solution, HVAC fan/blower, controllers, pumps and relative components. We have been a reliable business partner for our North American and European customers since 2001. We provide high quality electrical motor, gearbox, fan/blower, controller, pump, ect. We also provide expert solutions and technical support to help your projects to be more competitive and successful. We have Headquarter and sales/service office in US, technical support/service company in China, Joint Ventures in Changzhou area and long term strategic manufacturing partners all over China. Contact us for your inquiry and you will have a pleasant and satisfied experience working with us in return.



FAQ



OD 45 mm 24v high speed permanent magnet electric dc motor 1500 rpm 2500 rpm BMM365

1. Q: Can you provide detailed technical data and drawing?

A: Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to you for your evaluation and confirm.

2. Q: Can I visit your factory before we place an order?

A: Yes, you are welcome to visit our factory. We are very pleased if we have the chance to know more about each other.

3. Q: How to control the products quality in your company?

A: With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of our products is well controlled and consistent.
