OD 63 mm 12v 70w Electric dc Motor 3000 Rpm 4000 Rpm Brushed 24v High Speed Permanent Magnet Motor BMM375

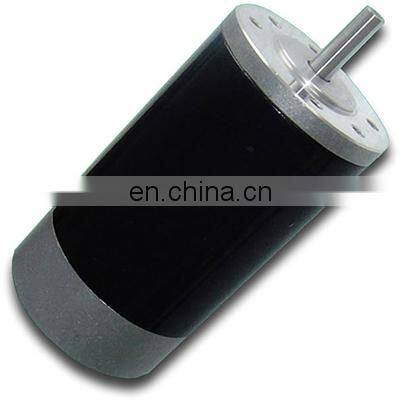

OD 63 mm 12v 70w Electric dc Motor 3000 Rpm 4000 Rpm Brushed 24v High Speed Permanent Magnet Motor BMM375 photo-1
OD 63 mm 12v 70w Electric dc Motor 3000 Rpm 4000 Rpm Brushed 24v High Speed Permanent Magnet Motor BMM375 photo-2
US$ 25 - 42 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
McMaster
Place of Origin:
Jiangsu, China
Model Number:
BMM375
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Brand Name McMaster
Place of Origin Jiangsu, China
Model Number BMM375
Type Micro Motor
Certification CCC, ROHS
Torque 0.3 N.m
Usage Boat, Car, Fan, Home Appliance
Construction Permanent Magnet
Efficiency IE 2
Protect Feature Totally Enclosed
Continuous Current(A) 4 A - 10 A
Speed(RPM) 3000 rpm 4000 rpm
Commutation Brush
Product Description

OD 63 mm 12v 70w electric dc motor 3000 rpm 4000 rpm brushed 24v high speed permanent magnet motor  BMM375



OUR PRODUCTS



OD 63 mm 12v 70w electric dc motor 3000 rpm 4000 rpm brushed 24v high speed permanent magnet motor  BMM375

Product:OD 63 mm 12v 70w electric dc motor 3000 rpm 4000 rpm brushed 24v high speed permanent magnet motor

Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.





OD 63 mm 12v 70w electric dc motor 3000 rpm 4000 rpm brushed 24v high speed permanent magnet motor  BMM375



SPECIFICATIONS





VOLTAGE

(VDC)

NO LOAD

RATED LOAD

TORQUE

(Nm)

Power

(W)

O.D.

(mm)

LENGTH

(mm)

CURRENT

(A)

SPEED

(r/min)

CURRENT

(A)

SPEED

(r/min)

BMM375-1

12

1.2

4000

10

3000

0.24

75

63

127

BMM375-2

24

0.8

4500

4.5

3800

0.18

72

63

117

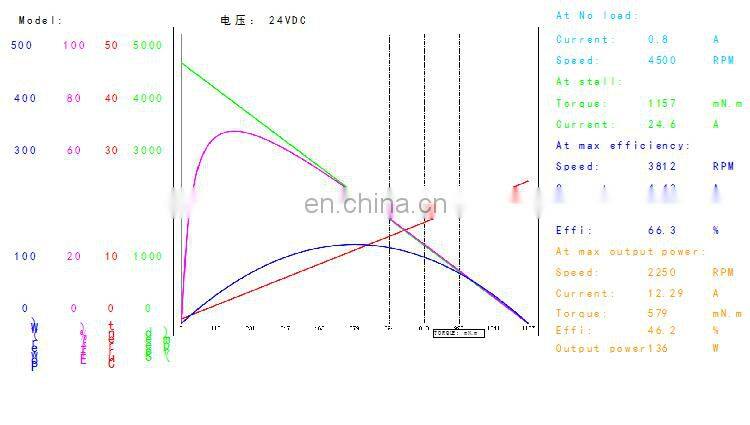

PERFORMANCE CURVE

OD 63 mm 12v 70w electric dc motor 3000 rpm 4000 rpm brushed 24v high speed permanent magnet motor  BMM375

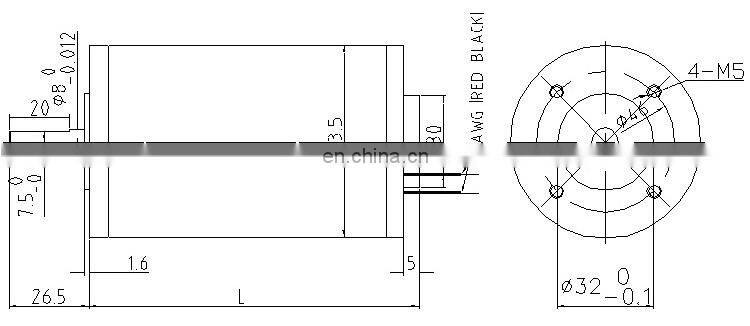

OUTLINE DRAWING

OD 63 mm 12v 70w electric dc motor 3000 rpm 4000 rpm brushed 24v high speed permanent magnet motor  BMM375

SIMILAR PRODUCT



Similar Power











BMM376

BMM384









Similar OD











BMM376

BMM377









For more information, you can visit our website

Packaging & Shipping

OD 63 mm 12v 70w electric dc motor 3000 rpm 4000 rpm brushed 24v high speed permanent magnet motor  BMM375

Each motor is packed in a foam box, 3pcs in a carton and 45 cartons in a pallet. If you have any special needs, please let us know, we can design packaging according to your request.

OD 63 mm 12v 70w electric dc motor 3000 rpm 4000 rpm brushed 24v high speed permanent magnet motor  BMM375

Our Services

OD 63 mm 12v 70w electric dc motor 3000 rpm 4000 rpm brushed 24v high speed permanent magnet motor  BMM375

Company Information

OD 63 mm 12v 70w electric dc motor 3000 rpm 4000 rpm brushed 24v high speed permanent magnet motor  BMM375

McMaster Electrics Co., Ltd is a professional company specializing in electrical and mechanical products, providing expert solutions and technical support. Our products include electrical motors, gear and gearboxes, transmissions and drive solution, HVAC fan/blower, controllers, pumps and relative components. We have been a reliable business partner for our North American and European customers since 2001. We provide high quality electrical motor, gearbox, fan/blower, controller, pump, ect. We also provide expert solutions and technical support to help your projects to be more competitive and successful. We have Headquarter and sales/service office in US, technical support/service company in China, Joint Ventures in Changzhou area and long term strategic manufacturing partners all over China. Contact us for your inquiry and you will have a pleasant and satisfied experience working with us in return.



FAQ



OD 63 mm 12v 70w electric dc motor 3000 rpm 4000 rpm brushed 24v high speed permanent magnet motor  BMM375

1. Q: Can you provide detailed technical data and drawing?

A: Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to you for your evaluation and confirm.

2. Q: Can I visit your factory before we place an order?

A: Yes, you are welcome to visit our factory. We are very pleased if we have the chance to know more about each other.

3. Q: How to control the products quality in your company?

A: With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of our products is well controlled and consistent.
