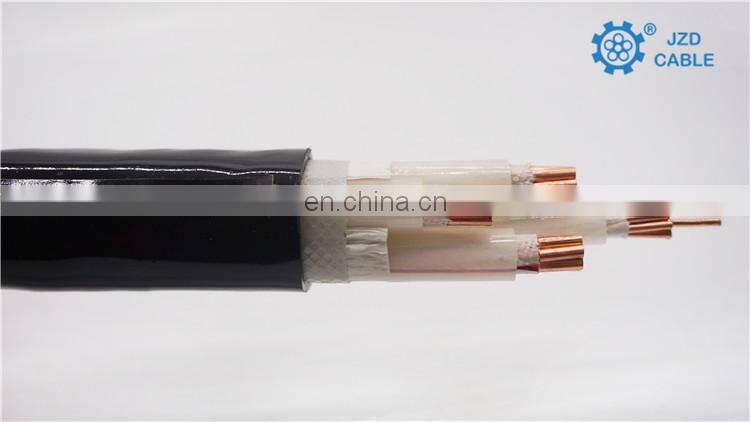

10 16 25 35mm2 Copper Conductor Xlpe Insulated Pvc Sheathed Power Cable Hot Selling Factory Price
- SHENZHEN
- T/T Credit Card
You May Like
-
5 Core 10mm 16mm 25mm 35mm 50mm Copper Conductor Xlpe Insulated Pvc Sheathed Power Cable
-
Hot Product 4 Core 95mm Xlpe Sheath Copper Wire dc Electric Power Cable
-
Customized 4 Core Cable Aluminum Conductor Armored Power Cable
-
High Quality Rvv 4x0.75mm2 4 Core Wire
-
3 Core Flexible Electric Wire Cable With Low Price
-
3 Core Flexible Electric Wire Cable With Low Price
Product Details
| Brand Name | JZD | Place of Origin | Guangdong, China | |
| Model Number | YJLV | Type | Low Voltage | |
| Application | Construction | Insulation Material | XLPE | |
| Conductor Material | Copper |
Product Description

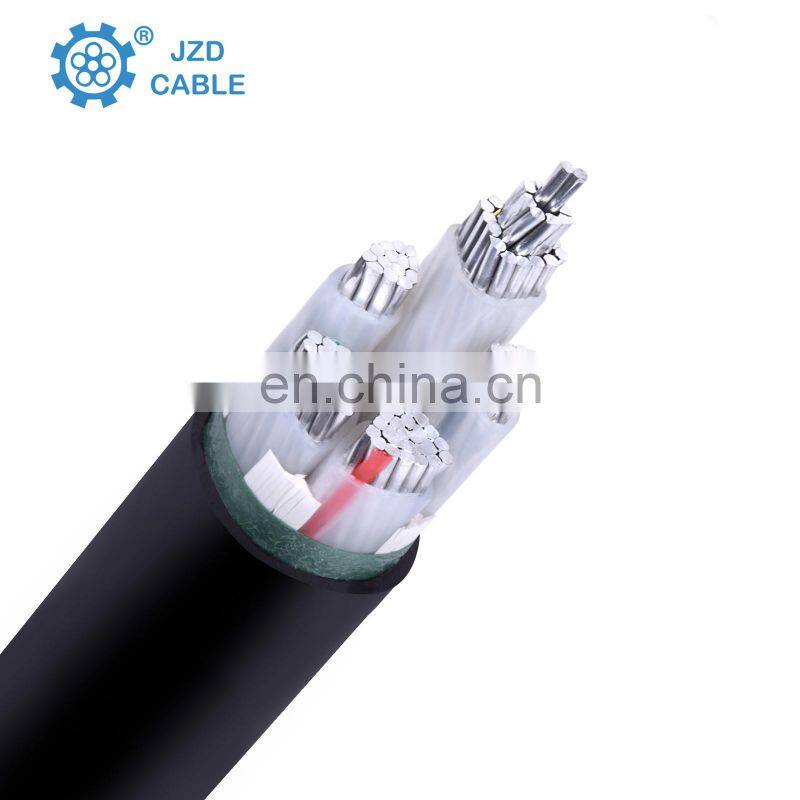

customized 4 core cable aluminum conductor armored power cable
Product feature and purpose:
Cross-linked polyethylene insulated power cables is characterized with high mechanical strength,strong resistance to environmental stress,excellent electrical properties ,powerful resistance to
chemical attack.In addition,the light and simple products are user-friendly.This product is suitable and designed for power transmission and distribution system of rated voltage 0.6/1kv.In terms
of the main feature of anti-flaming cable,the cable is not liable to ignite or continued ignition is only limited to a certain scope applicable to power station ,subway ,tunnel ,high-rise building,large
industrial and mining enterprise,oil field,coal mine and other places of intensive distributed electric cables.
Operative standard:
GB/T 12706,IEC 60502 and relevant domestic and international standard.For example,BS,VDE,JIS,AEIC,and so on.
Operational performance:
The maximum allowable operating temperature of the cable conductor:90 C in normal condition and 250 C in case of short circuit (maximum duration of short circuit is 5s).
NO.of cores×section (mm²) | Normal insulation thickness(mm) | Normal thickness of oversheath | Approximate overall diameter of cable(mm) | Approximate weight of cable(kg/km) | ||||||
| Cu | AL | |||||||||
| Unarmoured | Armoured | Unarmoured | Armoured | YJV | YJV22 | YJLV | YJLV22 | |||
| 4×4 | 0.7 | 1.8 | 1.8 | 12.5 | 18.1 | 282 | 430 | / | / | |
| 4×6 | 0.7 | 1.8 | 1.8 | 14.7 | 17 | 383 | 545 | / | / | |
| 4×10 | 0.7 | 1.8 | 1.8 | 16.9 | 19.1 | 565 | 752 | 390 | 517 | |
| 4×16 | 0.7 | 1.8 | 1.8 | 19.3 | 21.6 | 783 | 1020 | 416 | 663 | |
| 4×25 | 0.9 | 1.8 | 1.8 | 23.5 | 25.7 | 1241 | 1502 | 593 | 902 | |
| 4×35 | 0.9 | 1.8 | 1.8 | 26.7 | 28.7 | 1631 | 1957 | 776 | 1096 | |
| 4×50 | 1.0 | 1.8 | 1.9 | 28.0 | 32.6 | 2080 | 2812 | 961 | 1770 | |
| 4×70 | 1.1 | 2.0 | 2.1 | 33.2 | 37.5 | 2952 | 3796 | 1302 | 2222 | |
| 4×95 | 1.1 | 2.1 | 2.3 | 38.0 | 42.6 | 3970 | 4962 | 1693 | 2757 | |
| 4×120 | 1.2 | 2.3 | 2.4 | 40.9 | 46.4 | 4894 | 5913 | 2077 | 3363 | |
| 4×150 | 1.4 | 2.4 | 2.6 | 46.0 | 51.3 | 5980 | 7170 | 2852 | 3878 | |
| 4×185 | 1.6 | 2.6 | 2.7 | 52.5 | 57.8 | 7442 | 8802 | 3173 | 4618 | |
| 4×240 | 1.7 | 2.8 | 3.0 | 59.4 | 64.6 | 9764 | 11289 | 4032 | 5782 | |
| 4×300 | 1.8 | 3.0 | 3.1 | 66.2 | 71.6 | 12122 | 13856 | 4924 | 6735 | |
| 4×400 | 2.0 | 3.3 | 3.4 | 73.8 | 80.3 | 15624 | 18407 | 6272 | 9313 | |
| 4×500 | 2.2 | 3.5 | 3.7 | 89.3 | 96 | 19877 | 23264 | 7667 | 11062 | |
| 4×630 | 2.4 | 3.8 | 4.0 | 99.6 | 106.3 | 25124 | 28895 | 9514 | 13293 | |
