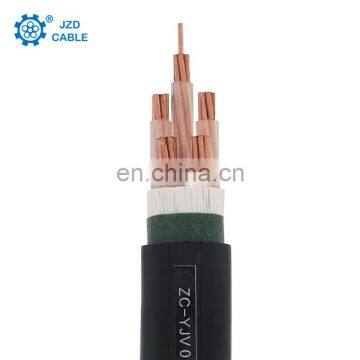

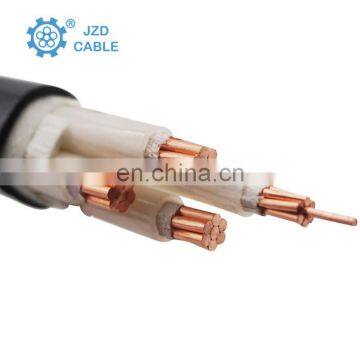

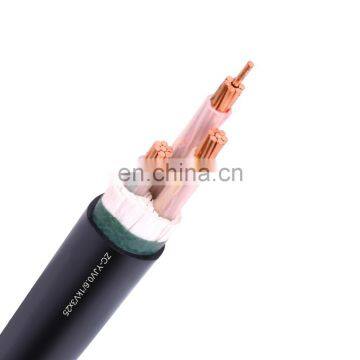

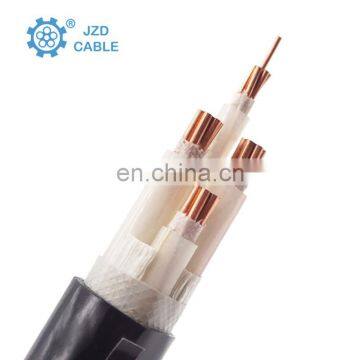

Help CenterChina Factory Armoured Cable 10mm 3 Core Cable
Related Products
-
120mm2 150mm2 185mm2 240mm2 300mm2 Pvc Xlpe Insulated Power Cable Hot Selling Factory PriceUS$ 1 - 3MOQ: 100 Meters -
Armoured Cable Colours 3 Core 4 Core 16mm2 Steel Tap Underground Power CableUS$ 2.2 - 3.1MOQ: 100 Meters
-
Xlpe Insulated Copper Electric Power Cable Armored 0.6 / 1kvUS$ 1.5 - 15MOQ: 100 Meters
-
Fire Resistant 4 Core 10mm 120mm2 150mm 240mm 300mm2 cu Swa Pvc Copper Armoured Xlpe Cable PricesUS$ 0.35 - 5MOQ: 100 Meters
-
Underground Power Cable Copper XLPE PVC Insulation LSZH 3 Core 16MM Armored CableUS$ 0.35 - 5MOQ: 100 Meters
Product feature and purpose:
Cross-linked polyethylene insulated power cables is characterized with high mechanical strength,strong resistance to environmental stress,excellent electrical properties ,powerful resistance to
chemical attack.In addition,the light and simple products are user-friendly.This product is suitable and designed for power transmission and distribution system of rated voltage 0.6/1kv.In terms
of the main feature of anti-flaming cable,the cable is not liable to ignite or continued ignition is only limited to a certain scope applicable to power station ,subway ,tunnel ,high-rise building,large
industrial and mining enterprise,oil field,coal mine and other places of intensive distributed electric cables.
Operative standard:
GB/T 12706,IEC 60502 and relevant domestic and international standard.For example,BS,VDE,JIS,AEIC,and so on.
Operational performance:
The maximum allowable operating temperature of the cable conductor:90 C in normal condition and 250 C in case of short circuit (maximum duration of short circuit is 5s).
ppp
| Three core cable | |||||||||
|
NO.of cores×section (mm²) |
Normal insulation thickness(mm) |
Normal thickness of oversheath |
Approximate overall diameter of cable(mm) |
Approximate weight of cable(kg/km) | |||||
| Cu | AL | ||||||||
| Unarmoured | Armoured | Unarmoured | Armoured | YJV | YJV22 | YJLV | YJLV22 | ||
| 3×4 | 0.7 | 1.8 | 1.8 | 12.0 | 14.5 | 223 | 365 | / | / |
| 3×6 | 0.7 | 1.8 | 1.8 | 13.1 | 15.6 | 297 | 452 | / | / |
| 3×10 | 0.7 | 1.8 | 1.8 | 15.9 | 18.4 | 446 | 637 | 226 | 457 |
| 3×16 | 0.7 | 1.8 | 1.8 | 18.1 | 20.6 | 638 | 858 | 355 | 575 |
| 3×25 | 0.9 | 1.8 | 1.8 | 21.8 | 24.3 | 959 | 1211 | 500 | 750 |
| 3×35 | 0.9 | 1.8 | 1.8 | 24.3 | 26.8 | 1275 | 1559 | 633 | 913 |
| 3×50 | 1.0 | 1.8 | 1.9 | 23.5 | 26.6 | 1570 | 1884 | 744 | 1097 |
| 3×70 | 1.1 | 1.9 | 2.0 | 26.8 | 30.0 | 2184 | 2547 | 1003 | 1419 |
| 3×95 | 1.1 | 2.0 | 2.2 | 32.1 | 36.4 | 2966 | 3691 | 1286 | 2186 |
| 3×120 | 1.2 | 2.1 | 2.3 | 34.1 | 38.4 | 3654 | 4405 | 1592 | 2578 |
| 3×150 | 1.4 | 2.3 | 2.4 | 38.9 | 44.4 | 4584 | 5554 | 1954 | 3105 |
| 3×185 | 1.6 | 2.4 | 2.6 | 42.3 | 47.5 | 5673 | 6684 | 2426 | 3671 |
| 3×240 | 1.7 | 2.6 | 2.8 | 47.7 | 52.9 | 7277 | 8510 | 3048 | 4447 |
| 3×300 | 1.8 | 2.7 | 2.9 | 52.2 | 57.3 | 9080 | 10399 | 3786 | 5289 |
| 3×400 | 2.0 | 3.0 | 3.2 | 68.5 | 75.0 | 11958 | 14531 | 4875 | 7400 |
| 3×500 | 2.2 | 3.2 | 3.4 | 76.1 | 82.4 | 14927 | 17754 | 5856 | 8604 |
| 3×630 | 2.4 | 3.5 | 3.7 | 84.9 | 91.4 | 18863 | 22052 | 7156 | 10352 |
