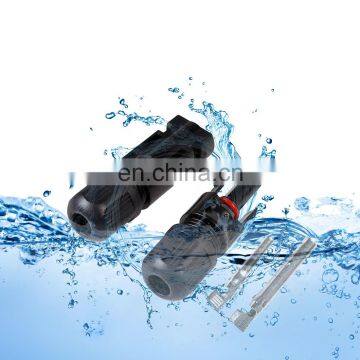

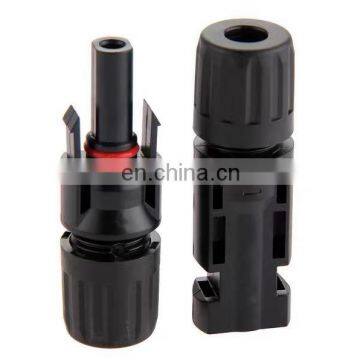

1500V TUV Waterproof IP67 Solar Connector DC PV Connector for Solar PV System
US$ 0.3 - 1
/ Piece
1000 Pieces(Min. Order)
- SHEN ZHEN
- T/T Credit Card
You May Like
-
Waterproof and Silver Tinned Copper Cable Solar Panel Connector Solar PV Connector Ip67
-
Waterproof MC 4 Solar Connector for PV Energy System
-
JZD Power Solar Connectors M-C-4 Male/Female IP67 Solar Connectors
-
1 Male to 3 Female and 1 Female to 3 Male Solar Panel M-C-4 T Branch Connectors Cable Coupler Combiner
-
1 Male to 4 Female(M/4F) and 1 Female to 4 Male(F/4M) 1 Pair Solar Energy Panel MC-4 T Branch Connectors Cable Coupler Combiner
-
Solar Panel Connector Y Branch 2Y 3Y 4Y Panel Cable
Product Details
| Brand Name | JZD | Place of Origin | Guangdong, China | |
| Model Number | Solar Connector | |||
Product Description
Product Features

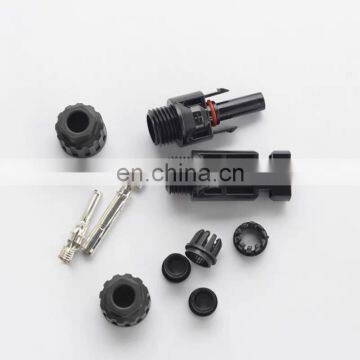

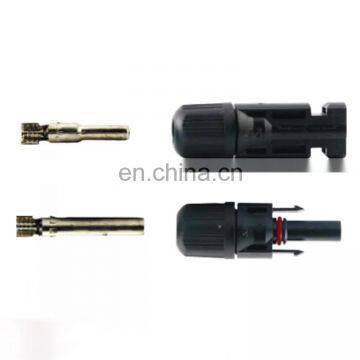

1. Solar Connector Conductor pin is tinned Copper: made of PPO + PA material, It makes a rock-solid connection after you crimp the pin to the wire. PPO INSULATION MATERIAL with excellent aging resistance and UV endurance can resist severe weather such as heavy rain, snowstorm or heat for a long time.
2. WATERPROOF RING on connection is IP67 Waterproof and resist dust build-up，perfect to seal out water and dust to prevent corrosion.
3. These solar connectors are designed to complete a solar panel (PV) array, typically in parallel applications.
4. UL certification fastness of male and female points with a stable self-locking system which is easy to lock and open.anti-aging and resistance to ultraviolet radiation.
5. Solar panel solar connectors compatible with PV cables with different insulation diameters, Suitable for: (2.5m㎡--6m㎡/14AWG -10AWG).
Rated Voltage | TUV 1000V DC |
Rating Current | 20A~ 25A |
Test Voltage | 6KV(50Hz) |
Pin dimension | 4.0mm |
Pollution degree | 2 |
Protection class Class | II |
Contact Resistance | 5mW |
Connector Material | PPO |
Withdrawal Force | 3 50N |
Insertion Force | 50N |
Flame Class | UL94V-0 |
Temperature Range | -40*C~+85°C |
Contact Material | Copper, sliver-plated |
Degree of Protection | IP IP67(IEC 60529) |
Suitable able cross sections | 2.5mm2~6.0mm2/ 14AWG~10AWG |
FAQ:
We are a professional manufacturer. We can control your order from the first begining to the last.
Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
