CNC Router Machine Wood Carving Machine Acrylic Cutting Sign Furniture Industry

CNC Router Machine Wood Carving Machine Acrylic Cutting Sign Furniture Industry thumbnail-1

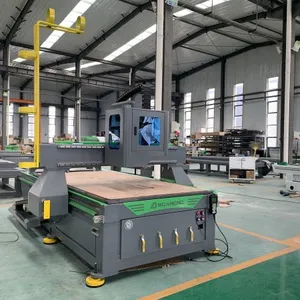

CNC Router Machine Wood Carving Machine Acrylic Cutting Sign Furniture Industry thumbnail-2

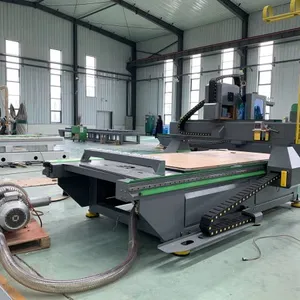

CNC Router Machine Wood Carving Machine Acrylic Cutting Sign Furniture Industry thumbnail-3

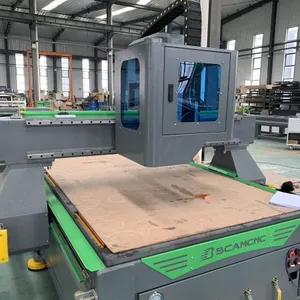

CNC Router Machine Wood Carving Machine Acrylic Cutting Sign Furniture Industry thumbnail-4
CNC Router Machine Wood Carving Machine Acrylic Cutting Sign Furniture Industry photo-1

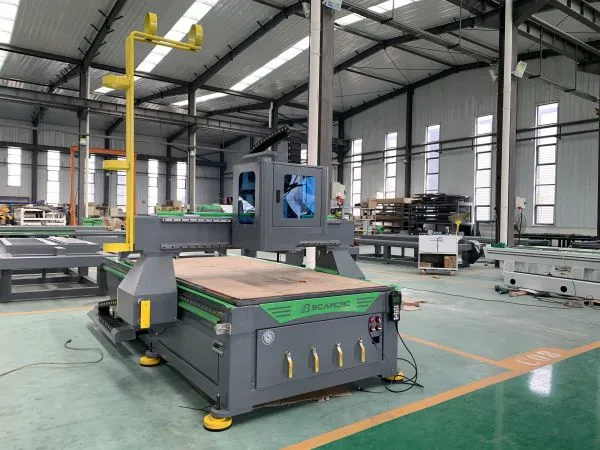

CNC Router Machine Wood Carving Machine Acrylic Cutting Sign Furniture Industry photo-2

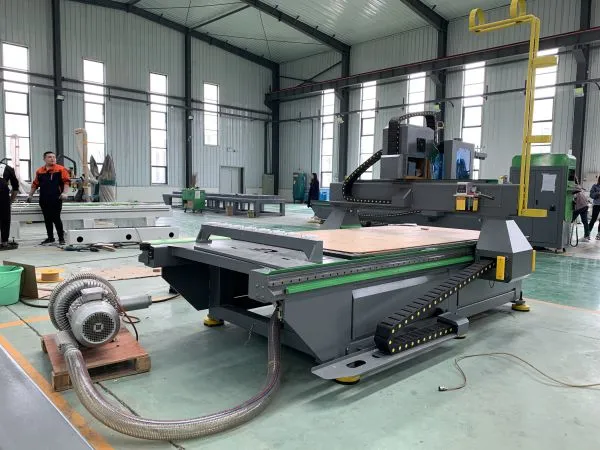

CNC Router Machine Wood Carving Machine Acrylic Cutting Sign Furniture Industry photo-3

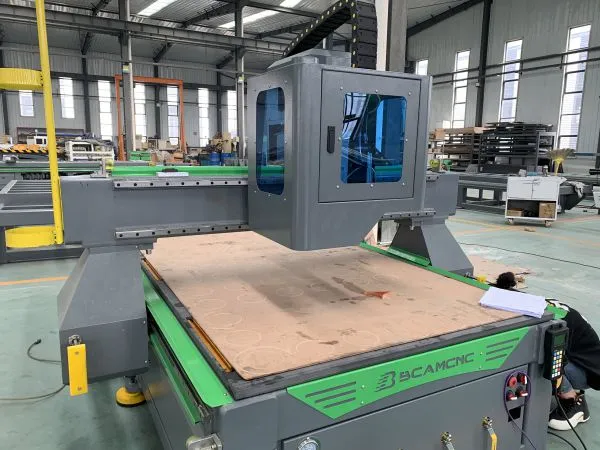

CNC Router Machine Wood Carving Machine Acrylic Cutting Sign Furniture Industry photo-4
US$ 9980 - 10880 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BCAMCNC
Place of Origin:
China
Model Number:
BCM1325CE
Contact Supplier Request Quote Chat Now
Jinan Bcamcnc Machinery Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BCAMCNC
Place of Origin China
Model Number BCM1325CE
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 3 Years
Weight 1800KG
Dimension(L*W*H) 3440*2250*2100mm
Voltage 380V/220V
Condition New
Power(W) 21.0kw
CNC or Not CNC
Product Description
Parameters
Standard Specifications BCM1325CE
X,Y,Z Working Area
1300*2500*200mm|4*8ft
Optional Working Area
1300*1300*200mm|4*4ft
1500*3000*200mm|5*10ft
2000*3000*200mm|6*10ft
2000*4000*200mm|6*13ft
2000*6000*200mm|6*20ft
Spindle Power
9.0kw HQD air cooling spindle
X,Y,Z Traveling Positioning Accuracy
±0.01/2000mm
Table Surface
Vacuum table+Intergrated T-solt table clamping System
X,Y,Z Rail and Trasmission
X Y axis gear transmission, Z axis TaiwanTBI Ball Screw
Max. Rapid Travel Rate
90m/min
Max. Working Speed
70m/min
Cutting thickness
According materials
Spindle Speed
6000-24000RPM
Drive Motors
Japanese Yaskawa Servo Drive System
Working Voltage
AC380v/50HZ/3 phase
Command Language
G code
Operating System
Nc-studio control system
Interface
USB
Software Compatibility
Option:Vcarve, Type3, Ucancam, Alphacam, Aspire, solidworks,etc.
Running Environment
Temperature: -20℃~45℃ Relative Humidity: 5%~75%
Specification

●  Working area: 1300*2500*200mm|4′*8′

●  CE standard

●  HQD 9.0KW spindle (ISO30)

● Taiwan Syntec 60W-E

●  Active protection safety system

●  Helical rack and pinion on X and Y axis, Z axis Taiwan TBI ball screw transmission

●  25mm Hiwin HG Series linear bearing

●  Vacuum table+T-solt table

●  Japan Yaskawa servo motor and drivers

●  Delta brand VFD-B inverter

●  Air-tech pro Dust-free extraction hood

●  3 Years Warranty


Details Images
Product Usage

Engineer after sale in Dubai
The quality of every BCAM Linear ATC CNC router is excellent. Every BCAM C series CNC router carries a full year warranty and our
great technical team support! You will find out many advantages after you have used our CNC router. If you are a small and middle
shop our CNC router is a best choice for you. Our goal is offer you more and cost you less!


Engineer after sale in Belgium
High-performance all-round machinery with extraordinary value, but at a very economical price. With linear tool changer, constructed with world-class components, consistent high performance.
Austrian customers
Following my purchase of a BCAM CNC Router 4 years ago, , I have just taken delivery of a Bcam flat bed router. Installation and set up was in a tricky location but Rob and Alex did a great job in installing the machine and setting it up. Extremely professional and a reasuringly high level of technical expertise sorting out some small installation niggles. Long may this level of support continue. Its early days but the machine is working as it should, is well built and cuts beautifully. Thanks once again BCAM .
Related Products
Similar Items
BCAM woodworking automatic edge banding machine$3,250.00 - $6,200.00 / Set1 Set
BCAMCNC Good character 1325 woodworking cnc router machine furniture industry$16,280.00 - $16,880.00 / Set1 Set
BCAMCNC 3d cnc milling wood moulder carving machine Economic 1325 model 3d wood making machine big 4 axis cnc$6,999.00 - $7,399.00 / Set1 Set
Company Introduction

Our Services & Strength

36 months guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.

Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
Software is on update for free whole life.
Our engineer could support you technology to your country if necessary.
Our enginner could service on weekend even on vacation.
Our engineer could train you in our factory for free.
Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.
English manual and CD video for machine using and maintaining will send to you with the machine.

FAQ
Q1. Delivery time of CNC router machine?
Aplus and S series standard size and configuration CNC router machine delivery time is 5 days, C,D,E series machine delivery time
is 7 days, F,4 axis and 5 axis series machine delivery time is 20 days. So we suggestion client pay 100% money, because we can can
arrange machine delivery immediately.
Q2. Can you sent machine to my home?
Yes, we have cooperation long time shipping agent, famous team in China, them can offer FCA,FOB, CIF, DDU, DDP price, usual
suggest receiver address is Business district, usual less big car drive in the Civil area.
Q3. This is the first time to use cnc router machine,is it easy to operate?
Yes, it is easy, if you can draw with software, the machine operate is no problem, because we will support:
1).English guide video and instruction book are sent to you free together with the cnc router.
2).Free training course in our factory. Engineers are available to serve overseas but all the expense needs being paid by your
side.
3).We have our own after-sales service team,24 hours technical support by calling, video and email.
Q4. Can you please tell me if it’s possible to make a 1325C machine with 240v single phase? If so what is the power consumption?
The power consumption of 240V/single phase and 380V/3Phase is same(but the power of a single phase voltage pump is limited to no
more than 3kw). I recommend you choose 3 2.2kw air pumps. We will adopt some machine parts different from 380V because of 240V
current will become bigger.
