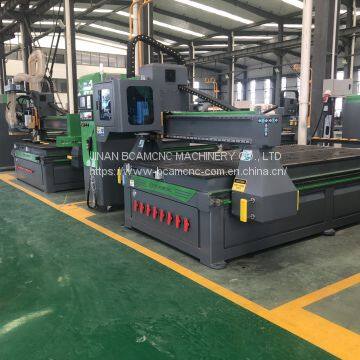

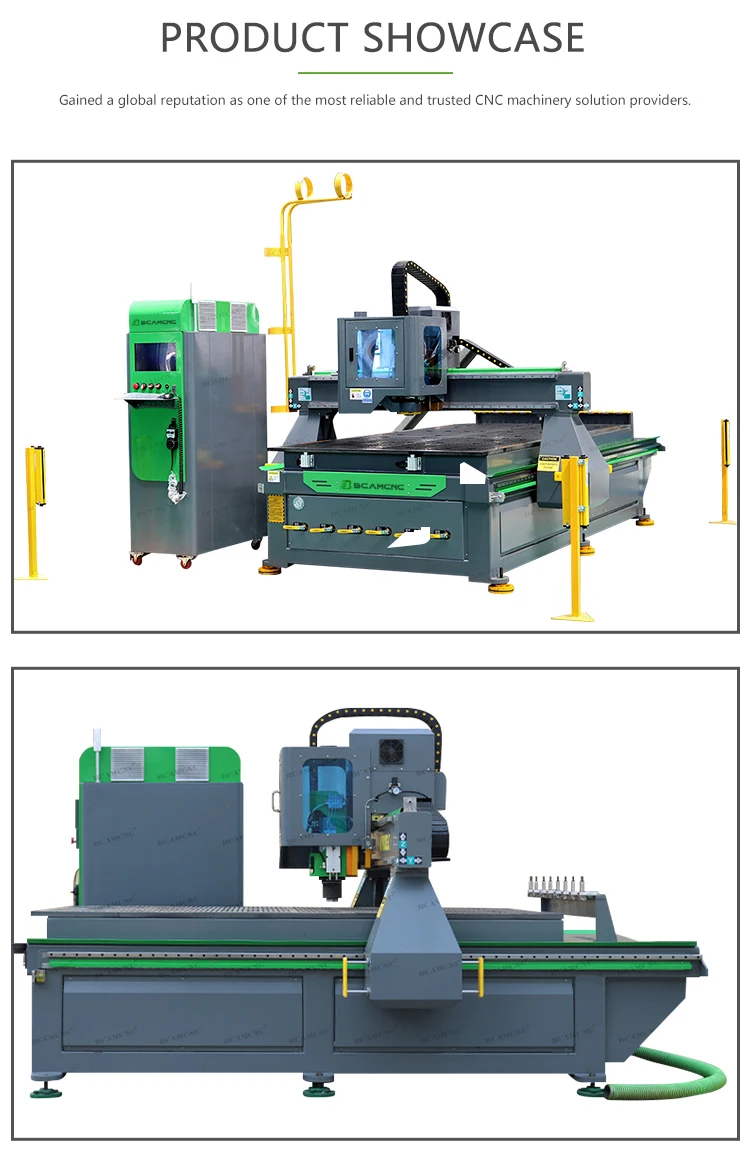

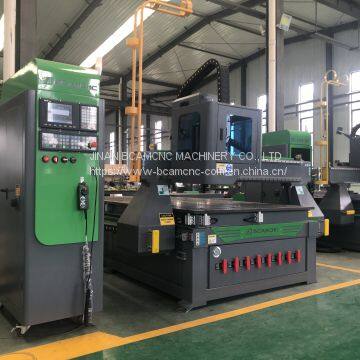

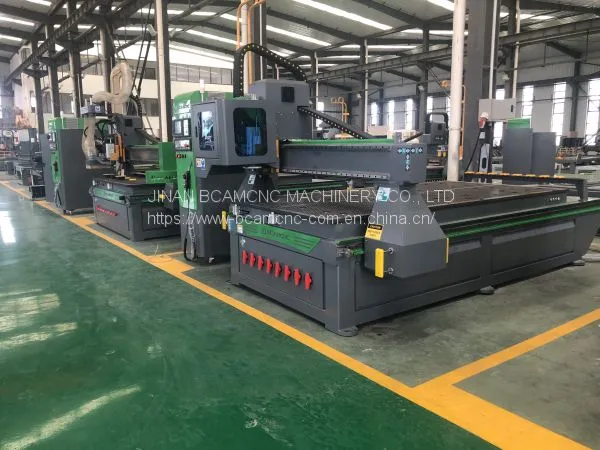

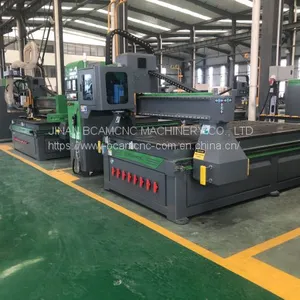

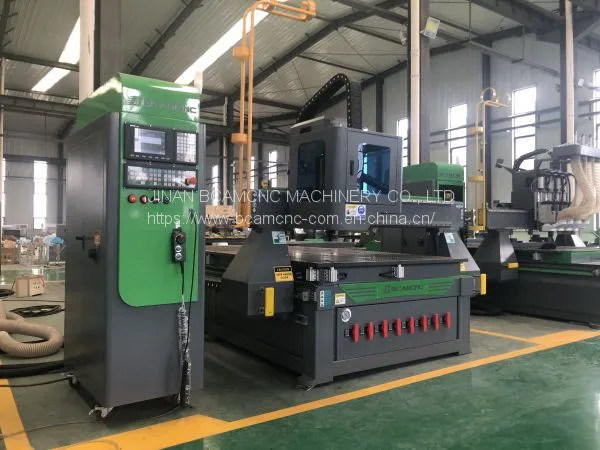

Help CenterAutomatic Tool Change BCM1325C 4th Axis Cnc Router Rotary Wood Machine
Related Products
-
CNC Router Machine Wood Carving Machine Acrylic Cutting Sign Furniture IndustryUS$ 9980 - 10880MOQ: 1 Set -
Wood CNC Router Wood CNC Machine Woodworking Machine Furniture MachineUS$ 12280 - 13380MOQ: 1 Set
-
Cnc Router Parts Kit Custom Machined Parts Laser Cutting / ShearingNegotiableMOQ: 1 Piece
-
CNC Router CNC Milling Machine CNC Carving MachineUS$ 1300 - 8000MOQ: 1 Combo
-
Cnc Router WMT2040 Cnc Engraving for Metal and Wood WorkingNegotiableMOQ: 1
Click here! Inquire our ECONOMIC ATC CNC machine
FOB Price:10888$
Configuration:
Working area: 1300*2500*200mm|4´*8´
CE standard
Italian HSD 9.5KW(12HP) Electrospindle with 8-position Automatic Tool Changer(ISO30)
10mm Heavy duty body
Active safety system
Helical rack and pinion drivers on X and Y axis, Z axis Taiwan TBI ball screw transmission
25mm Heavy-duty Hiwin HG Series linear bearing
Vacuum table+T-solts
Taiwan Syntec 6MA(options: Syntec 6MB/21MA)
Japan Yaskawa servo motor and drivers system
Delta brand VFD-B variable frenquency drive
8 Position Automatic Tool Changer (options: 10 ,12 position)
Tool Cone Holder-for east bit changing
Solid State limit switches
3 Years Warranty
Technical Parameters:
Parameters | Standard Specifications BCM1325C |
X,Y,Z Working Area | 1300*2500*200mm|4*8ft |
| Optional Working Area | 1300*1300*200mm|4*4ft |
| 1500*3000*200mm|5*10ft | |
| 2000*3000*200mm|6*10ft | |
| 2000*4000*200mm|6*13ft | |
| 2000*6000*200mm|6*20ft | |
Spindle Power | 9.5kw Italy HSD air cooling spindle |
X,Y,Z Traveling Positioning Accuracy | ±0.01/2000mm |
Table Surface | Vacuum table+Intergrated T-solt table clamping System |
X,Y,Z Rail and Trasmission | X Y axis gear transmission, Z axis TaiwanTBI Ball Screw |
Max. Rapid Travel Rate | 90m/min |
Max. Working Speed | 70m/min |
Cutting thickness | According materials |
Spindle Speed | 6000-24000RPM |
Drive Motors | Japanese Yaskawa Servo Drive System |
Working Voltage | AC380v/50HZ/3 phase |
Command Language | G code |
Operating System | Taiwan Syntec control system |
Interface | USB |
Software Compatibility | Option:Vcarve, Type3, Ucancam, Alphacam, Aspire, solidworks,etc. |
Running Environment | Temperature: -20℃~45℃ Relative Humidity: 5%~75% |
More Machine Detais:
Application industry:
1.The Advertising nidustry:
BCAM has developed a number of comprehensive CNC machining solutions and important productivity options for signmakers. The flexibility of a BCAM CNC router allows commercial sign fabricators to produce dimensional signage engrave all kinds of signage, trademark, nameplates, badge, decorative gift, embossed medal, certificate, souvenir, photo frame, furniture decoration. Additional productivity options include misters for wood, PVC, MDF, aluminum, aluminum composite panel and other non-ferrous metals.
2.Small-scale woodworking industry:
Making a cabinetmaker’s job easy. Our CNC routers have made the manufacturing of all kinds of doors(solid wood door, composite door), solid wood furniture, mahogany furniture, MDF paint door, cupboard door and window, bedside cabinet, folding screen etc. countertops, shelves, drawers and drawer fronts available to small, mid-size and large businesses alike. Operating a CNC machine allows cabinetmakers to use a manufacturing technique that improves production time, quality and consistency, as well as material yield, all utilizing a single machine and the right software system. Cabinetmaking involves all types of wood (both natural and processed), and sometimes some plastics as well.
3.Artwork industry
CNC router can process wooden carft, mural art of wood, artwood, embossed, jeweery, cometics package, musical instrument.
4.Soft metal processing:
CNC router can engrave electronic component, integrated circuit, electronic plastic case, electronic pproduct model, circuit board, electronic Light bix, computer and mobile phone keyboard, engraving a variety of electronic products.
BCMANC Information:

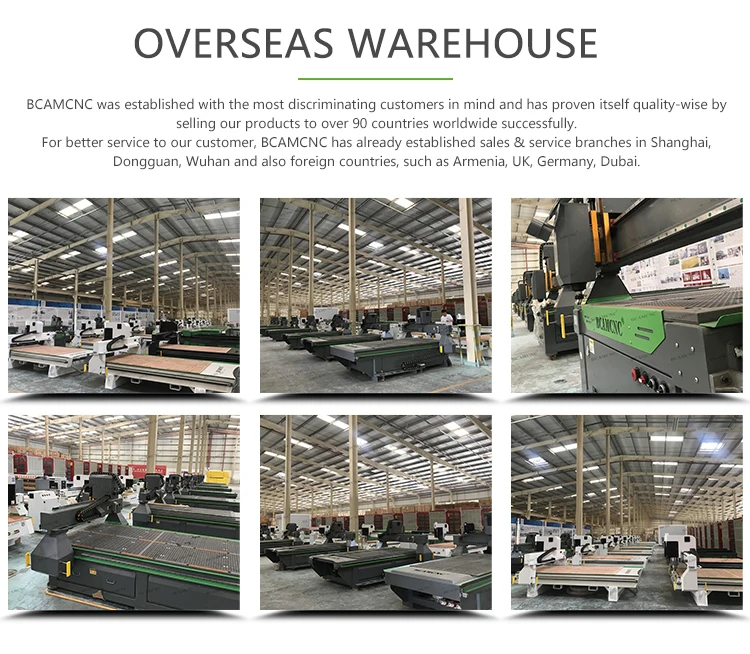

BCAM was located in Jinan,shandong province,covers the area of 6000 square meters. BCAM group is manufacturing and research and development of the company that focus on CNC engraving machine and cutting machine for many years. Now we have mature production workers more than 50 people, 8 sales teams,2 product research and development teams,2 after-sales service teams.Products exported to Europe,America,Australia,Africa,Asia. We set up an overseas warehouse in Dubai in 2017, and we have exclusive agents in Europe, France, Germany, UK, Poland and many other countries.
Our Services:
36 months guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.
Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
Software is on update for free whole life.
Our engineer could support you technology to your country if necessary.
Our enginner could service on weekend even on vacation.
Our engineer could train you in our factory for free.
Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.
English manual and CD video for machine using and maintaining will send to you with the machine.
Q1. Delivery time of CNC router machine?
Aplus and S series standard size and configuration CNC router machine delivery time is 5 days, C,D,E series machine delivery time is 7 days, F,4 axis and 5 axis series machine delivery time is 20 days. So we suggestion client pay 100% money, because we can can arrange machine delivery immediately.
Q2. Can you sent machine to my home?
Yes, we have cooperation long time shipping agent, famous team in China, them can offer FCA,FOB, CIF, DDU, DDP price, usual suggest receiver address is Business district, usual less big car drive in the Civil area.
Q3. This is the first time to use cnc router machine,is it easy to operate?
Yes, it is easy, if you can draw with software, the machine operate is no problem, because we will support:
1).English guide video and instruction book are sent to you free together with the cnc router.
2).Free training course in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side.
3).We have our own after-sales service team,24 hours technical support by calling, video and email.
Q4. Can you please tell me if it’s possible to make a 1325C machine with 240v single phase? If so what is the power consumption?
The power consumption of 240V/single phase and 380V/3Phase is same(but the power of a single phase voltage pump is limited to no more than 3kw). I recommend you choose 3 2.2kw air pumps. We will adopt some machine parts different from 380V because of 240V current will become bigger.
