1. Introduction

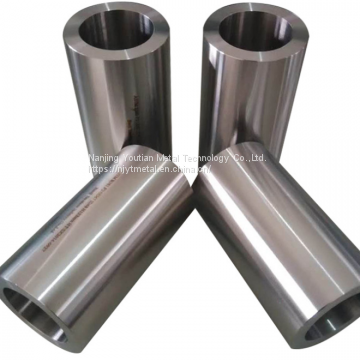

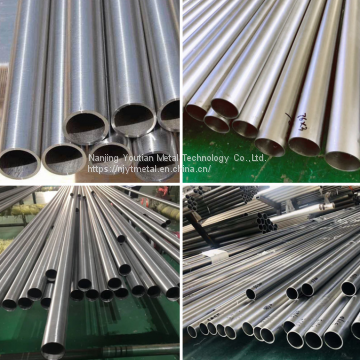

Seamless titanium tube is made of titanium or titanium alloy without welding through the formation of pipe.
2. Materials & standards
Materials | Grade 1, Grade 2, Grade 5, Grade 7, Grade 9, Grade 12 | |
Standard | Alloy titanium | Gr.1,Gr.2 |
ASTM B861, ASTM B862, ASTM B337, ASTM B338 and ASTM 4942 | Gr.5(Ti-6Al4V),Gr.7(Ti-0.2Pd), Gr.9(Ti-3Al2.5V),Gr.12(Ti-0.3Mo-0.8Ni) | |
Technique | hot rolled, cold rolled | |
States | Annealed (M) | |
Shape | Round, square, coiling | |
Surface | Pickling or Bright | |
3. Application
Titanium tube is widely used in chemical equipment, electrical equipment, desalination of sea water, salt-making equipment, ocean anti-corrosion, petroleum drilling equipment, automobile and motorcycle exhaust pipe, heat exchanger, condenser, heater distiller, reactor, separator, evaporator, etc…
4. Chemical Requirements
Grade | N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
GR 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
GR 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
GR 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
GR 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
GR 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
GR 12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
5. Physical Properties
Grade | State | Tensile strength(min) | Yeild strength (min) | Elongation (%) | ||
Ksi | MPa | ksi | MPa | |||
GR 1 | （M）Annealed | 35 | 240 | 20 | 138 | 24 |
GR 2 | （M）Annealed | 50 | 345 | 40 | 275 | 20 |
GR 5 | （M）Annealed | 130 | 895 | 120 | 828 | 10 |
GR 7 | （M）Annealed | 50 | 345 | 40 | 275 | 20 |
GR 9 | （M）Annealed | 90 | 620 | 70 | 438 | 15 |
GR 12 | （M）Annealed | 70 | 438 | 50 | 345 | 18 |
6. Production specifications
Types | OD (Outside Diameter) (mm) | Wall Thickness (mm) | Length (mm) |
Thin wall Tubes | 3 - 133 | 0.5 – 12.0 | Max. 12000 |
Thick wall Tubes | 50 - 80 | 1.0 – 100.0 | Max. 4000 |
Note: Non-standard sizes are also available.
7. Delivery
We can deliver the Titanium products according to the stock status, usually 3-25 days.
8. Packing Details
Packed with wooden case, cardboard case or according to the requirements of customers
