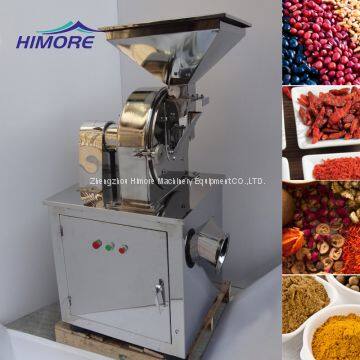

Universal Corn/Herb/Coffee/Coarse Coconut shell/Cassava leaves Grinding Machine
Introduction of Universal Corn/Herb/Coffee/Coarse Coconut shell/Cassava leaves Grinding Machine
The food grinding machine is suitable for crushing materials in pharmaceutical, food and chemical industries. It is suitable for dry material, crispy material, not suitable for sticky raw material. The machine is made up of feeding material part and crush part, and dust collect part. Its coniguration is very briefness, easy for operation.
Working principle of Universal Corn/Herb/Coffee/Coarse Coconut shell/Cassava leaves Grinding Machine:
Food pulverizer adopt the high-speed relative motion between the movable geacan be crushed through tooth impact, friction and impact between the materials. The crushed material is automatically entered into the trapping bag by the action of rotating centrifugal force, and the dust is filtered and recovered by the vacuum box through the cloth bag.
The dust from the cloth bag in the concentrating case is collected in the dust absorption case. The machine is designed according to GMP standard .
Features of Universal Corn/Herb/Coffee/Coarse Coconut shell/Cassava leaves Grinding Machine:
It is characteristic of simple structure , easy operation, low noise, high capacity.
The machine is made from stainless steel, no dust will rise when working.
The desired granule size can be obtained by installing screens with different apertures.
Technical parameter of Universal Corn/Herb/Coffee/Coarse Coconut shell/Cassava leaves Grinding Machine
Model | HMWF-18 | HMWF-20 | HMWF30 | HMWF40 | HMWF60 |
Capacity(kg/h) | 5-60 | 60-150 | 100-300 | 160-800 | 500-1500 |
Speed(r/min) | 4500 | 4500 | 4500 | 4500 | 4500 |
Feed size(mm) | <6 | <10 | <12 | <15 | <15 |
Crush size(mm) | 5-120 | 5-120 | 5-120 | 5-120 | 5-120 |
Power(kw) | 2.2 | 4 | 5.5 | 7.5 | 15 |
Voltage(V) | 220/380 | 220/380 | 380 | 380 | 380 |
Dimensions(mm) | 500*600*1000 | 550*600*1250 | 600*700*1450 | 800*900*1550 | 1000*900*1680 |
We have different type grinding mill for different use for choose:
1)Hammer type is better on little hard material like stone. If grinding grain cost a longer time.
2)Air cooling type grind and discharge quickly, and not easy heat temparature in grind chamber.
3)Turbo wheel type is best in fineness degree of flour, even oil material. Only notice its big noise.
4)Refiner disc type is main use for make food condiments, such as spice, ginger, curry flour.
5)Blade cut type has special effect on material with fiber, like herb. Flour with very high uniformity.
FAQ:
Q:What factors I need to get a quotation?
A: Material bulk density; mesh size(length & angle for conveying series); ideal capacity; granularity distribution; Machine material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.);Voltage &Frequency(Hz) require.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer, if the
damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of
cost.(note: Vulnerable parts do not include.)
For more information, please feel free to contact us:
Contact: Jessie
Email: himoremachinery@outlook.com
Skype: himoremachinery@outlook.com
Mobile/Whatsapp:+86 17337168496
Website: www.himorefoodmachinery.com
