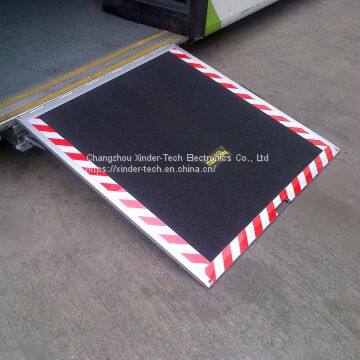

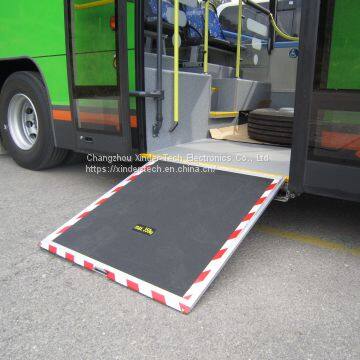

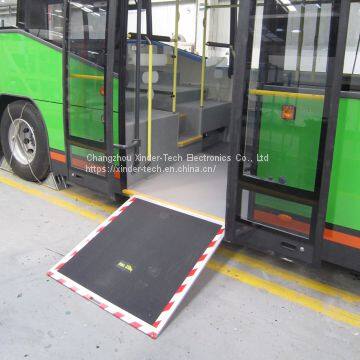

EWR-L Electric Wheelchair Ramp

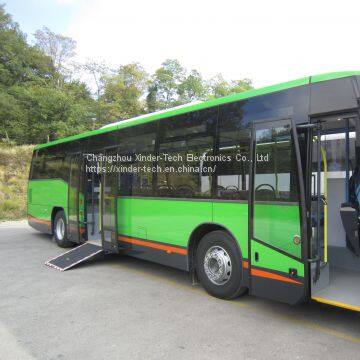

• EWR-L series electric wheelchair ramp is designed for city bus to help a person to enter bus comfortably and easily while seated in a wheelchair.

• It is installed under bus chassis, and it doesn't obstruct view, access and emergency exit.

• It is driven by motor.

• It is controlled by switch.

• Main material is aluminum, which is light and with high corrosion resistance.

• doesn't obstruct view, access and emergency exit when not in use;

• warning sound during working;

• manual backup function;

• door interlock function;

• anti-skip platform;

• ramp will stop when touch some barrier during extending out;

• optional function of 15kg loading induction;

• Voltage:   24Vdc or 12Vdc;

• Max. Driving Current:   10A

• Power: 40W;

• Max Loading Capacity: 350 Kg

• Eliminate threshold drop: 60mm

Parameters: mm
