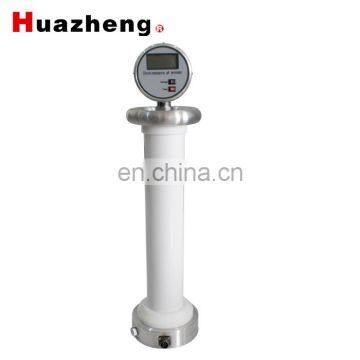

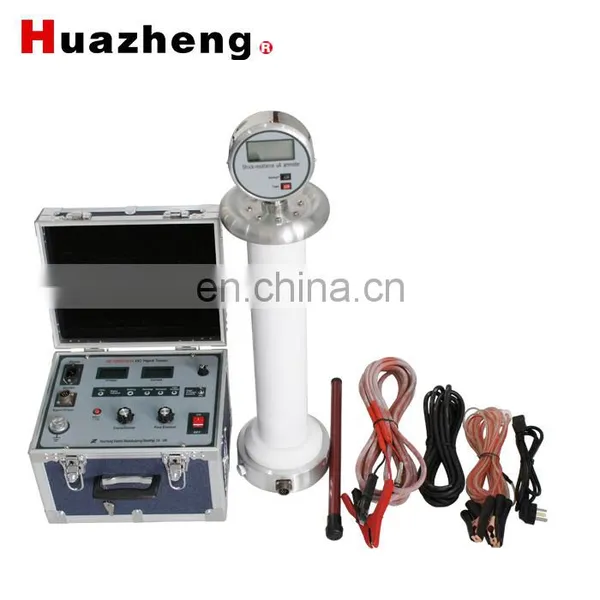

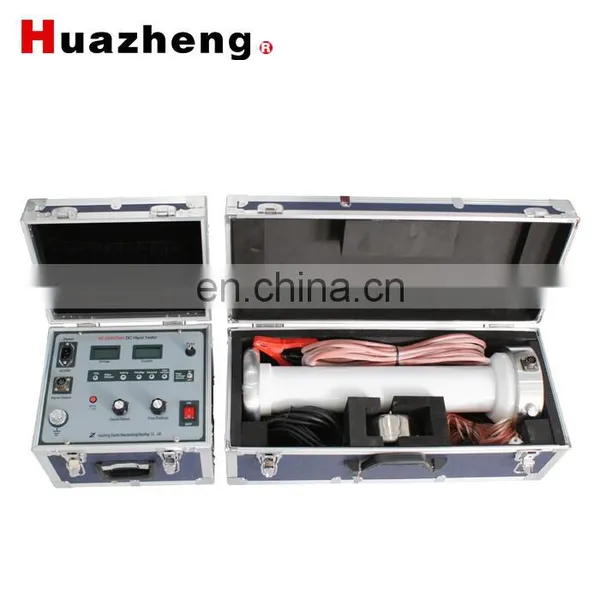

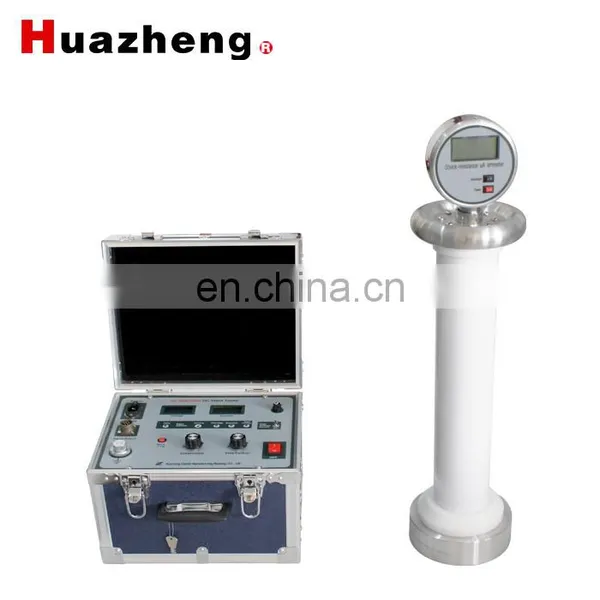

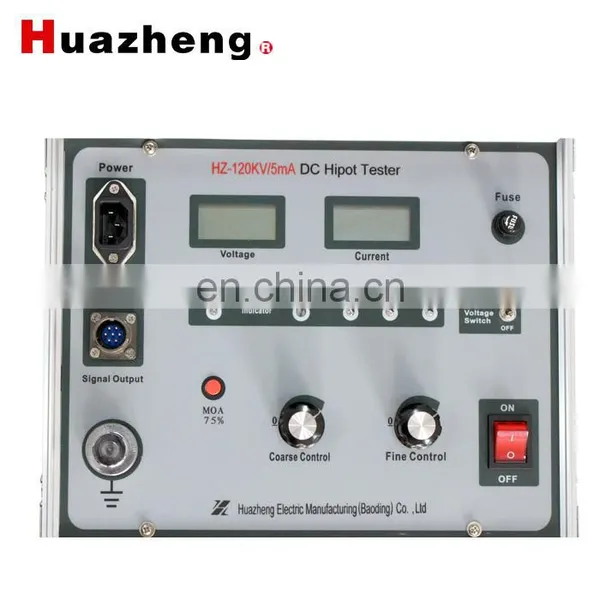

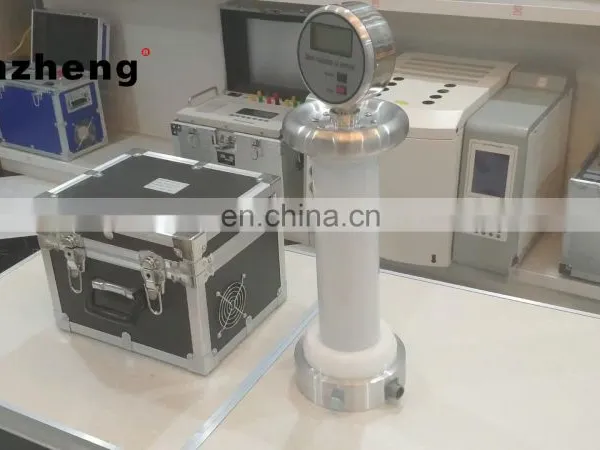

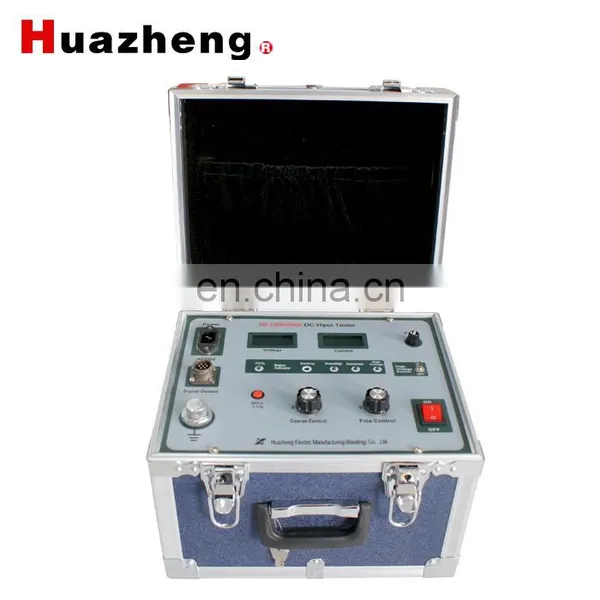

Digital high voltage generator Hi-pot Tester / DC Hipot Tester
Voltage (KV)/mA Current (mA)
| Control Box | High-Voltage Unit | |||
Rated Voltage | Size (mm) | Weight kg | Size (mm) | Weight kg | |
60/2-5 | 60KV | 310 * 250 * 230 | 5kg | 470 * 260 * 220 | 6kg |
80/2-5 | 80KV | 310 * 250 * 230 | 6kg | 490*260*220 | 8kg |
100/2-5 | 100KV | 310 * 250 * 230 | 6kg | 550*260*220 | 8kg |
120/2-5 | 120KV | 310 * 250 * 230 | 7kg | 600 * 260 * 220 | 10kg |
200/2-5 | 200KV | 310 * 250 * 230 | 8kg | 1000 * 280 * 270 | 20kg |
300/2-5 | 300KV | 310 * 250 * 230 | 9kg | 1300 * 280 * 270 | 22kg |
output polarity | Negative polarity, no-voltage start, linear continuous adjustment | ||||
working power supply | 50HZ AC220V±10% | ||||
voltage error | 0.5%±2,minimum solution 0.1KV | ||||
current error | 0.5%±2,minimum solution 0.1µA | ||||
ripple factor |
better than 0.5% | ||||
voltage stability | Random flunctuation , grid change is 10% , the flunctuation <=0.5% | ||||
working manner | Interval working, less than 30 minutes under rated load | ||||
working condition | Temperature: 0-40℃, humidity: less than 90% | ||||
storage condition | Temperature: -10℃~40℃, humidity: less than 90% | ||||
altitude | Lower than 3000 m | ||||
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
