Product Details
| Brand Name | hz | Place of Origin | China | |
| Model Number | HZJB-D | Power | Electronic |
single phase mico protection relay tester packing:wooden
Product Description
Microcomputer Control Universal Secondary Injection Relay Test Set digital protection relay tester
1.single phase relay test equipment General

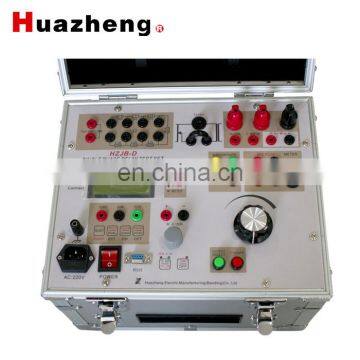

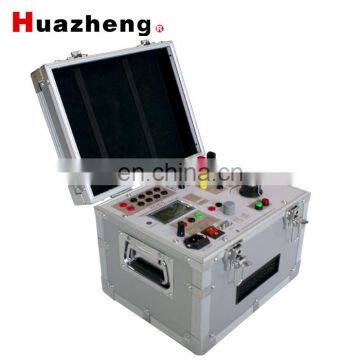

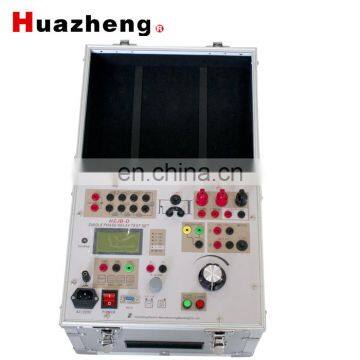

HZJB-D SINGLE PHASE RELAY TEST is a portable field testing equipment with excellent performance; Elegance and polished appearance with aluminum alloy chassis and PC panel, within the ARM chip control, LCD screen display voltage and current output stopwatch, it could output a full isolation way for adjustable AC/DC voltage, and AC/DC current and a way for adjustable DC voltage; the output loop with double overload protection with large output capacity ,small volume, light weight, high reliability ,It Suitable for field calibration and test for various relay.
2. single phase relay test equipment Features
2.1 Output a full isolation way for adjustable DC voltage, Automatic protection for short circuit, overload and out range.
2.2 Maximum Output Current:0~150A.
2.3 Equipped with LCD digital AC/DC volt-ampere meter, can show the AC and DC voltage and current values, stopwatch, potential, contact state.
2.4 Internal electric stopwatch; Available electrical contacts, maximum potential 250V; Dual channel measurement.
2.5 Light-weight design, small-volume, and fully-functional.
3. single phase relay test equipment technical parameter and functions
3.1 Rated input power: AC:220V±10%·1000VA·50Hz
3.2 AC Output
Range(A) | No-load Voltage (Minimum)V | Full-load Voltage ( (Minimum)V | Full-load Current (Maximum)A |
0~10 | 90 | 80 | 10 |
0~40 | 25 | 22 | 40 |
0~100 | 10 | 8 | 100 |
0~250(AC) | 250 | 240 | 3 |
0~300(DC) | 320 | 250 | 3 |
3.3 DC auxiliary Output
Range V | Voltage V | Maximum current A |
0~110 | 120 | 0.5 |
110~220 | 220 | 0.5 |
Stopwatch | Range: | 0.0000~999999S, |
Resolution: | 0.1mS, | |
Accuracy: | ±5 | |
With electrical contacts and potential input, the maximum input voltage: | DC 250V | |
Ammeter:
| Range: | internal: 0.000~150.0A; |
External: | 0.000~6.000A(AC or DC) | |
Accuracy: | 0.5%, | |
Measurement methods | AC: True RMS value DC: Average | |
Voltmeter:
| Range | 0.0~600.0V(AC OR DC); |
Accuracy | 0.5%, | |
Measurement methods: | AC: True RMS value DC: Average | |
Resistors and Capacitors | Resistance | 0.5 ohm to 2.5k ohm |
Capacitor | 10uF, maximum voltage AC 450V | |
Division / combination of auxiliary contacts | Maximum current: | 1A, |
Maximum voltage | AC250V or DC120V | |
Using Environment: | Temperature | -10 ~ 40 ℃ |
Relative humidity | must less than 80% | |
size | Volume | 320mm×260mm×230mm |
Weight | 16kg |
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
