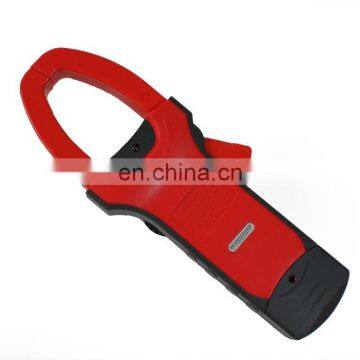

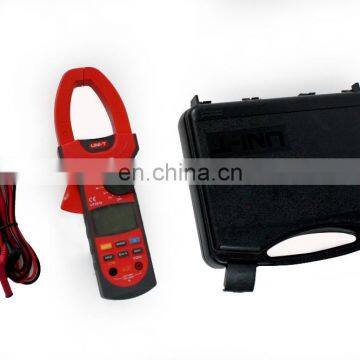

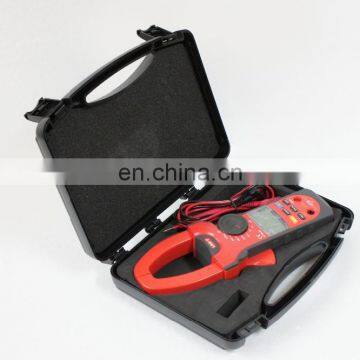

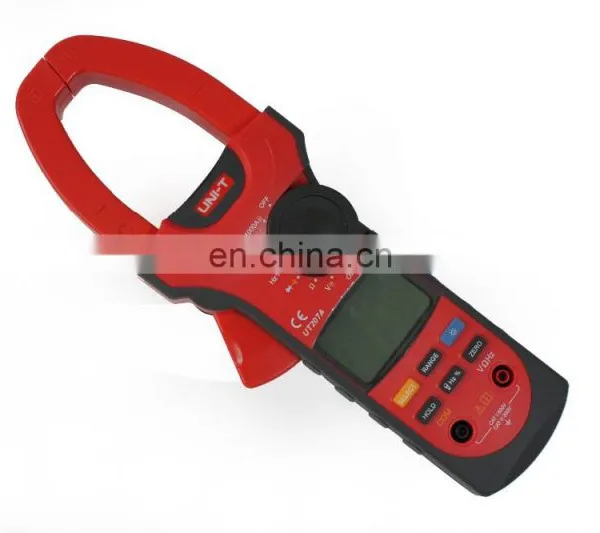

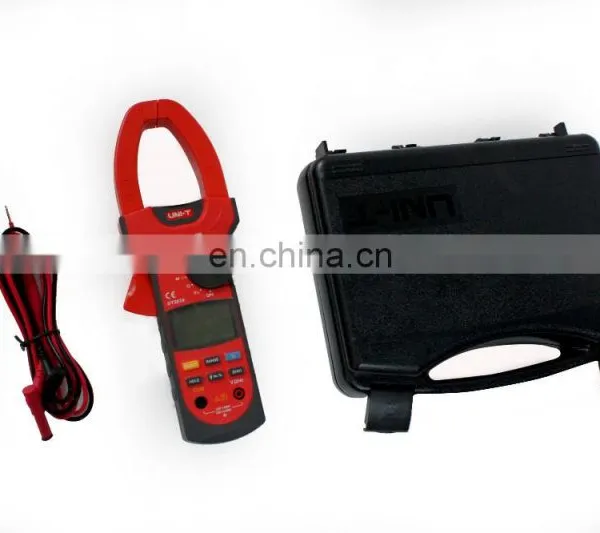

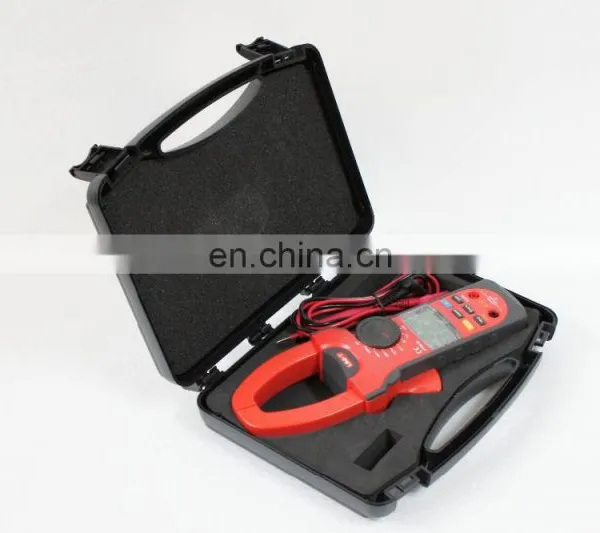

Uni-T UT207 AC DC Digital Clamp Meter 1000A
UNI-T UT207 AC DC Digital Clamp Meter 1000A
GENERAL CHARACTERISTICS
| Specifications | Range | Best Accuracy |
| Model | UT207 | |
| AC Current (A) | 66A/1000A | ±(2%+8) |
| DC Current (A) | 66A/1000A | ±(1.5%+8) |
| AC Voltage (V) | 6.6V/66V/600V | ±(1.2%+5) |
| DC Voltage (V) | 6.6V/66V/600V | ±(0.8%+1) |
| Resistance (Ω) | 600Ω/6.6KΩ/66KΩ/660KΩ/6.6MΩ/66MΩ | ±(1%+2) |
| Frequency (Hz) | 660Hz/6.6KHz/66KHz/660KHz/6.6MHz/66MHz | ±(1%+3) |
| Features | ||
| Display Count | 6600 | |
| Auto Range | √ | |
| Jaw Capacity | 55mm | |
| True RMS | AC Voltage | √ |
| Duty Cycle | 0.1%~99.9% | √ |
| Diode | √ | |
| Auto Power Off | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| MAX/MIN | √ | |
| LCD Backlight | √ | |
| Full Icon Display | √ | |
| Inrush Current | AC Current | √ |
| Input Impedance for DCV | Around 10MΩ | √ |
| General Characteristic | ||
| Power | 9V Alkaline Battery(6LF22) | |
| LCD Size | 47mm X 30 mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 533g | |
| Product Size | 286mm X 105mm X45mm | |
| Standard Accessories | Alkaline Battery, Test Lead, Tool Box | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 5 PCs | |
| Standard Carton Measurement | 480mm X 372mm X 315mm (0.056 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 11Kg | |
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
