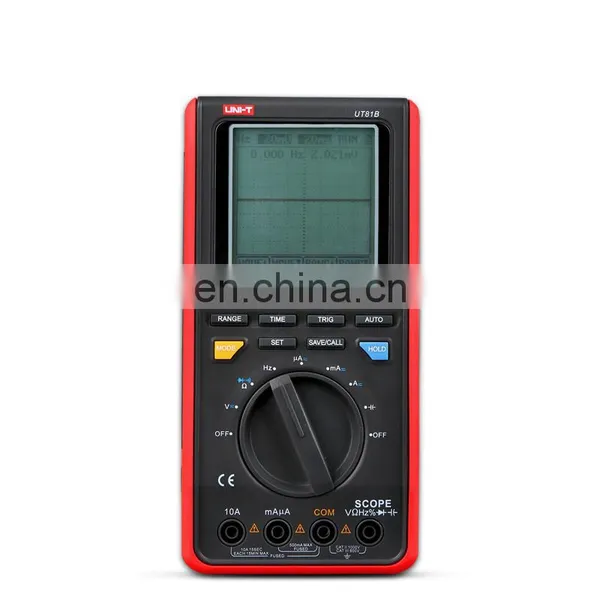

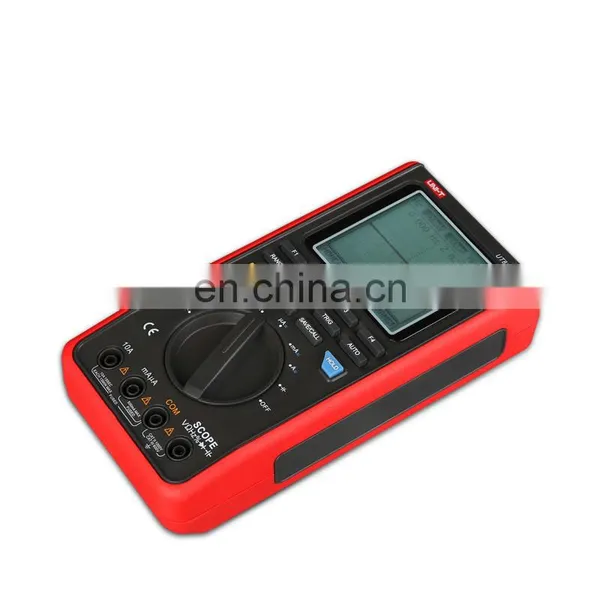

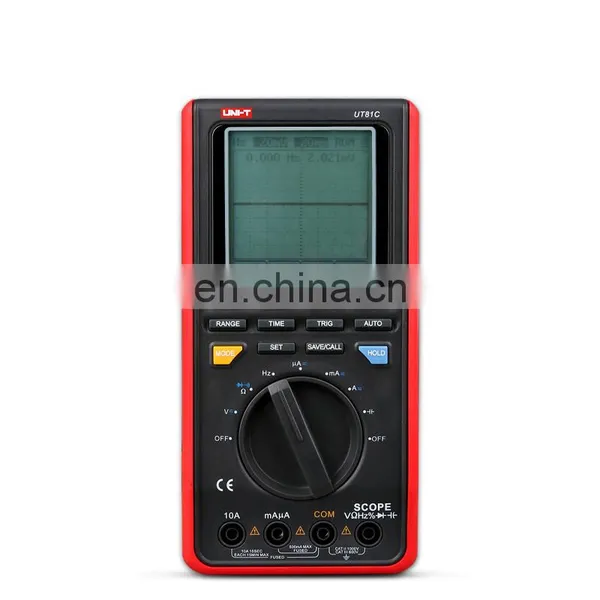

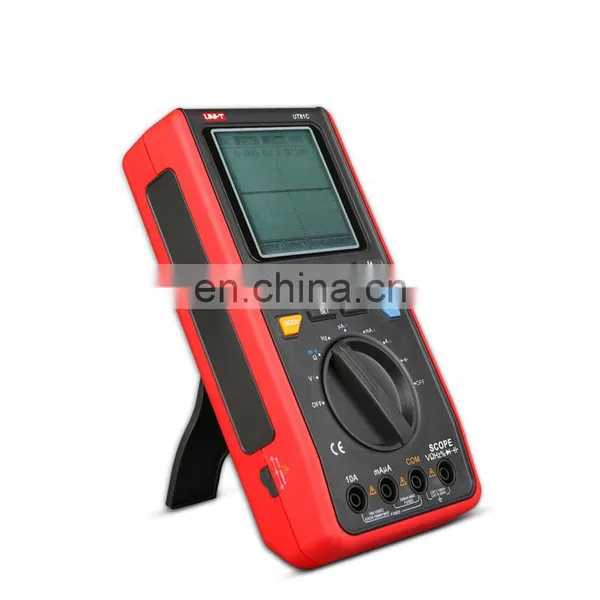

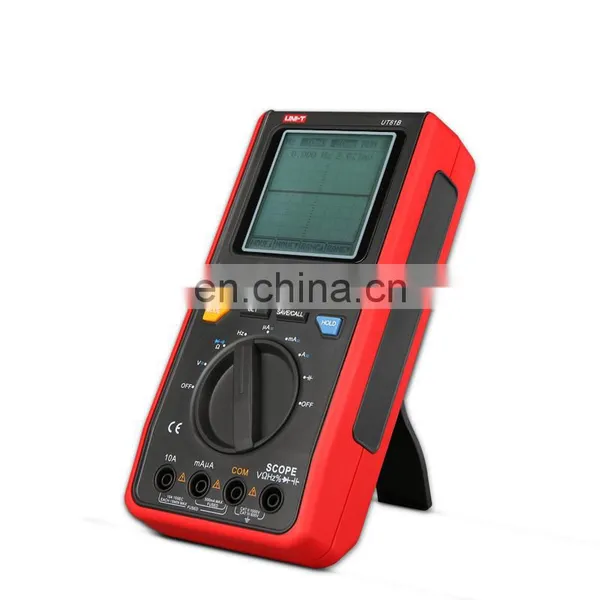

UNIT81B multimeters,Digital Multimeters UT81B Oscilloscope Multimeters
Scope Digital Multimeter UT81A/B (hereafter referred to as “the Meter”) is a 3999 counts and 3 3/4 digits
adopting digital control techique with both waveform and multimeter all in one. Scope mode is a complete intelligent measurement system including signal input, sampling, data process, auto search and waveform save and recall.
UNIT81B multimeters,Digital Multimeters UT81B Oscilloscope Multimeters parameter:
| Specifications | Range | Best Accuracy |
| Model | UT81B | |
| DMM Specifications | ||
| DC Voltage (V) | 400mV/4V/40V/400V/1000V | ±(0.8%+8) |
| AC Voltage (V) | 4V/40V/400V/750V | ±(1%+15) |
| DC Current (A) | 400μA/4000μA/40mA/400mA/4A/10A | ±(1%+8) |
| AC Current (A) | 400μA/4000μA/40mA/400mA/4A/10A | ±(1.5%+8) |
| Resistance (Ω) | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ | ±(1%+5) |
| Capacitance (F) | 40nF/400nF/4μF/40μF/100μF | ±(3%+8) |
| Frequency (Hz) | 10Hz-10MHz | ±(0.1%+3) |
| Scope Specification | Range | Best Accuracy |
| Bandwidth | 8MHz | |
| Real-Time Sample Rate | Constant sampling rate (peak sampling) | 40MS/s |
| Vertical Accuracy | ±(5%+1) | |
| Input Sensitivity | 20mV/div - 500V/div(1-2-5) | √ |
| Horizontal Accuracy | ±(0.1%+1) | |
| Time-Base Range | 100ns/div - 5s/div(1-2-5) | √ |
| Features | ||
| Display Count | 3999 | |
| Auto Range | √ | |
| Duty Cycle | 0.1 ~ 99.9% | √ |
| Diode | √ | |
| Auto Power Off | Can set their own | √ |
| Continuity Buzzer | √ | |
| Display | 160 x 160 Monochrome | √ |
| Trigger Types | Free Run/Normal/Single Shot | √ |
| Memory | 10 screens and setups | √ |
| Contrast and Bright Setup | √ | |
| Low Battery Indication | √ | |
| USB Interface | √ | |
| LCD Backlight | √ | |
| Input Impedance for DCV | ≥10MΩ | √ |
| General Characteristic | ||
| Power | 1.5V Batteries(R6)X 4 | |
| LCD Size | 60mm X 60 mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 498g | |
| Product Size | 200mm X 100mm X 48 mm | |
| Standard Accessories | Batteries, Test Lead,Alligator Clip,USB Interface Cable,PC Software CD, BNC Probe | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 20 PCs | |
| Standard Carton Measurement | 490mm X 385mm X 510mm (0.096 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 24 Kg | |
| Optional Accessories | Scope Probe,AC Power Adaptor | |
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
