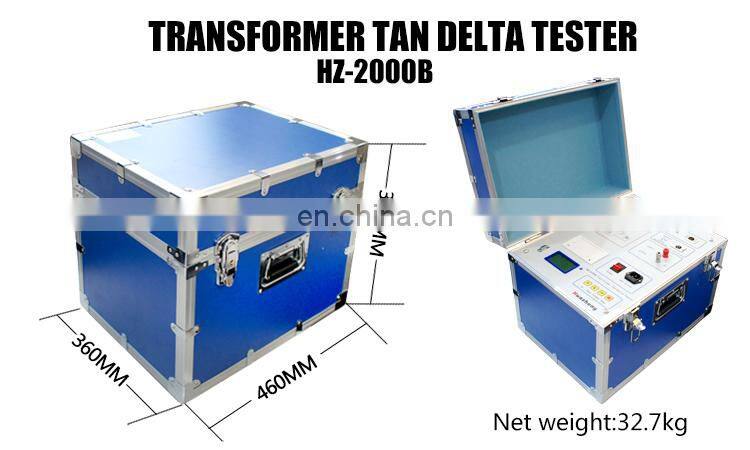

Laboratories equipment transformer Dielectric Loss Analyzer capacitance & tan delta tester
alli baba suppliers tan delta test kit pricer
Capacitance range: Internal HV: 3pF-60000pF/10kV 60pF-1μF/0.5kV
External HV: 3pF-1.5μF/10kV 60pF-30μF/0
Resolution: Maximum 0.001pF, 4 valid figures.
tgδ range:unlimited, 0.001% resolution, automatic identification for capacitance, inductance and resistance of three tested articles.
Test current range: 10μA-1A
Internal HV: Set voltage range: 0.5-10kV
Maximum output current: 200mA
Buck-bust method: continuous stepless regulation
Test frequency: 45, 50, 55 single frequency 45/55Hz automatic dual variable frequency
External HV: In case of UST, maximum test current is 1A, and power frequency or variable frequency is 40-70Hz
In case of GST, maximum test current is 10kV/1A, and power frequency or variable frequency is 40-70Hz
CVT self-exciting low voltage output: Output voltage 3-50V, output current 3-30A
Measuring duration: About 40s, depending on measuring method
Input power supply: 180V-270VAC, 50Hz/60Hz±1%, supplied by alternating current or generator
Computer interface: Standard RS232 interface
Printer: WH-A7 mini-type thermal printer
Environment temperature: -10℃-50℃
Relative humidity: <90%
Overall dimension:460×360×350mm
Weight:28kg
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
